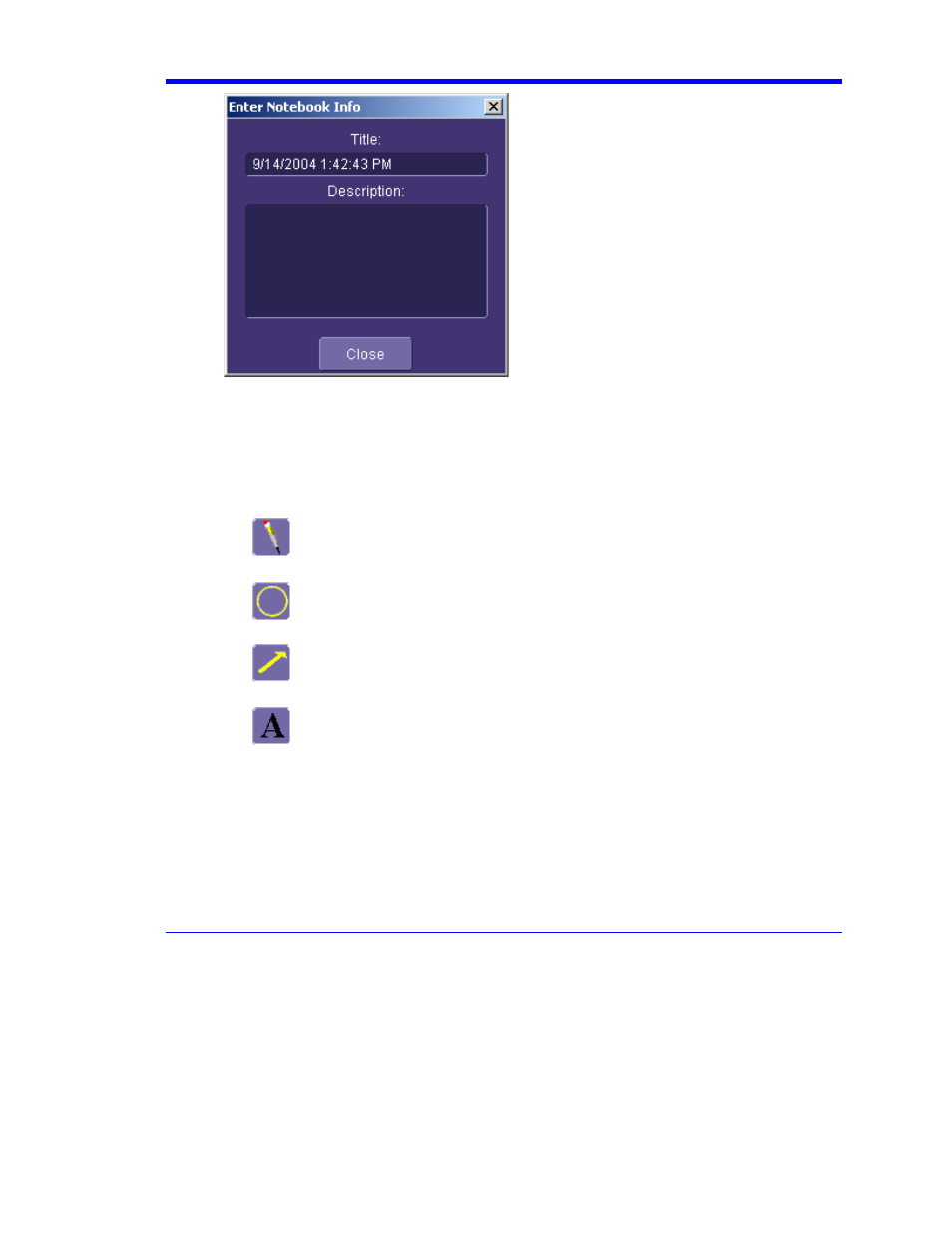

2. Touch inside the Title field and enter a title, using the pop-up keyboard. Then touch inside
the Description field and enter a description, if desired, and touch Close.
3. The notebook entry will display your waveforms in "print colors," that is, on a white
background to save printer ink, if you selected that option in notebook Preferences.
Otherwise, the waveforms will appear on a black background. A drawing toolbar appears
at top:
The pen tool enables you to write or draw in freehand. You can use a mouse, or
a stylus to do this using the touch screen. Once you click off, you can drag your
note anywhere on your waveform.
The circle tool enables you to create a circle around a waveform feature that you
want to point out. Once you click off, the circle is drawn and you can drag it
anywhere on the screen.
The arrow tool enables you to draw lines with arrowheads for callouts. You can
rotate these lines through 360 degrees and drag them to any location on the
screen.
The text tool enables you to enter text callouts on your report. When you touch
this tool, a dialog box opens in which to enter text by means of a pop-up
keyboard.
