Teledyne LeCroy WaveExpert 100H Operators Manual - Manual (Page 329)

Wave Expert
WE-OM-E Rev A
327

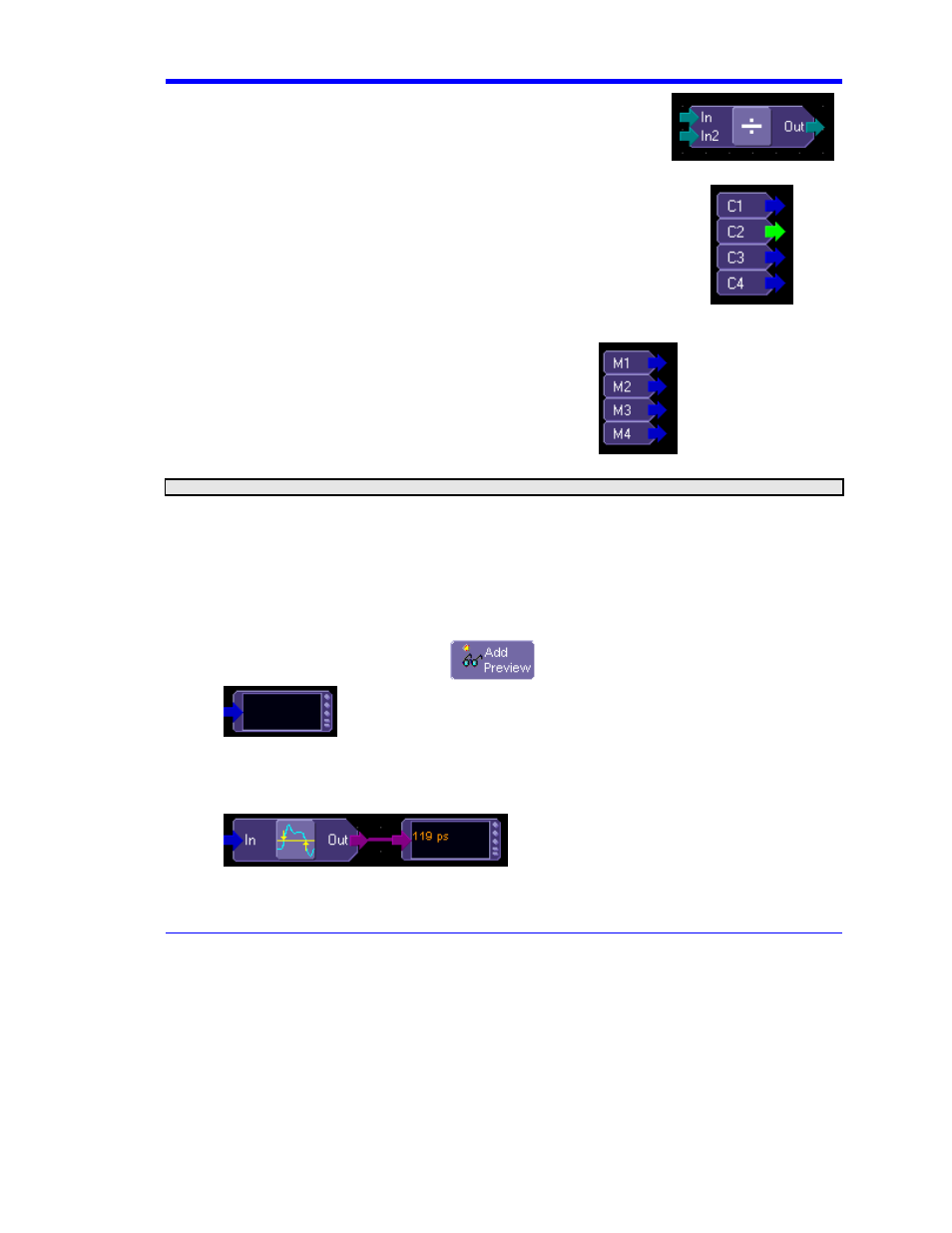

menu. The math function icon will appear on the web setup field: .
Touch and drag the icon to the desired location.
6. If you are using channel inputs, touch the arrow of a channel input icon . Then
drag a line from the channel to the input of the math function icon. If your math function is a
dual input function (such as ratio), select a second input and drag another line to the
second math input. If you are using a memory location (M1 to M4) as an input,
drag a line to the math function in the same way as for channel inputs.
Note: You can use a combination of channel input and memory input to your math function.
6. Touch the output arrow of the math function icon and drag a line to the Fx output on the
right-hand side of the setup field. Your math function is complete.
Adding Parameters
Add parameter measurements in the same way as for math functions. Parameters can be
connected to any math function in the web.
Adding Previews
1. Touch the Add Preview button: . A scope-like icon will appear:
.
2. Touch the output arrow on the math function or parameter icon and drag a line to the input
arrow of the preview icon. A thumbnail view of your signal will appear if the preview icon is
connected to a channel output or math function output. If it is connected to a parameter
output, a numeric value of the last acquisition will be displayed:
.
