Operator’s Manual

WE-OM-E Rev A

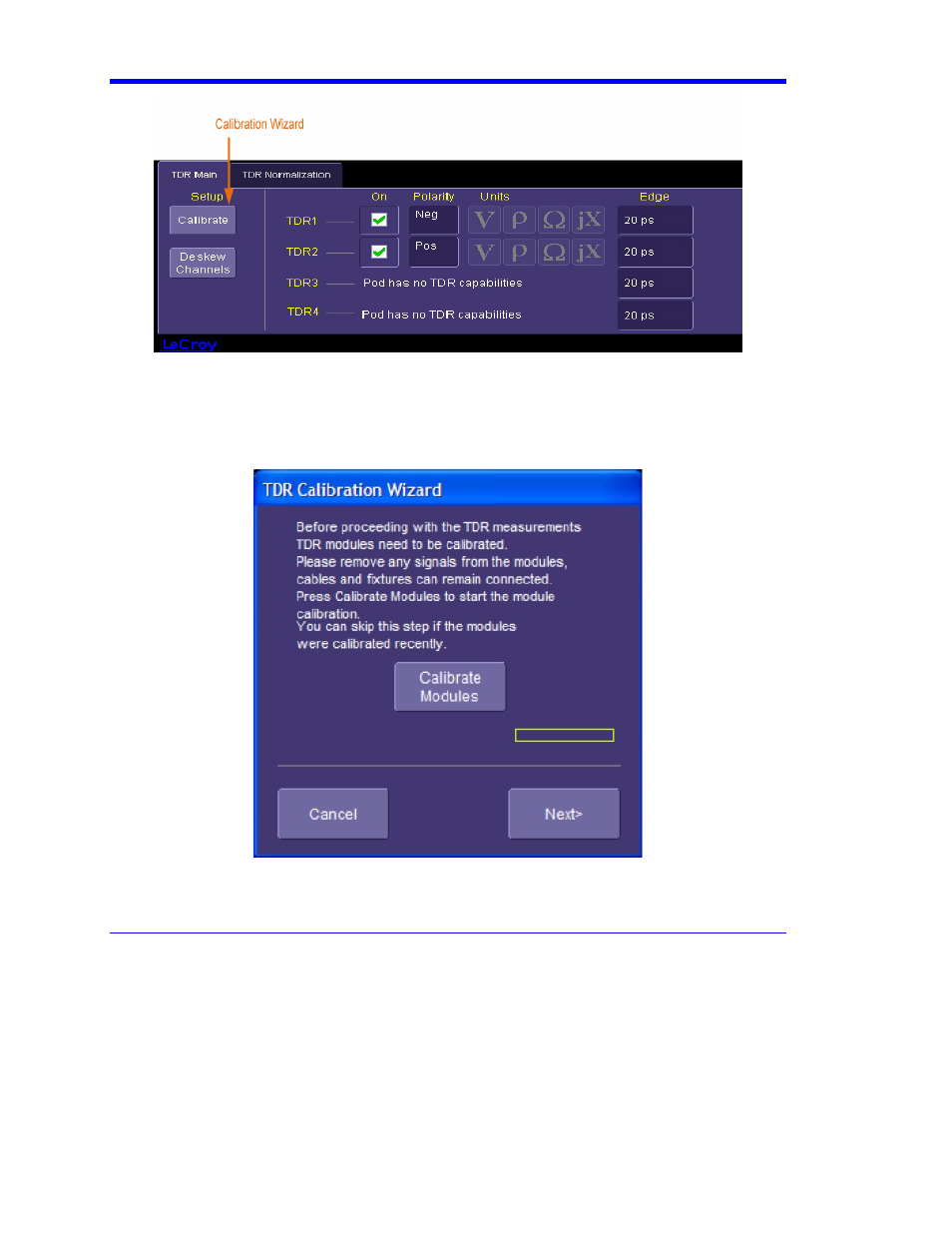

TDR Main dialog

2. The first step in the process is to calibrate the amplitude of the TDR modules. Be sure to

disconnect any signals (cables may remain in place) from the modules before you touch
Calibrate Modules. You may choose to skip this step if previously performed through the
channel menu.

3. Connect the DUT to the TDR modules, then touch Next>.

4. The calibration setup menu allows you to select the type of device (Single-ended or
