CAUTION
Use only the supplied SMA-SMA 12-inch (30.48-cm) cable to connect to the oscilloscope.
Led Indicators: LED indicators at the front illuminate for signal present and CDR lock.
Operation
1. Plug the CDR-E135 into any available slot in a WaveExpert mainframe. The mainframe
does not need to be powered down to have the module inserted; but, allow a few seconds
for the instrument to recognize the module.
2. Apply the signal under test to the clock recovery module, as shown:

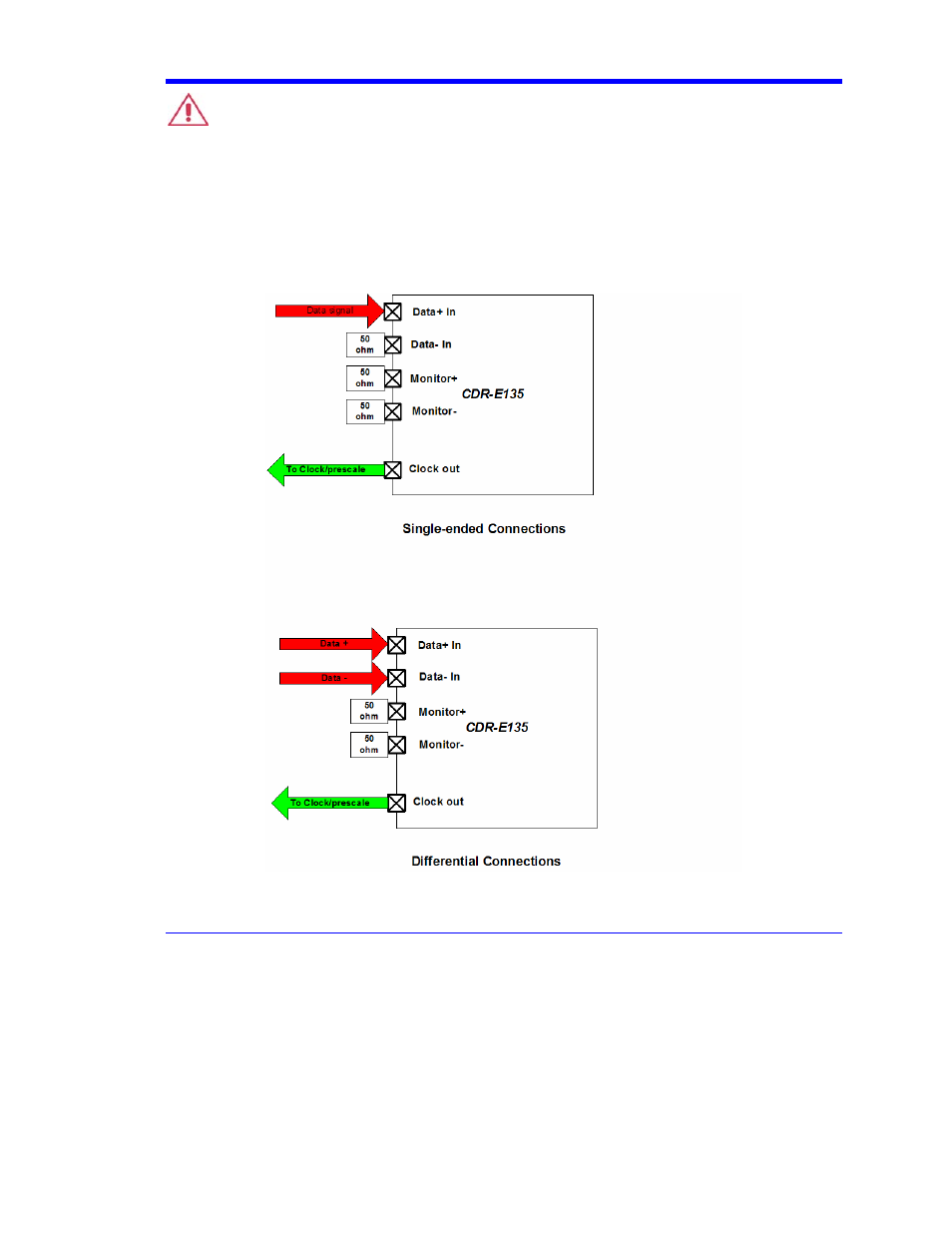

Signal connections to the CDR-E135
