Simple Excel Example 2

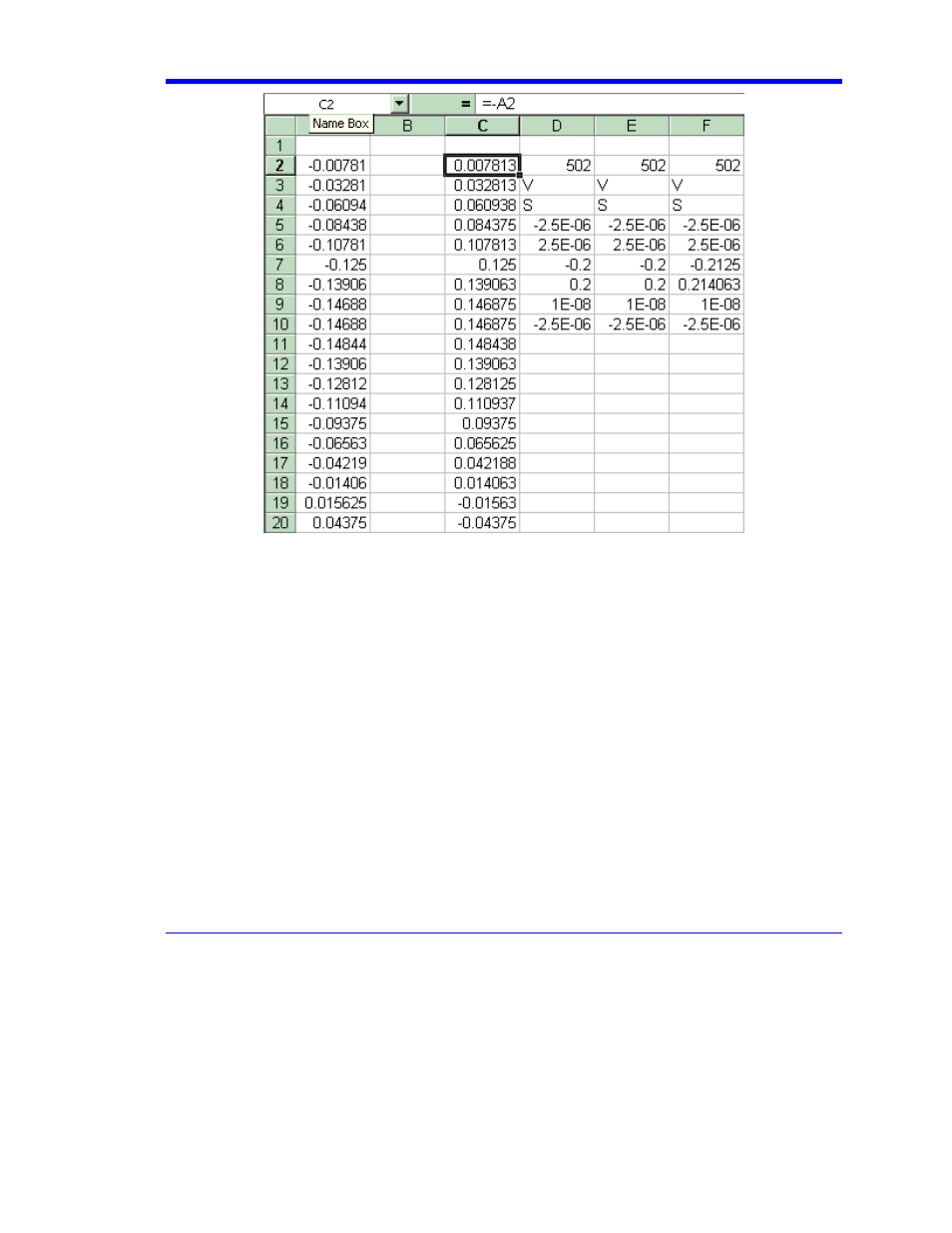

In this example we use Excel to invert or negate a waveform. The first figure shows a part of the
instrument screen. The upper trace (C1) is the original signal. The lower trace (F1) is the result
calculated in Excel and displayed on the screen.
