Page 92
Controller Power ON
Ready (301) ON
Program No. Input
External Start (000) Input
Selected Program No. will start.
Chapter 2. Operation
No
○○
Program No. will be displayed on the front panel of the
controller and the [AUTO] mode LED will light up.
Select Program No. from external unit, then input start signal.

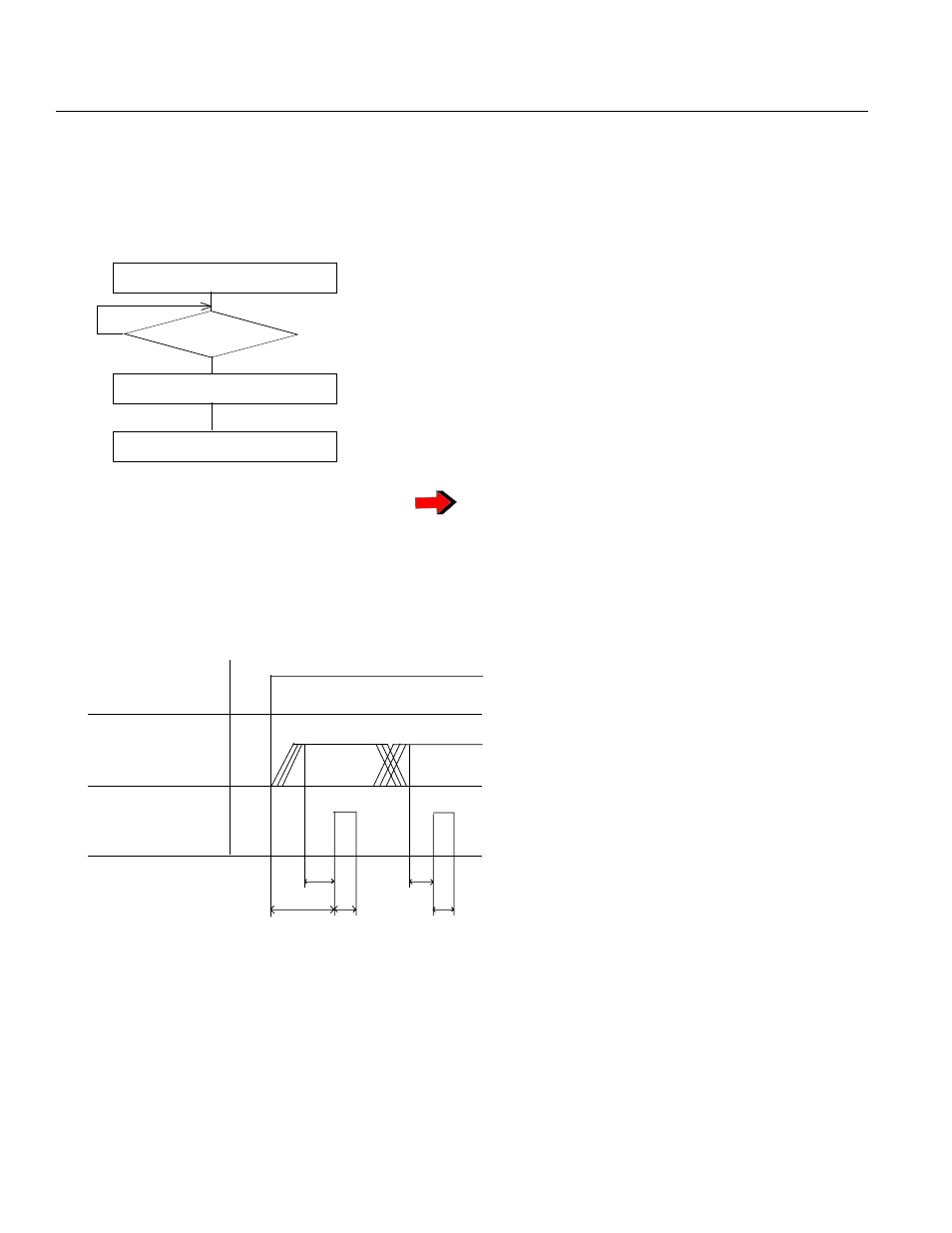

 Flow Chart
2. External Start Operating Mode
‚ Timing Chart
Program no.
input
Ready output
External start
input
Power on
T2 T2
T3 T1 T3
T1: Time from ready output ON to start input
Min. 30msec
T2: Time from program No. input to external
start input
Min. 30msec
T3: External start input
Min. 30msec
Yes Program No. can be input before the Ready prompt.
The BCD code is input at input signal numbers 8~14.
