Page 200
Chapter 4. Programming

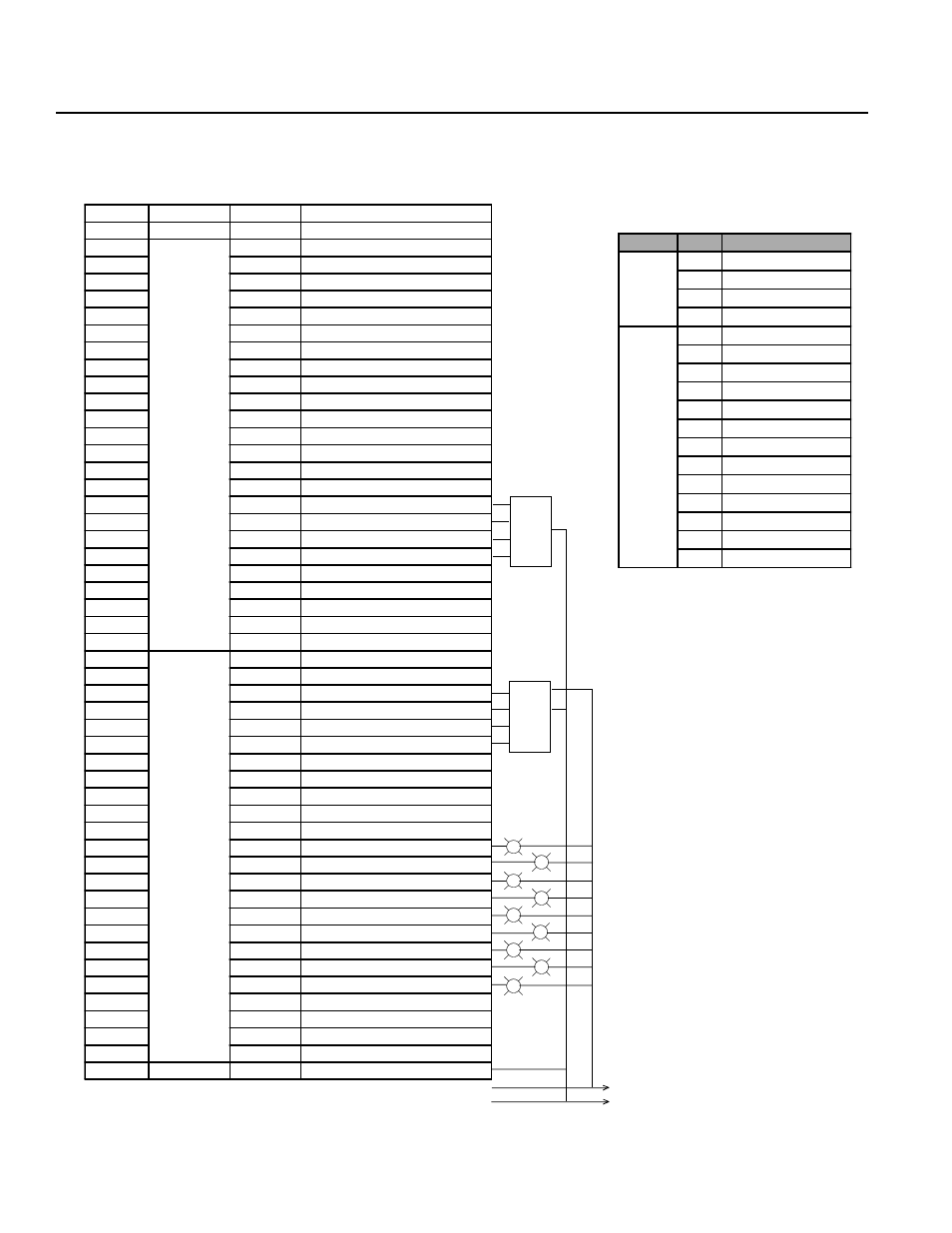

(2) I/O Connections
The following I/O connections are for external digital switches and the external display unit.
External 24V Power
P24
N24
Digital SW
7 Segment
1
2
4
8
1
2
4
8
C
+
-
I/O Assignment
Section I/O# Sgnals
Input
015 Digital Switch 1
016 Digital Switch 2
017 Digital Switch 4
018 Digital Switch 8
Output
302 7 Segment 1
303 7 Segment 2
304 7 Segment 4
305 7 Segment 8
311 External Display Light 1
312 External Display Light 2
313 External Display Light 3
314 External Display Light 4
315 External Display Light 5
316 External Display Light 6
317 External Display Light 7
318 External Display Light 8
319 External Display Light 9
Pin No. Category Port No. Function
1A P24 --- ---
1B
Input
000 External Start Input
2A 001 User Input
2B 002 Emergency Stop b Contact Input
3A 003 SystemReserve
3B 004 SystemReserve
4A 005 User Input
4B 006 User Input
5A 007 User Input
5B 008 PRG No. 1 (User Input)
6A 009 PRG No. 2 (User Input)
6B 010 PRG No. 4 (User Input)
7A 011 PRG No. 8 (User Input)
7B 012 PRG No. 10 (User Input)
8A 013 PRG No. 20 (User Input)
8B 014 PRG No. 40 (User Input)
9A 015 User Input
9B 016 User Input
10A 017 User Input
10B 018 User Input
11A 019 User Input
11B 030 User Input
12A 021 User Input
12B 022 User Input
13A 023 User Input
13B
Output
300 Emergency Stop/Alarm Output
14A 301 Ready Output
14B 302 User Output
15A 303 User Output
15B 304 User Output
16A 305 User Output
16B 306 User Output
17A 307 User Output
17B 308 User Output
18A 309 User Output
18B 310 User Output
19A 311 User Output
19B 312 User Output
20A 313 User Output
20B 314 User Output
21A 315 User Output
21B 316 User Output
22A 317 User Output
22B 318 User Output
23A 319 User Output
23B 320 User Output
24A 321 User Output
24B 322 User Output
25A 323 User Output
25B N24 --- ---
1
2
3
4
5
7
9
6
8
