Chapter 4. Programming
(2) Movement Description
1. X and Y-axis return to home and wait.
2. Worker sets work on X-Y-table, then turns start switch (SW) ON.
3. X-Y-table moves to position No.1 then outputs riveting command to the riveting unit.
4. After riveting is completed, wait for completion signal input. Repeat the same procedure for position No.2 and position
No.3.
5. After riveting at all three positions, axis returns to home.

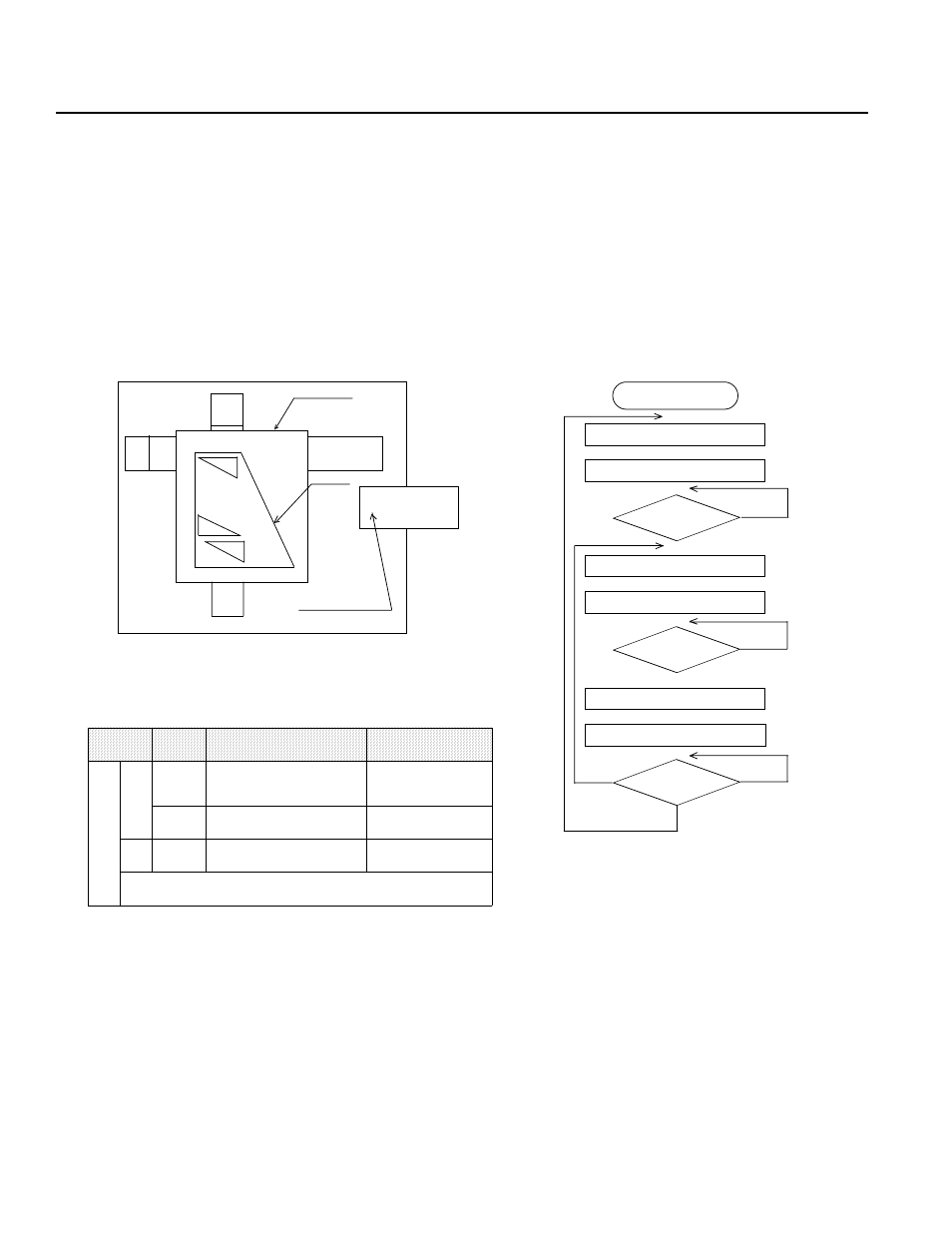

Repeat the same procedure as above. The operating position, external I/O assignment and flowchart are as follows.
