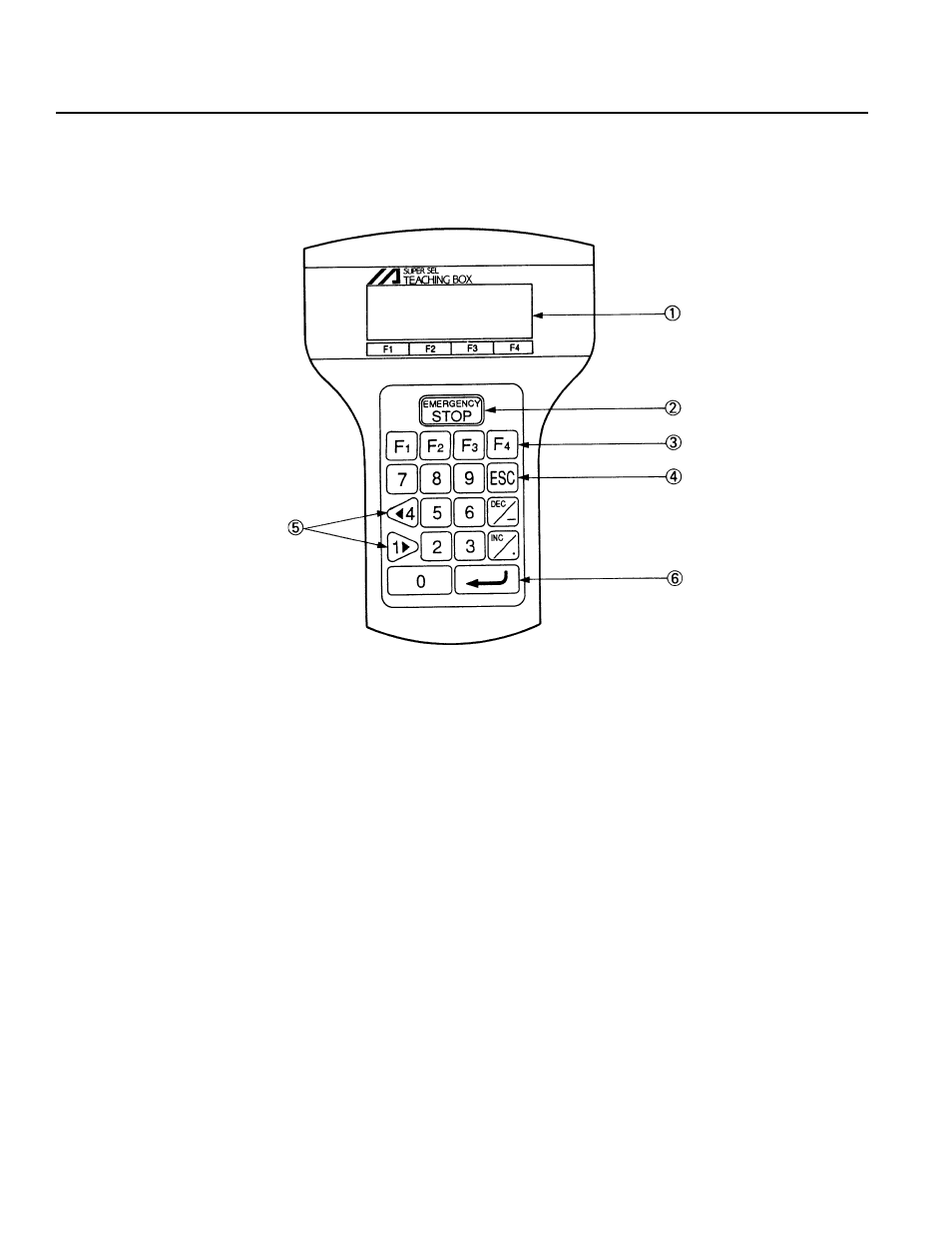

3. Teaching Pendant (Option)
Chapter 1. Setting Up

LCD Display
4 lines with a 20 character per line capacity display. Shows program and Motion status.
‚
Emergency Stop
When the emergency stop button is pressed, servos will disengage and all programmable outputs will be turned OFF.
To release the emergency stop, press Restart (F1) on the LCD Display.
ƒ
F1, F2, F3, F4 (Function Key)
Multi-function keys which correspond with the LCD Display.
„
ESC (Escape)
The escape key allows the operator to go backwards in one-step increments to previous displays to make corrections or
to switch to different modes.
= <
Dual function keys for use in data input and axis Jog functions.
† ↵ ↵ ↵ ↵ ↵
(Return Key)
Return key is used to change operations and to move the cursor position.
