Chapter 5.
Option
When input units are overlapping
Example

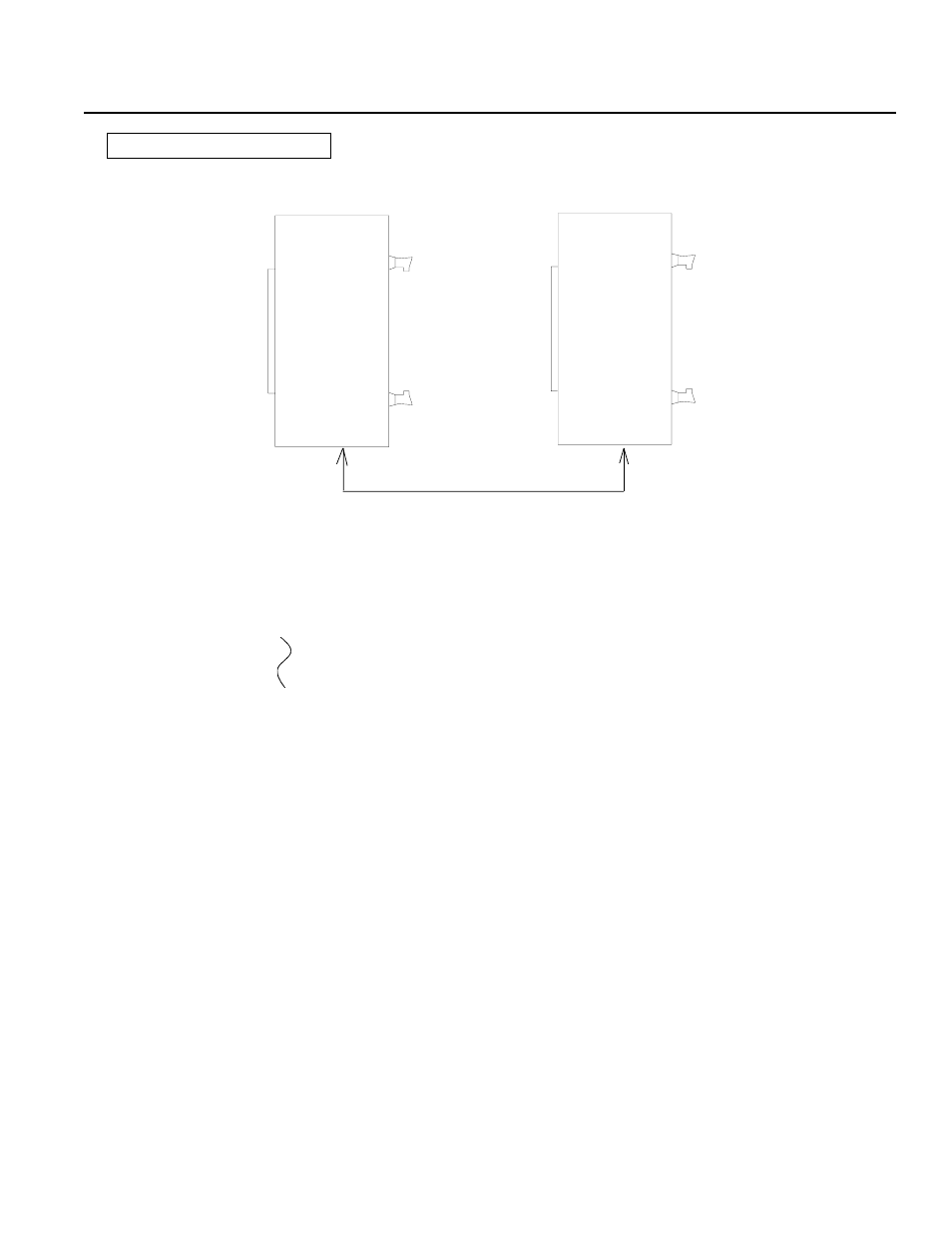

Input No. 32 ~ 55 are overlapping. In this case, the high speed
input unit goes into effect and the expansion I/O unit become invalid.
5)
Program Example
WTXX Command
WTON 10
Responds within the parameter scan time.
6)
Option
Please specify the following specifications at the time of order for this option so that the correct settings can be pre-set
prior to shipment:
1.
Number of H-104 units required
2.
Input port number assignments
3.
Scan time (1 ~ 9 msec) designations
Note:
The above settings must be done through the PC interface software (supported by Ver.2.0 or later). They
cannot be accomplished using the teaching pendant.
Expansion I/O unit
High speed input unit
Input No. 32
No. 55
Unit No.
Input No.
4
32~39
5
40~47
6
48~55
○○
○
○
