9.4.4 VDR Panel - Recorder WINDOW

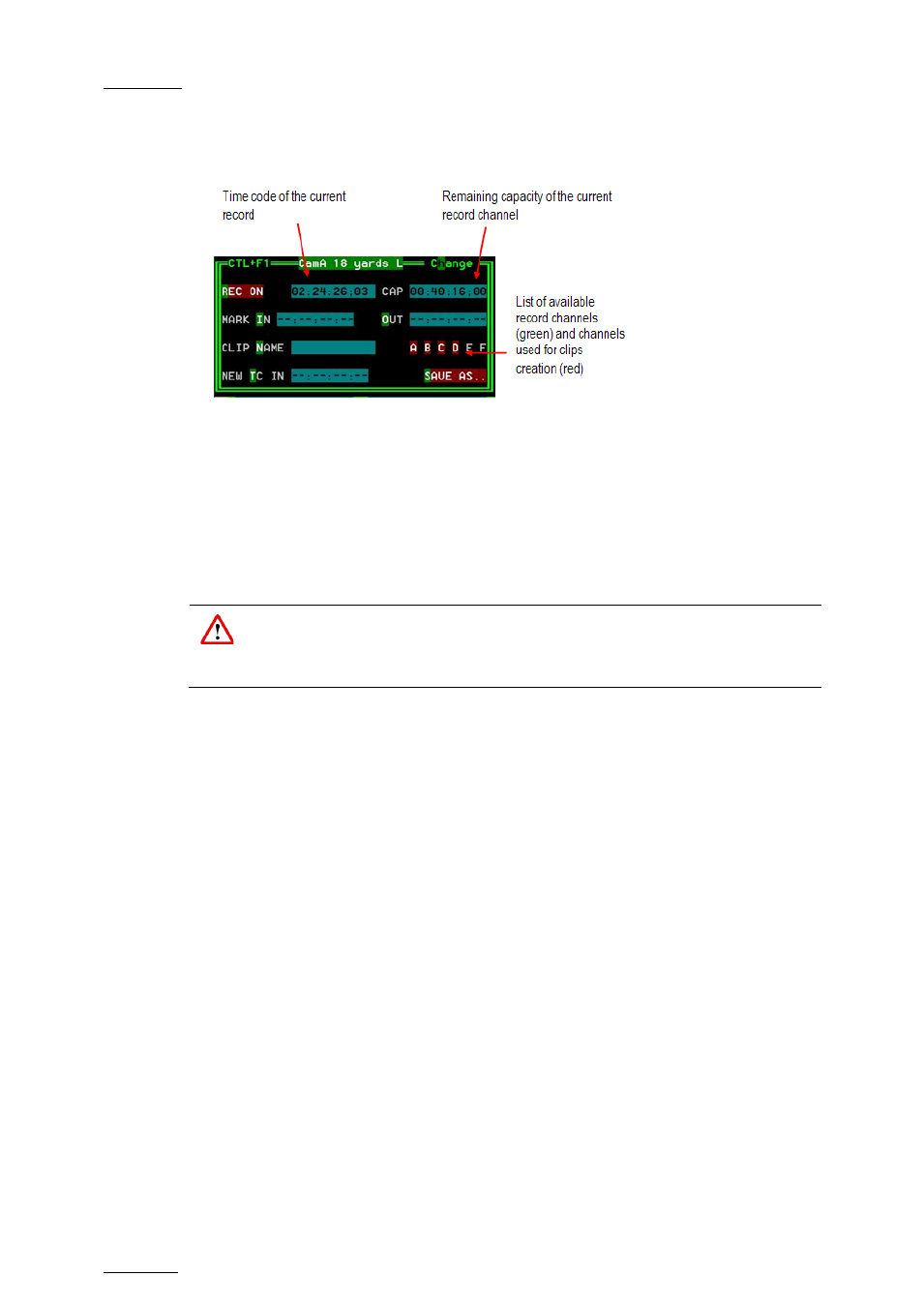

The VDR Panel Recorder can be used to start/stop the record, and to create clips from
the local record trains. For example, it allows the creation of clips on a server that has no
Play channel.
How to Start/Stop the Record
Press ALT+R to start or stop the record on the record channel assigned to the window.
No confirmation is required.
Important
In LSM mode, all recorders will be stopped at once to keep the synchronization
between all record channels.
How to Create a Clip with the VDR Panel
Recorder
To create a clip with the VDR Panel Recorder, proceed as follows:
1. Press ALT+I / ALT+O to mark a Short IN / Short OUT point on the last recorded
picture.
The timecode appears in the adjacent field, and the cursor is automatically placed on
that field to allow the operator to edit the timecode of the Short IN / Short OUT point if
desired. Press
ENTER to confirm or ESC to cancel.
2. Repeat this operation for the complementary Short IN / OUT point.
This is not mandatory. If only a Short IN or a Short OUT point is marked, the
Default
clip duration defined in the Operational Setup menu (p.2.2 F2) will be used to define
the missing point.
3. Select from which record train(s) the clip(s) must be created: press
ALT+the letter
(A/B/C/D/E/F) of a record train to select / de-select it.
Letters highlighted in RED means that a clip will be created from the corresponding
record train; letters highlighted in green means that the corresponding record train is
available but will not be used to create a clip.
4. Define the name of the clip before saving it: press ALT+N, type the desired name and
validate with
ENTER.
