Issue
11.01.D
Multicam - Version 11.01 – Operating Manual
EVS Broadcast Equipment SA – November 2012
24

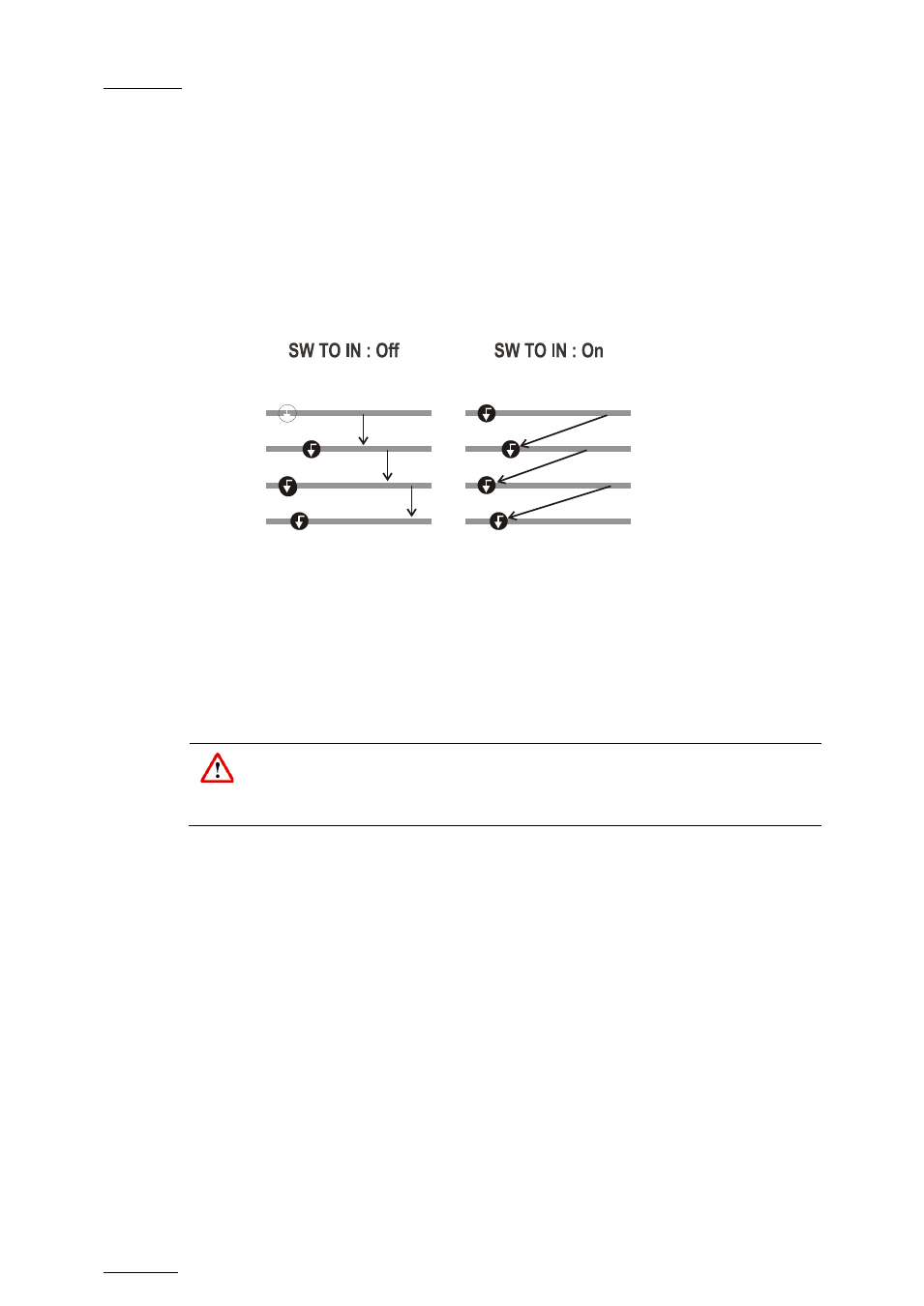

5.4 Synchronization Mode (Switch To In)
If the synchronization mode is OFF (
SW to IN is not highlighted in the secondary menu),
a request for camera change will produce a jump at the same timecode on the requested
camera. This mode allows synchronous change of camera angle.
If the synchronization mode is ON, a request for a camera change (by pressing CAM A,
CAM B, CAM C or CAM D in the Multicam menu) will lead to a jump to a predefined CUE
IN point.
If a CUE IN point has not been previously defined, Multicam acts as in SW to IN OFF
mode (even if SW to IN ON is shown) because the system has no reference to jump to.
5.5 Definition of Controlled and Primary
Channels
Important
The notions of Primary Channel and Controlled Channel are very important and
will be constantly referred to in this manual.
5.5.1 Controlled Channel
A channel is “controlled” when the operator can control it with the jog dial. In this case,
the words “FULL CTRL” are present on the top of the OSD of the output monitor of that
channel.
Cue In1
Clip B
Clip A
Clip C
Clip D
Cue In2
Cue In3
Cue In4
Cue In1
Cue In2
Cue In3
Cue In4
