Possible Transition Effects
The following video transition effects can be defined. By default, the audio transition is
always a mix when the split audio mode is disabled.
Effect Type Description
Cut No transition effect is applied between both elements.
Mix Dissolve effect between both elements.
Wipe The last frame of the previous element is gradually replaced by the first
frames of the next element.
The wipe effect is shown as a vertical line moving across the video. The
direction of the wipe effect (left to right, right to left) is defined in the
Wipe type parameter in the Operational Setup menu (p.3.1 F4).
Fade from
color (<)
A fade out effect from a defined color is applied on the first frame of the
clip (on which the effect is defined). The previous clip ends in cut mode.

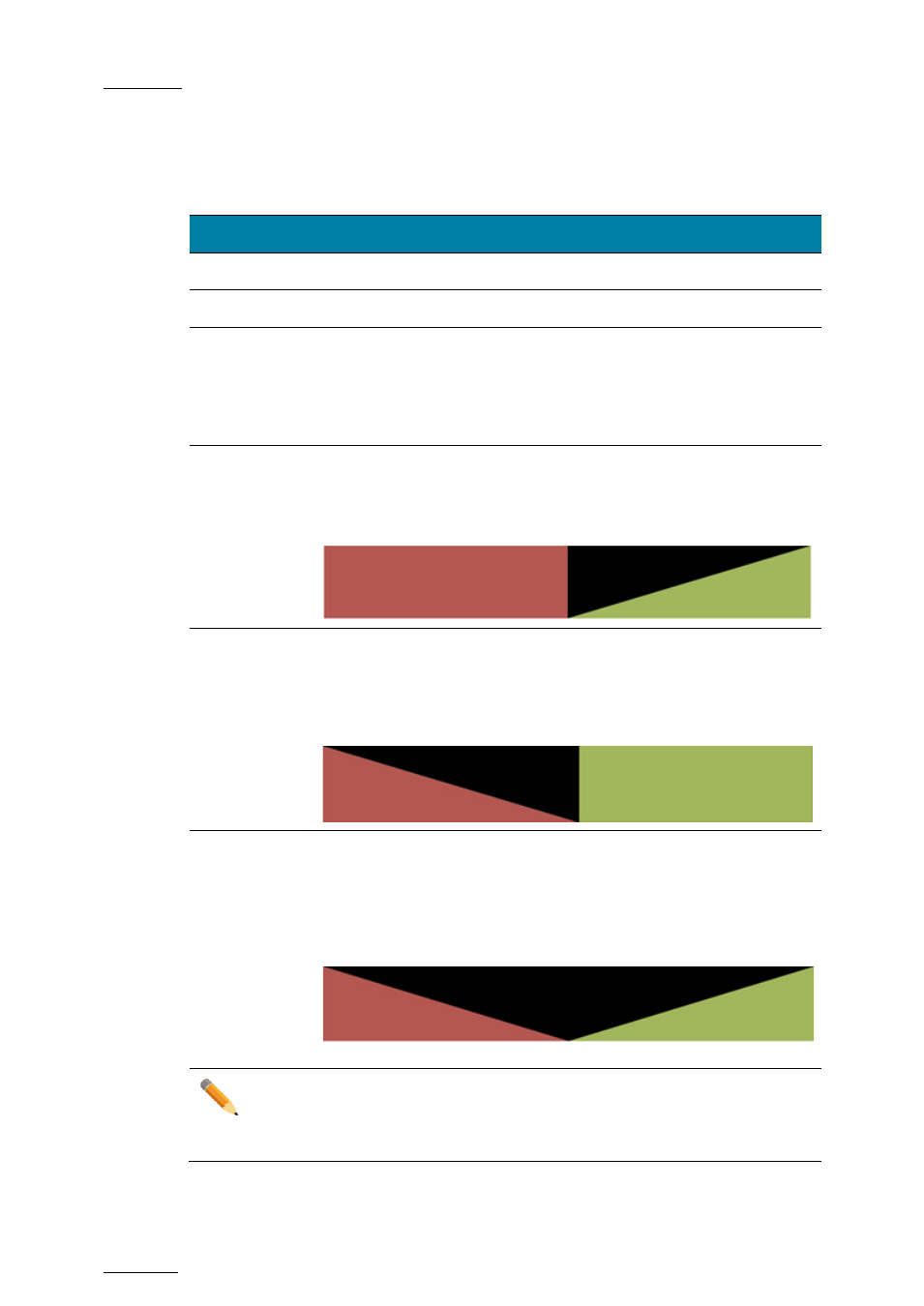

In the drawing below, the previous clip is displayed in red, the next clip
is green, and the fade in black:
Fade to color
(>)
A fade in effect to a defined color is applied on the previous clip up to
the transition in cut mode to the next clip (on which the effect is
defined).
In the drawing below, the previous clip is displayed in red, the next clip
is green, and the fade in black:
Fade to/from
color (V fade)
A fade in effect to a defined color is applied on the previous clip up to its
OUT point and a fade out effect from the same color is applied on the
next clip (on which the effect is defined) from its IN point. The effect
duration must be a multiple of 2 frames.
In the drawing below, the previous clip is displayed in red, the next clip
is green, and the fade in black:
Note
The color of the fade effects is defined with the
Fade to/from colour parameter
in the Playlist settings of the Operational Setup menu (p.3.3 F1).
