Multicam - Version 11.01 – Operating Manual

EVS Broadcast Equipment SA – November 2012

Issue

11.01.D

31

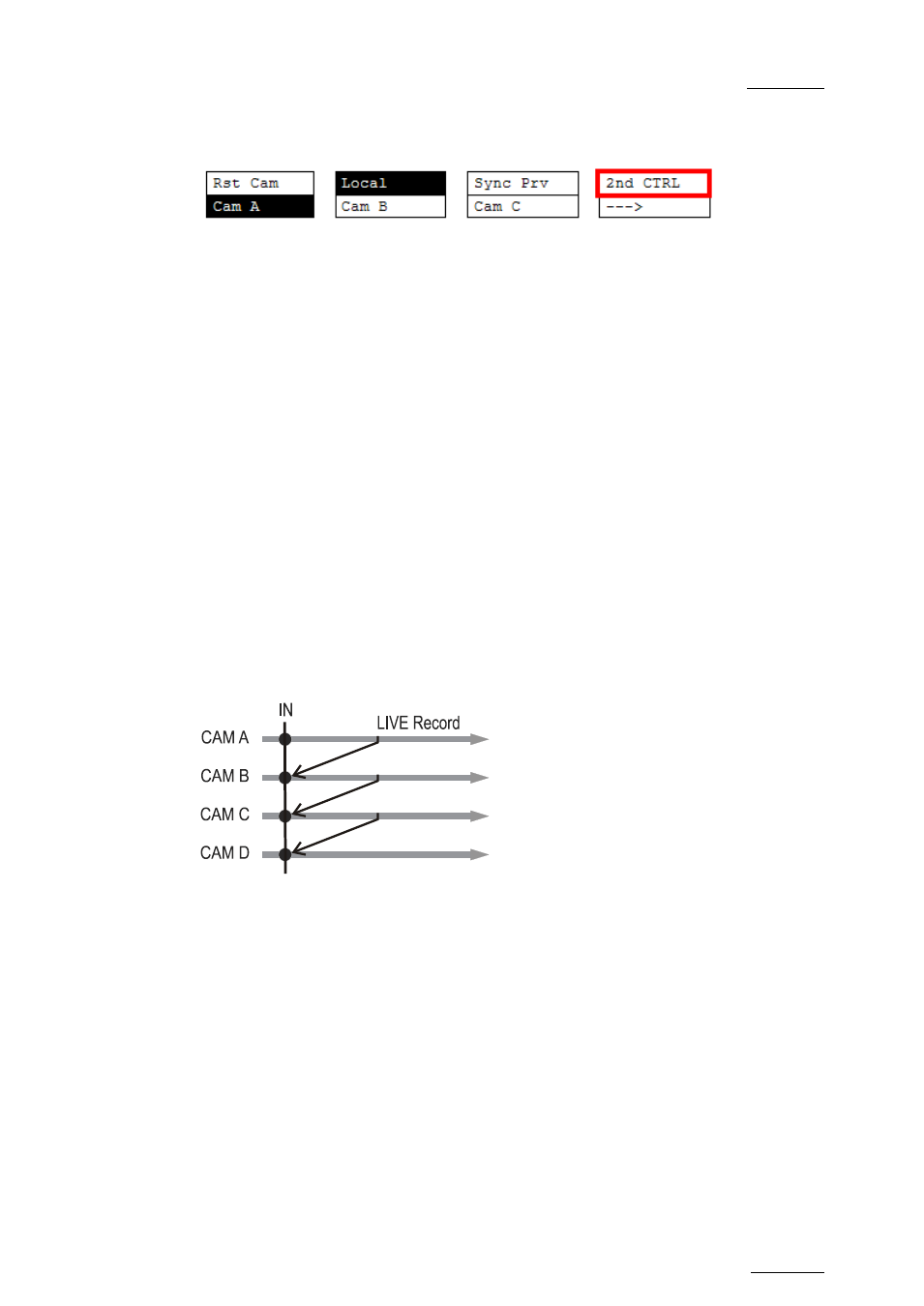

2nd CTRL

This function allows the operator to swap the control of one or several play channels

between the EVS Remote Panel and a third-party controller. Both controllers receive

permanently the status of the channel(s), but only one controller at a time is able to

actually control a channel. The secondary controllers are defined in page T2.2 of the

Technical Setup menu.
Press this function to enter the 2nd CTRL menu, select the channels that you want to

pass to the secondary controller by pressing the corresponding

A or B key, then press D

(DONE) to validate your selection. Do the same to bring the control of a channel back to

the EVS remote.

6.2 Full Control and Lever Control

Controlling both PGM and PRV is done when PRV CTL (direct access key from the

remote) is not activated.
Once selecting PRV CTL, the operator will have control of the PRV with the jog dial and

most buttons, while the lever and the

Play button will control the PGM output. At this

point, selecting clips will call them up on the PRV side.
The combination of the PRV CTL and the SW to IN functions allows the operator to auto-

chain cameras from the same IN point.


When an IN point has been marked, the operator activates the

PRV CTL and sets ON the

SW to IN option. Then the slow motion of one camera can be started from this IN point.

The operator selects another camera in the PRV output and, via the

TAKE button, can

auto-chain cameras from the same IN point on the PGM output.
