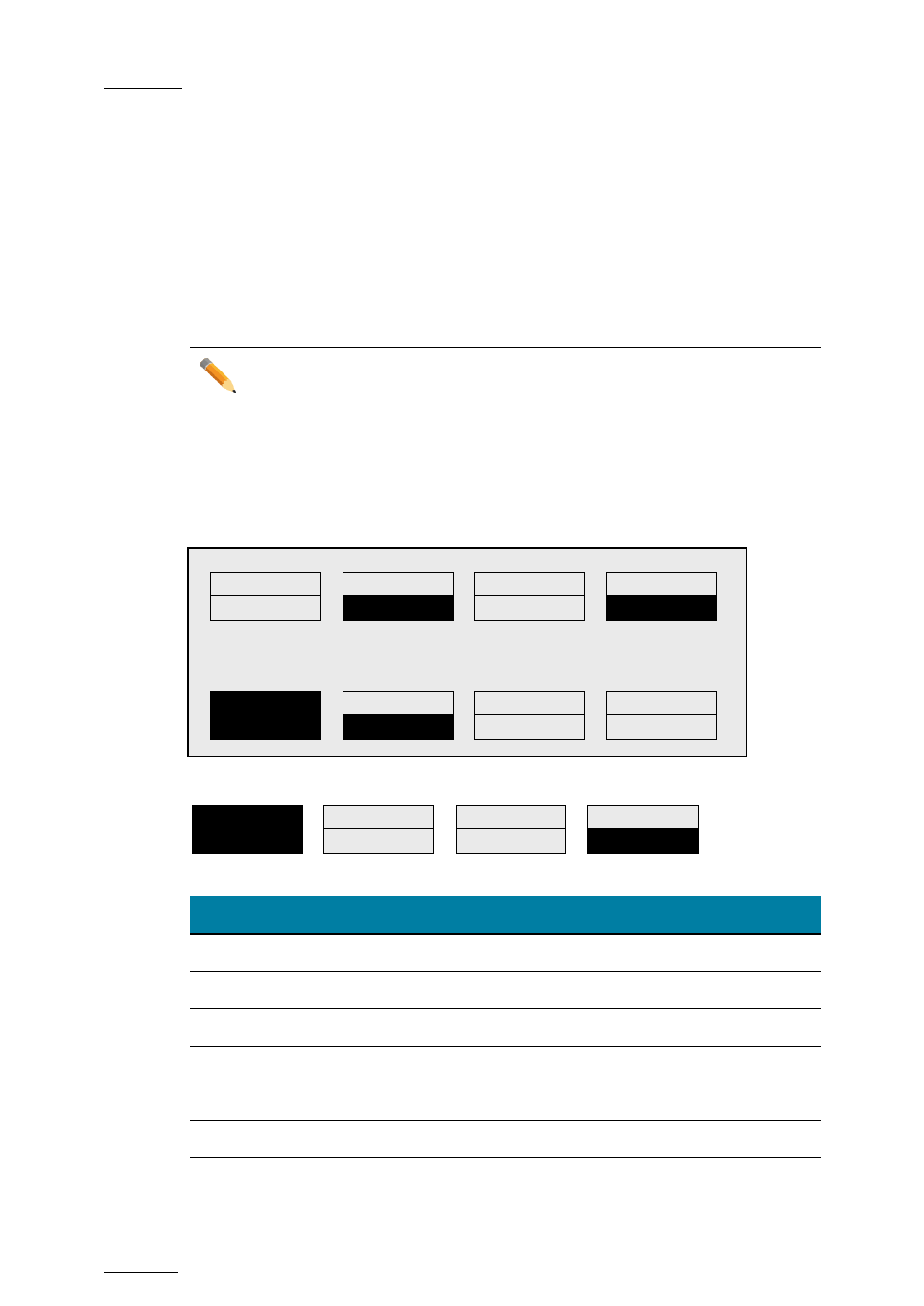

PGM1 CAM A *PGM2* CAM B
Aud.Met. PgmSpd Sort->TC PostRoll
Sw to IN Search Pref
P.1 B.1 Clips: LOCAL Records: LOCAL
PL 11: <
Msg:
V Split Swap Sync
Left Right L & R SHIFT
17. Split Screen Mode
The Split Screen mode, which is a software option, allows a simple split screen effect on
PGM 1. This mode operates very similarly to the 2PGM mode, except that the two
outputs are now left and right parts of the screen (vertical split screen) or top and bottom
part of the screen (horizontal split screen) or mixed together on the entire screen (Split
Mix mode). The Split mode also allows for DVE-like adjustment of the video within the
split effect, for optimum positioning of the material.
Note
The horizontal Split Screen mode is not available in HD Supermotion 3x in
DVCPro HD and MPEG 2 i-frame 1080i.
17.1.1 Vertical Split
Press the
SHIFT key (D) to switch between normal and special commands:
Command Description
LEFT To control the left part of the monitor
RIGHT To control the right part of the monitor
L & R To control both sides together
SHIFT Access / Exit special commands
 LF  To centre the left picture
 RG  To centre the right picture
 WP  To move the separation line
V Split Swap Sync
<-Lf-> <-Rg-> <-WP-> SHIFT
