Chapter 1 Installing the M-Series iVDR
4. Make selections as follows:
• Analog — records the analog audio connected to the record channel’s analog
audio input.
• AES — records the AES/EBU digital audio connected to the record channel’s
AES/EBU audio input.

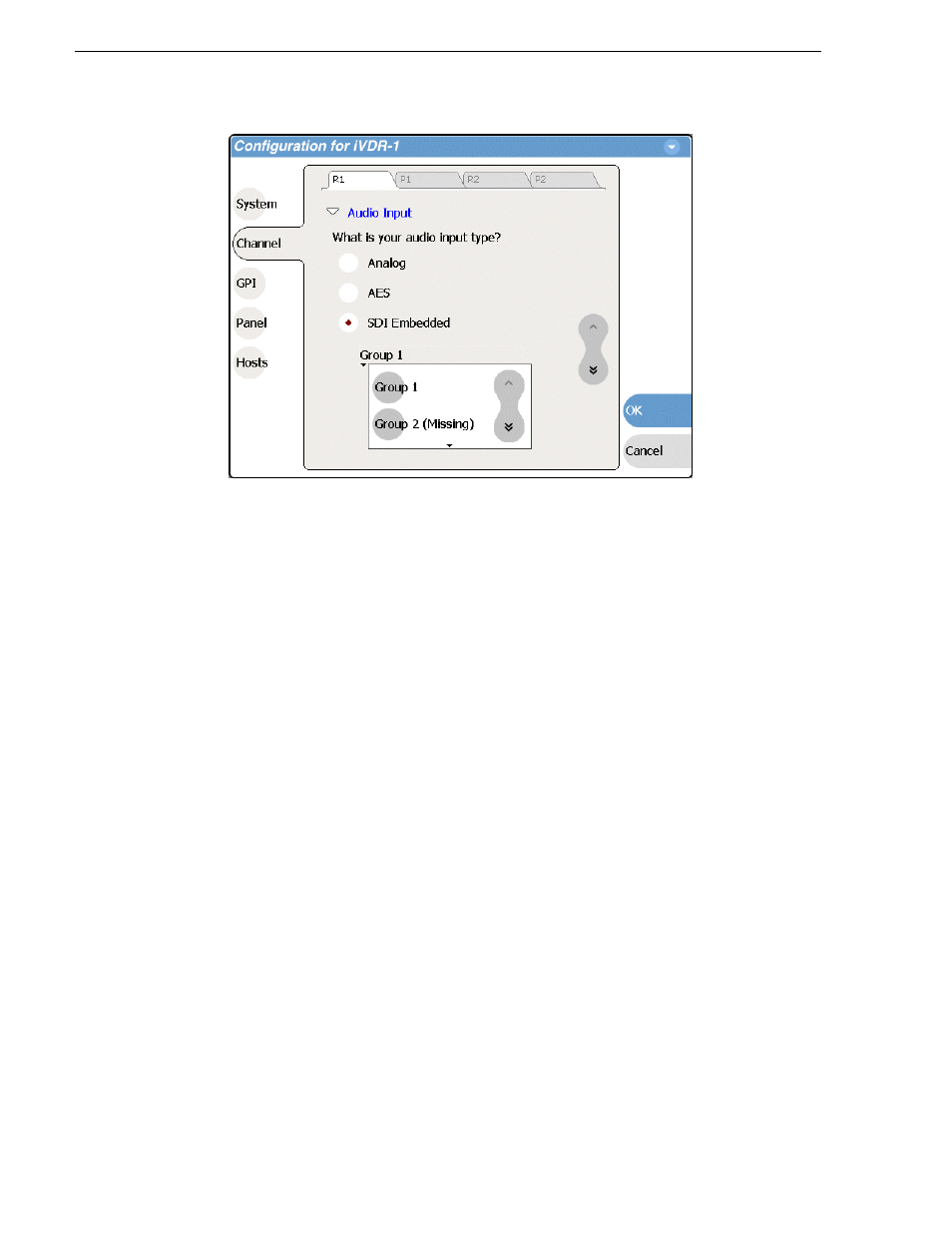

• SDI Embedded — records the embedded audio signal on the Record channel’s
SDI input. When you select SDI Embedded, you must also select an embedded
audio group, 1 through 4, as shown in the diagram.
A warning message is displayed when no signal is detected for the audio input you
select.
NOTE: Audio is output simultaneously on all audio outputs. When using embedded
audio, you must ensure that the correct embedded audio group is selected for each
play channel. You can disable embedded audio output, if needed.
See “Configuring
SDI output embedded audio” on page 120 .
Select timecode source
The timecode source for each record channel is selected in the Recorder application
running on the channel. Refer to
“Changing the timecode source” on page 152 .
Verifying basic operation
Record and play a short clip to confirm that your connections and system setup are
correct.
Refer to the Chapter 2, Quick Start Procedures for record and play procedures.
