132 M-Series User Manual 20 April 2005
Chapter 5 Using the Monitor Pane
Monitor pane overview
The Monitor pane allows you to monitor channel status and the video and audio on
the record and play channels. It also allows you to launch control applications, such
as Recorder, Player, and Playlist on the channels. The Monitor pane has two display
modes: split-screen and full screen.
• To view the monitor pane, press Monitor in the AppCenter toolbar.

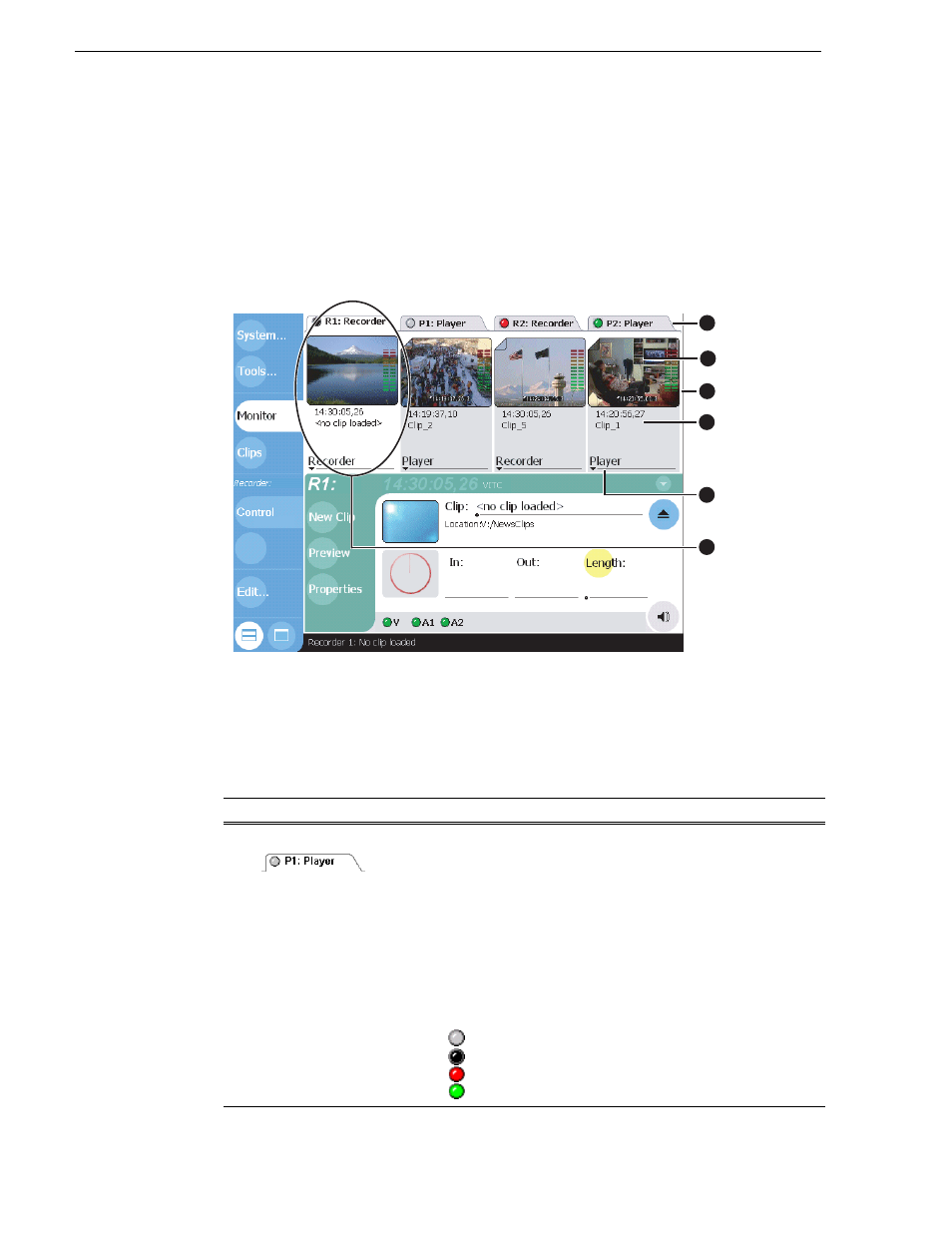

The Monitor pane is composed of four channel monitors, which represent the two
record channels and the two play channels. The channels are named R1, P1, R2, P2.
The selected channel monitor is highlighted, which indicates the active channel. In
split-screen, the four channels are displayed side by side in the upper pane. The
following table describes the controls and indicators used in the Monitor pane.
Control or Indicator Description and User Operation
! Channel Tab Channel tabs are always displayed in the upper pane, even when the pane
is switched to the Clips pane. This allows quickly switching to the
desired channels. The tab labels always display channel names (R1, P1,
R2, P2). In addition, the tab can display one of the following:
- Current Application Name
- Current Asset Name
- Current Timecode
- Countdown Timecode:
To change the channel tab label, refer to “Configuring the Monitor pane
display” on page 124 .
The color of the LED beside the channel name indicates the channel
status as shown:
Gray = An asset is loaded, but neither playing or recording
Black = No asset loaded
Red = Recording
Green = Playing
Channel
Tabs 1
Audio Meters 3
Channel
Information 4
Channel
Application
Drop List 5
Channel
Monitor 6
Video Monitor 2
