Record channel settings
Record channel settings
Use the following procedures to configure each of your record channels, R1 and R2.
Topics are as follows:
• “Configuring the video input” on page 107
• “Selecting the audio input (for models with digital audio)” on page 111
• “Adjusting the analog audio input trim” on page 112
Configuring the video input
The settings for video input are displayed on a continuous, scrolling page within the
Configuration Manager dialog box. To work through all the settings simply start at
the top and scroll down, answering the questions as you go. The following procedures
explain each setting.
• “Selecting the video input type” on page 107
• “Setting record channel NTSC pedestal” on page 108
• “Setting analog video automatic gain control” on page 109
• “Configuring the VITC reader” on page 110
Selecting the video input type
1. Select System and choose Configuration , then select the Channel button, select the
R1 or R2 tab, and open the Video Input link. Close other links or use the scroll button
if necessary to locate the link.

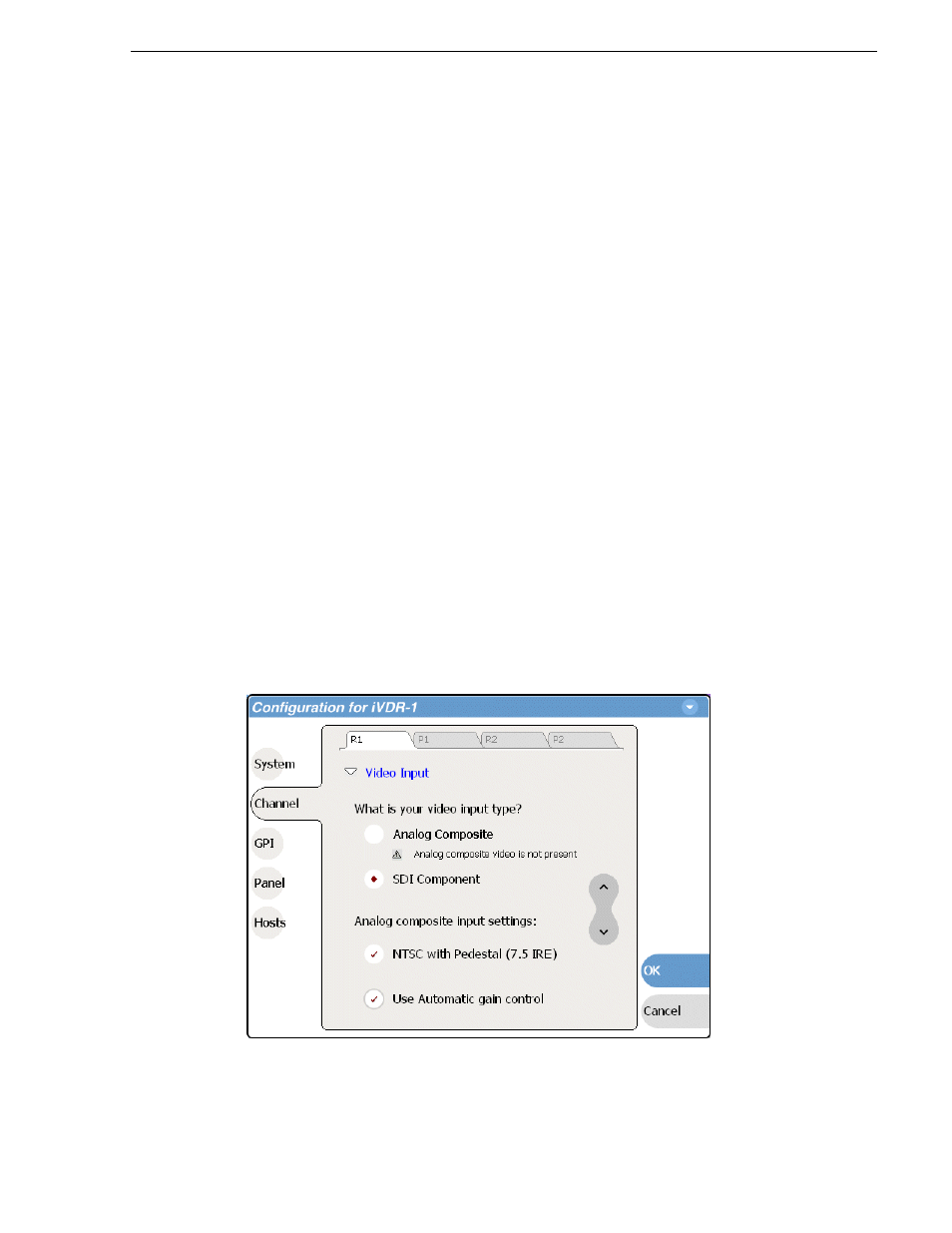

2. Locate the question “What is your video input type?”.
Use the scroll button if necessary to locate the question.
