284 M-Series User Manual 20 April 2005
Chapter 10 Using Remote Control Protocols

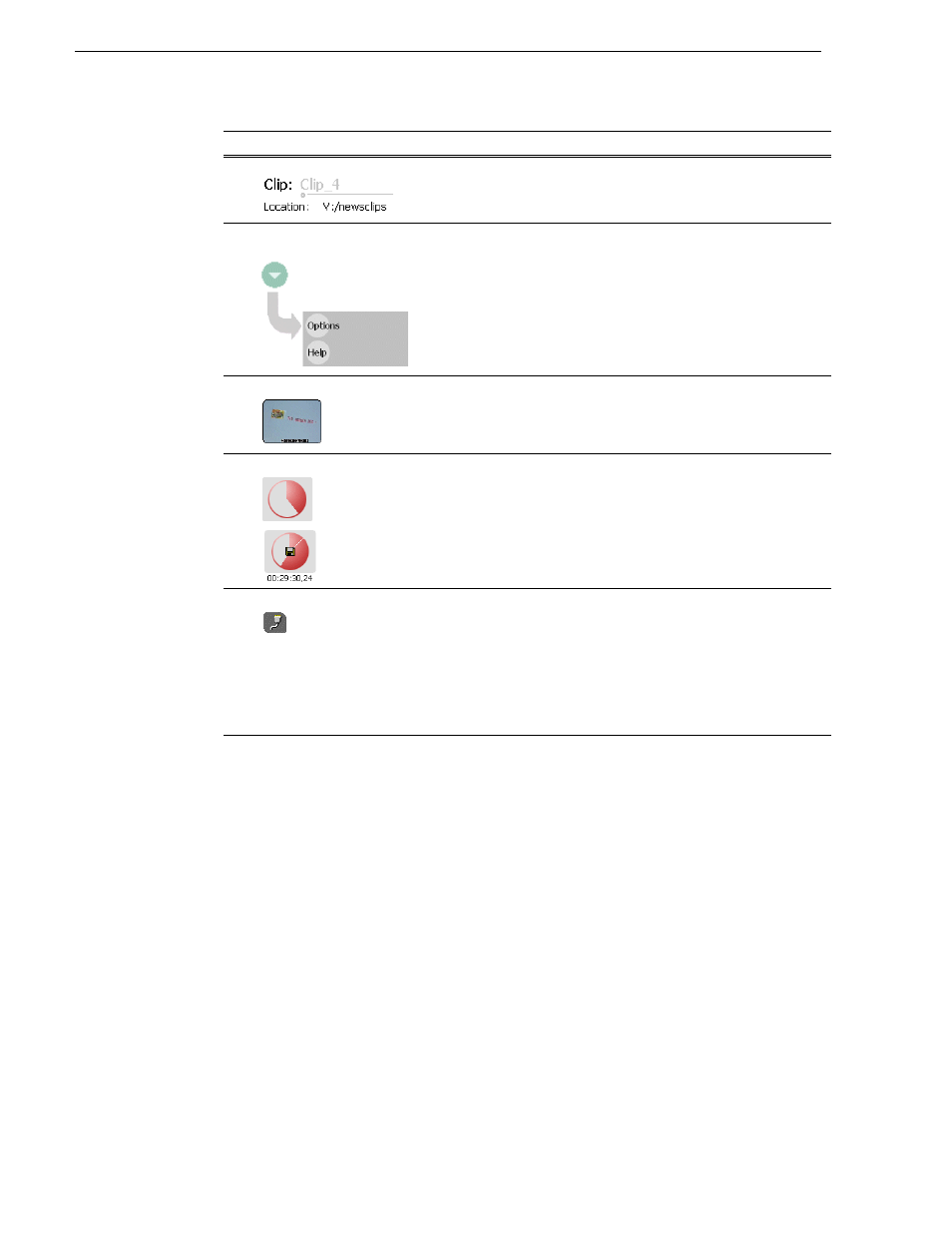

$ Clip Name and location Displays the current clip’s name and location in the media storage
system.
% Protocol control only
Context Menu Options – Opens the Options dialog box.
Help – Opens online help.
& Thumbnail Used to visually identify the clip. By default, the thumbnail is
generated using the 16th frame of video. The thumbnail image can be
modified in Player.
' Time Dome
Progress
Only
Progress
and Available
Storage
This multi-function indicator displays record progress and available
storage. By default, the Time Dome indicates one revolution every
10 seconds, or one revolution during a fixed length recording. You
must switch to local control mode to change the Time Dome display,
then refer to
“Displaying available storage space” on page 156 .
( Protocol Monitor Button Appears when a channel is configured for remote control using a
remote control protocol applications. The button flashes when the
application is successfully receiving serial control protocol
commands. Selecting the button opens the Protocol Monitor pane
used to monitor command activity.
See “Monitoring remote control
communications” on page 297 .
NOTE: The Protocol Monitor dialog will not open until a
controller is connected and at least one command set is sent.
Control Description and User Operation
