3.2.2 Trial Run
After finishing checking the items in “3.2.1 preparation before start-up”, you can perform a
trial run. The factory setting of operation source is from keypad (Pr.00-20=00).

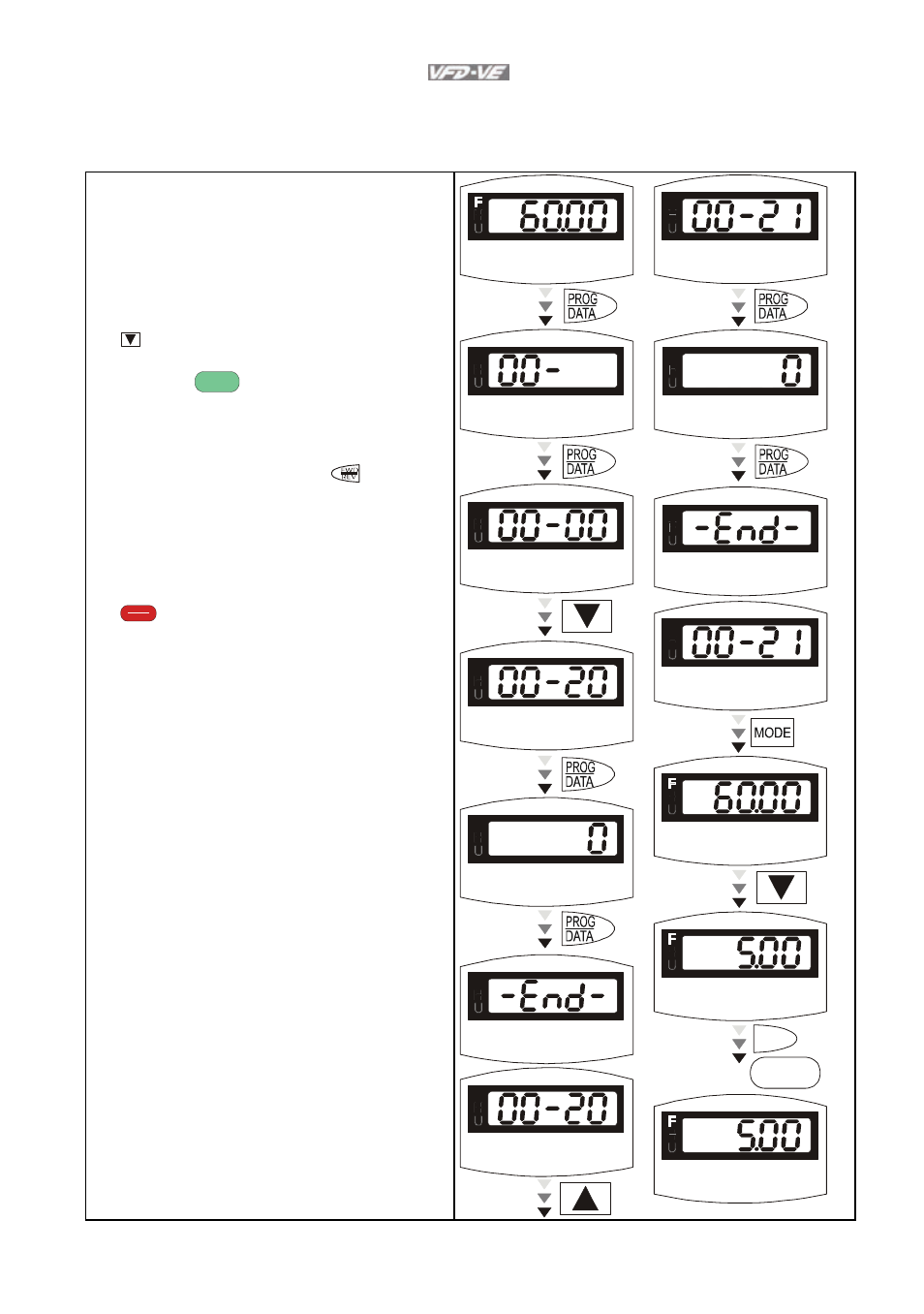

1. After applying power, verify that LED “F”
is on and the display shows 60.00Hz.
2. Setting frequency to about 5Hz by using
key.
3. Pressing RUN key for forward running.
And if you want to change to reverse
running, you should press key. The
LED will display the status. And if you
want to decelerate to stop, please press
RESET
STOP key.
4. Check following items:
„ Check if the motor direction of rotation
is correct.
„ Check if the motor runs steadily
without abnormal noise and vibration.
„ Check if acceleration and deceleration
are smooth.
If the results of trial run are normal, please
start formal run.
