Appendix B Accessories|

B-18

Revision August 2008, 03VE, SW V2.04

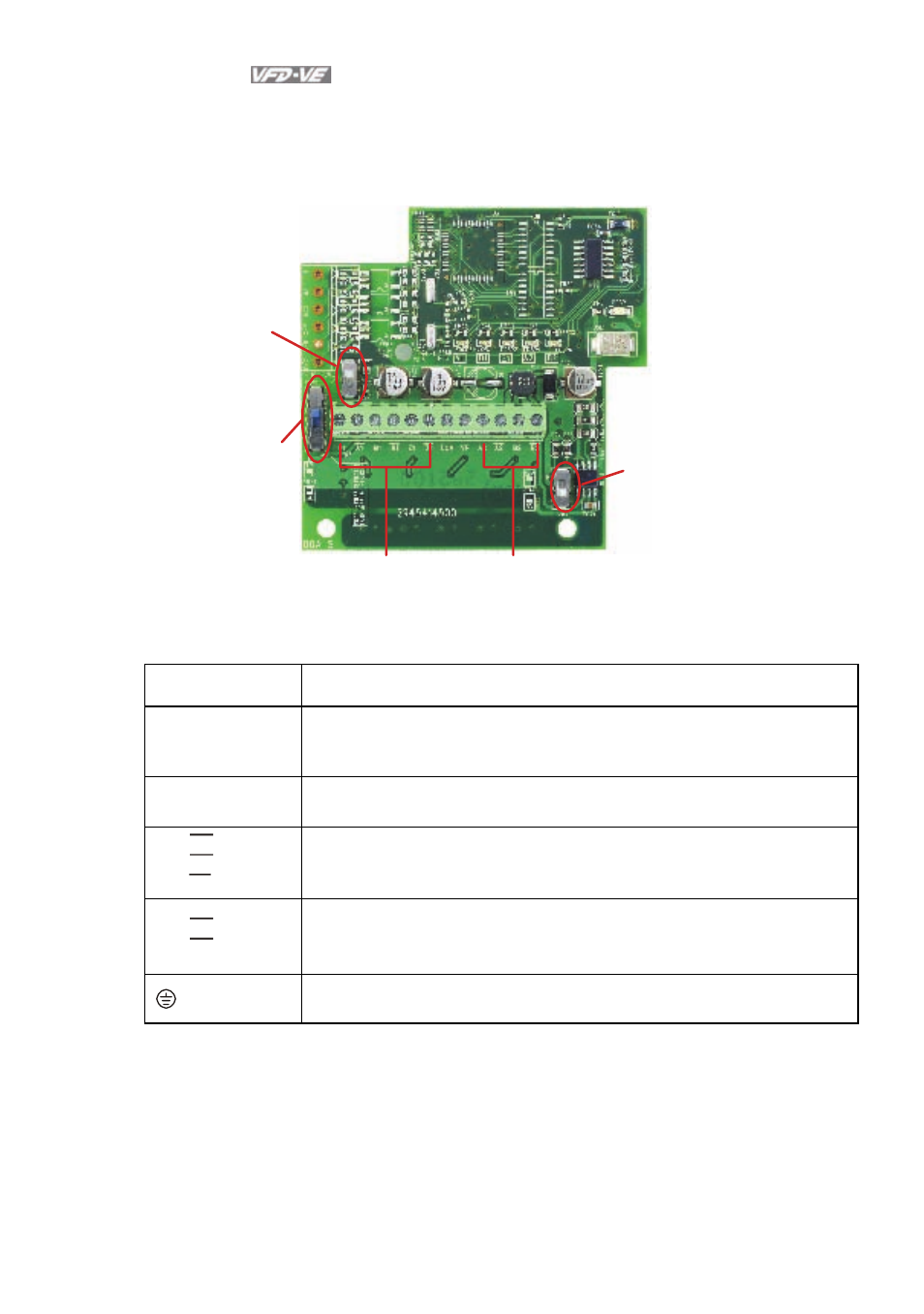

B.8 PG Card (for Encoder)

B.8.1 EMV-PG01X

AB2:
PG2 signal

mode switch

ABZ1:
PG1 signal

mode switch

PG1
Pulse feedback

PG2
Pulse input

PS1:
5/12V switch

1. Terminals descriptions

Terminal Symbols

Descriptions

VP

Power source of EMV-PG01X (use PS1 to switch 12V/5V)

Output Voltage: +5V/+12V

±5% 200mA

DCM

Power source and input signal common

A1,

B1,

Z1,

A1

B1

Z1

Input signal. Input type is selected by ABZ1. It can be 1-phase or 2-

phase input. Maximum 300kP/sec

A2,

B2,

A2

B2

Input signal. Input type is selected by AB2. It can be 1-phase or 2-

phase input. Maximum 300kP/sec

Grounding

2. Wiring Notes

a.

Please use a shielded cable to prevent interference. Do not run control wires

parallel to any high voltage AC power line (200 V and above).

b.

Recommended wire size 0.21 to 0.81mm

2

(AWG24 to AWG18).

3. Wire length (wire length and signal frequency are in inverse proportion)
