Chapter 1 Introduction|
1-4
Revision August 2008, 03VE, SW V2.04

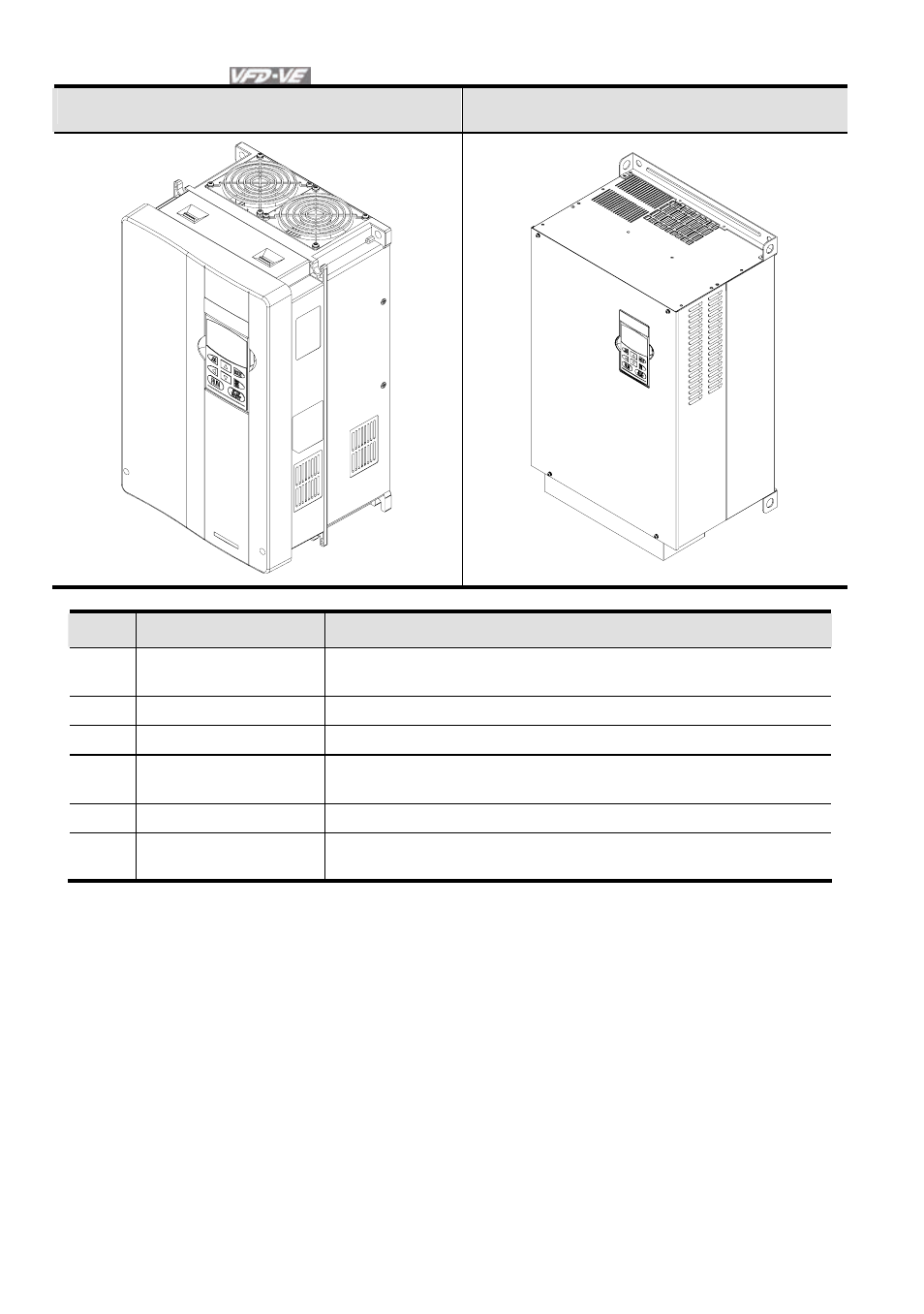

15-30HP/11-22kW (Frame D)
40-100HP/30-75kW (Frame E)
Frame Power range
Models
B (B1) 1-3hp (0.75-2.2kW)
VFD007V23A/43A-2, VFD015V23A/43A-2,
VFD022V23A/43A-2
B (B2) 5hp (3.7kW)
VFD037V23A/43A-2
C 7.5-15hp
(5.5-11kW)
VFD055V23A/43A-2, VFD075V23A/43A-2, VFD110V43B-2
D 15-30hp
(11-22kW)
VFD110V23A/43A-2, VFD150V23A/43A-2,
VFD185V23A/43A-2, VFD220V23A/43A-2
E (E1) 40-60hp (30-45kW)
VFD300V43A-2, VFD370V43A-2, VFD450V43A-2
E (E2) 40-100hp (30-75kW)
VFD300V23A-2, VFD370V23A-2, VFD550V43C-2,
VFD750V43C-2
Please refer to Chapter 1.3 for exact dimensions.
1.2 Preparation for Installation and Wiring
1.2.1 Ambient Conditions
Install the AC motor drive in an environment with the following conditions:
