Appendix B Accessories|
Revision August 2008, 03VE, SW V2.04 B-41
Terminals Description
5V Output power 500mA Max
GND Analog signal common terminal
NOTE
This GND terminal is only used for 5V terminal on EMV-APP01. Please do NOT
confuse with DCM terminal.
SO1-MCM
SO2-MCM
Multi-function analog voltage output terminal 0~10.0V (output current: 2mA Max.)
Analog output is set by Pr.03-21 and Pr.03-24.
MI7~MIB Multi-function input terminals
Please refer to Pr.02-23 to Pr.02-27 for MI7-GND~MIB-GND function selection. Take
terminals MI7-GND for example, ON: the activation current is 6.5mA and OFF:
leakage current tolerance is 10μA.

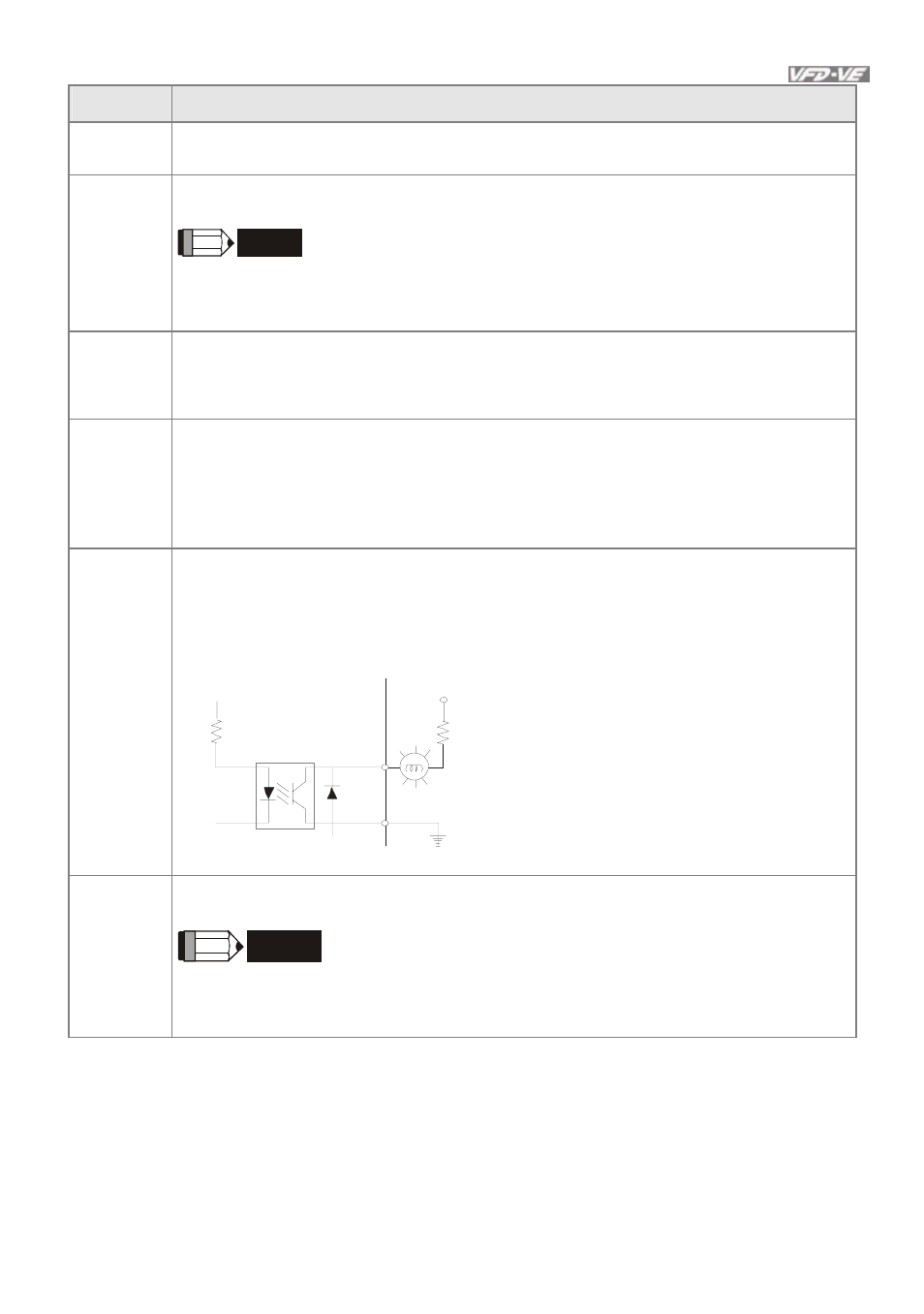

MO3~MOA Multi-function output terminals (photocoupler)
The AC motor drive outputs each monitor signal, such as during operation, frequency
attained and overload, by transistor with open collector. Please refer to Pr.03-35 to
Pr.03-42 for details.
MO3~M OA-MCM
MO 3
~
MOA
MCM
Ma x: 48Vd c/50mA
internal c ircui t
MCM Multi-function output common terminal. Max: 48Vdc/50mA
NOTE
This MCM terminal is only used with MO3~MOA on EMV-APP01. Please do NOT
confuse with terminal MCM.
