Chapter 4 Parameters|
Revision August 2008, 03VE, SW V2.04 4-77

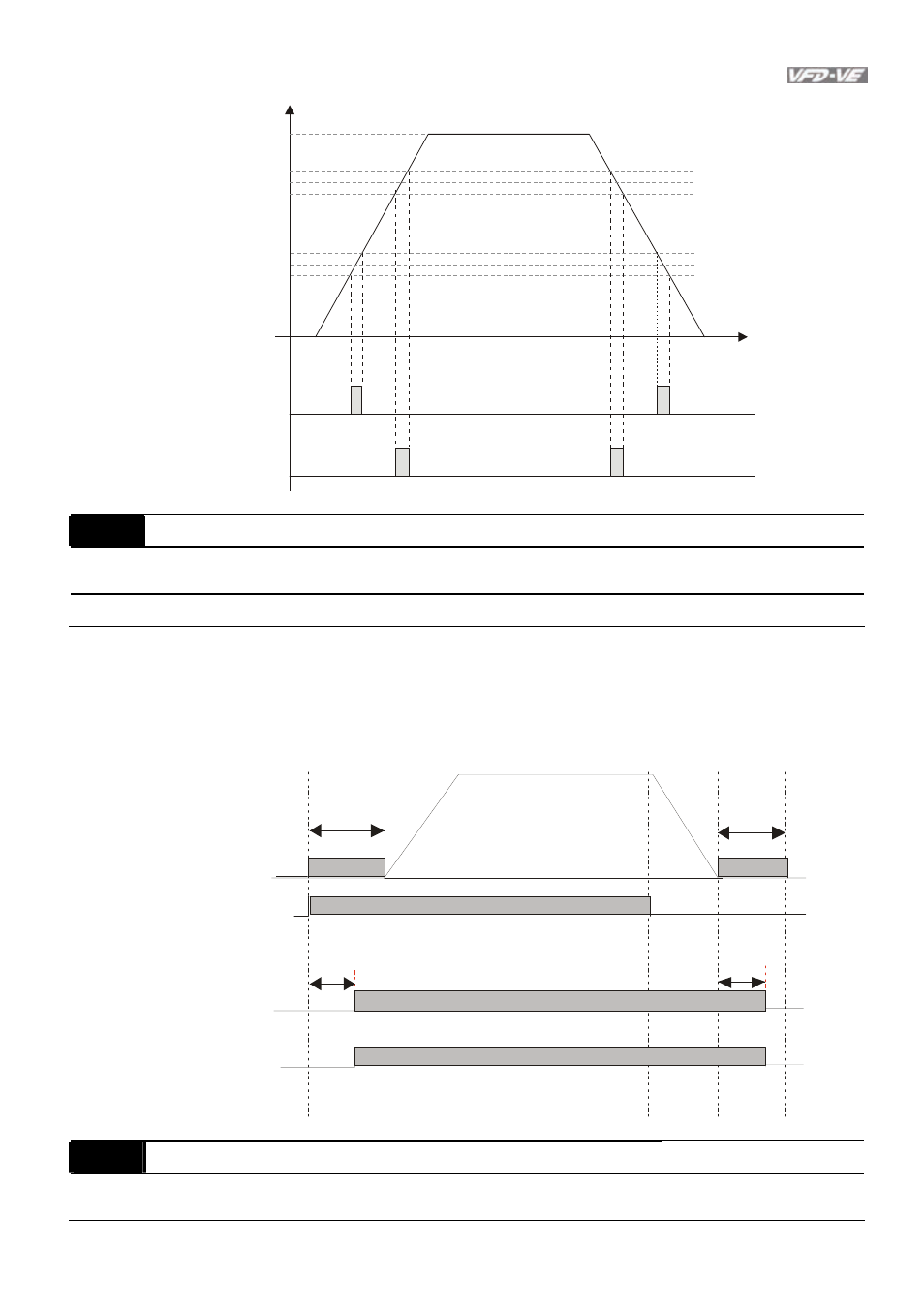

02-11~14=3
02-11~14=4
Fcmd=60Hz
02-19=10Hz
02-20=2Hz
02-21=40Hz
02-22=2Hz
H
38Hz
40Hz
42Hz
10Hz
12Hz
8Hz
T
02-31 Brake Delay Time Unit:0.001
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0.000
Settings 0.000~65.000 Sec
When the AC motor drive runs after Pr.02-31 delay time, the corresponding multi-function
output terminal (12: mechanical brake release) will be ON. This function should be used with
DC brake.
Motor speed/
Output frequenc y
DC br ake DC br ake
07-02
DC br ake
time during
star t-up
07-03
DC br ake
time during
stoppi ng
Mul ti- func ti on output
(mechani cal brake release)
Pr.02-11 to 02-14=12
Mec hani cal br ake
02-3 1 brake delay ti me
bounce time of mec hanic al brake
RUN/STO P ON STOP
br aked release
br aked
02-32 Output Current Level Setting for External Terminals Unit:1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0
