Delta Electronics AC Motor Drive VFD-VE Series - Manual (Page 258)

Appendix B Accessories|
Revision August 2008, 03VE, SW V2.04 B-19
Types of Pulse
Generators
Maximum Wire Length Wire Gauge
Output Voltage 50m
Open Collector 50m
Line Driver 300m
Complementary 70m
1.25mm 2 (AWG16) or above

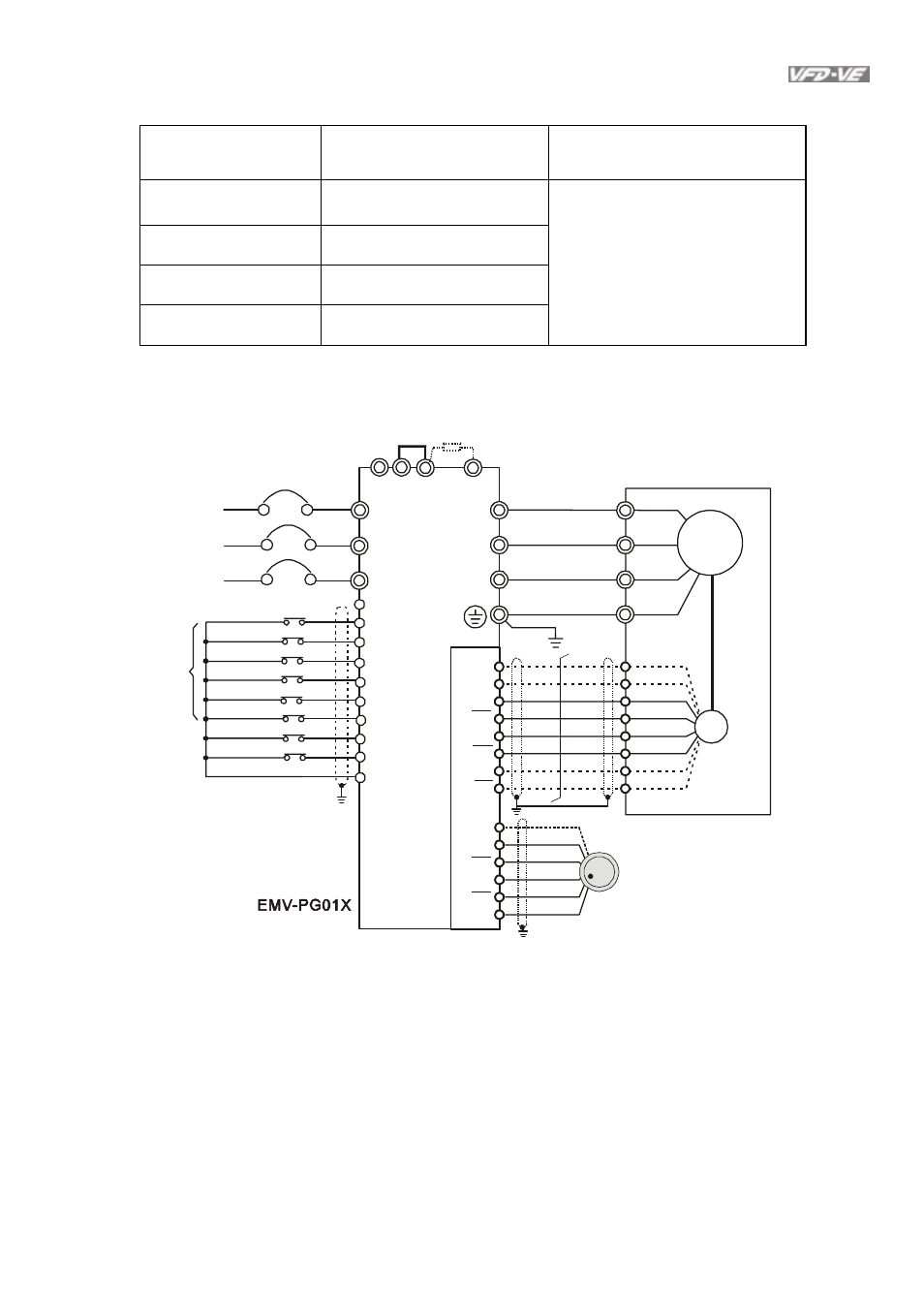

4. Basic Wiring Diagram
wiring 1
R/L1
S/L2
T/L3
NFB
R
S
T
+1 +2/B1 B2
U/T1
V/T2
W/T3
M
3~
-
U
W
V
VP
DCM
A1
A1
B1
B1
Z1
Z1
PG
VP
DCM
A2
A2
B2
B2
10-17
10-18
jumper
Braking resistor (optional)
Motor
Non-fuse breaker
MI1
MI2
MI3
MI4
MI6
MI5
DCM
+24V
FWD/STOP
REV/STOP
Multi-step 1
Multi-step 2
Multi-step 3
Multi-step 4
No function
Digital Signal Common
Factory
setting
No function
REV
FWD
manual pulse generator
(MPG)
incremental encoder
Line driver Line driver
Line driver
