Chapter 4 Parameters|
4-156 Revision August 2008, 03VE, SW V2.04

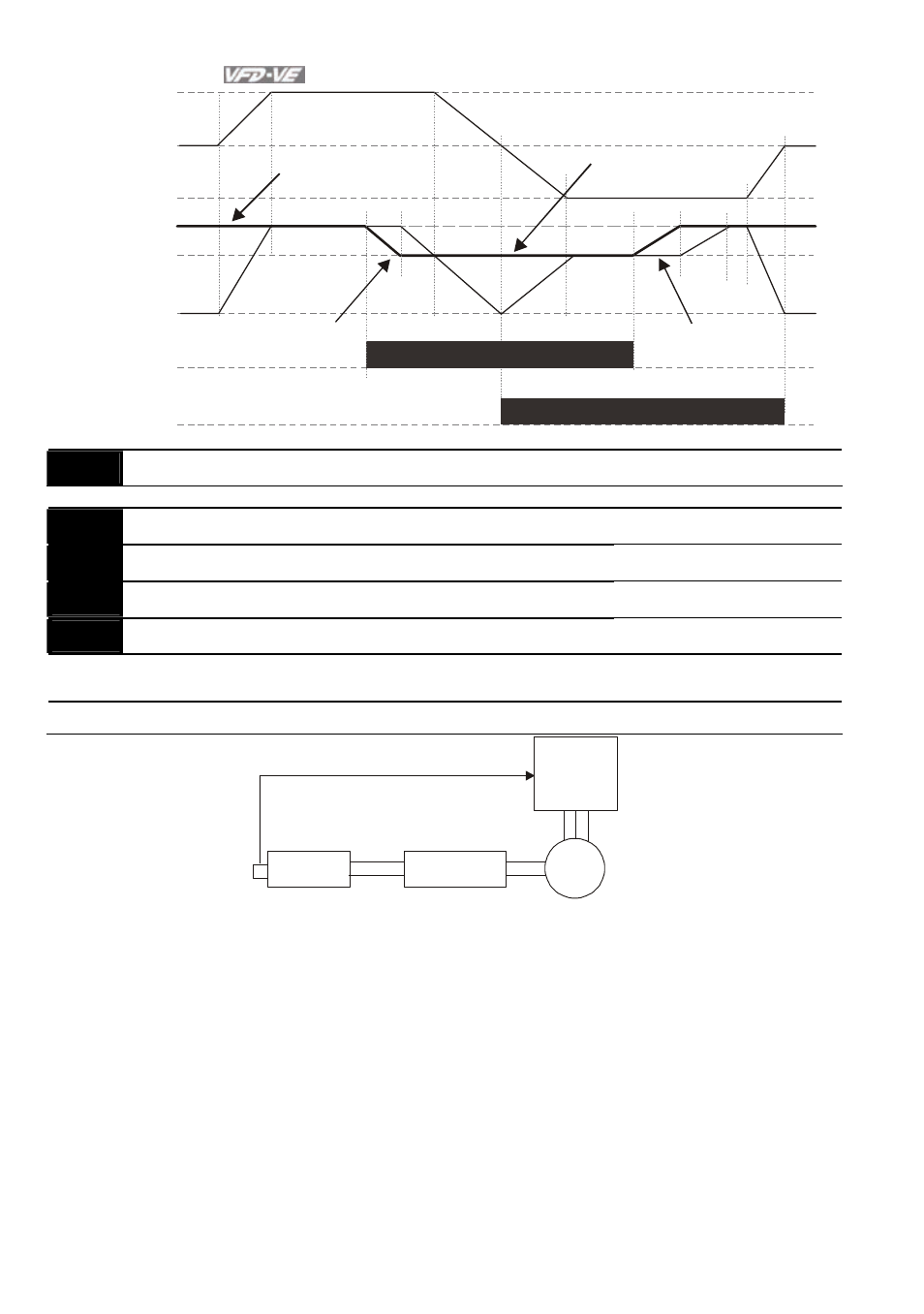

AUI +10V
AUI 0V
AUI -10V
0Hz
Max. output frequency
Pr.01-00
Resolution switch frequency
Pr.10-25
Forward running Reverse running
Output
frequency
Resolution switch
Pr.02-11~02-14=43
Max. waiting time for
frequency switch
Max. waiting time for
frequency switch
10-26 Reserved
10-27 PG Mechanical Gear A1 Unit: 1
10-28 PG Mechanical Gear B1 Unit: 1
10-29 PG Mechanical Gear A2 Unit: 1
10-30 PG Mechanical Gear B2 Unit: 1
Control
mode
VFPG FOCPG TQRPG
Factory Setting: 100
Settings 1 to 65535
1:10
10:1
Driver
Motor
Gear ratio B1/B2
Gear ratio Load
Gear ratio A1/A2
Encoder is used
at load side
