Chapter 1 Introduction|
Revision August 2008, 03VE, SW V2.04 1-13

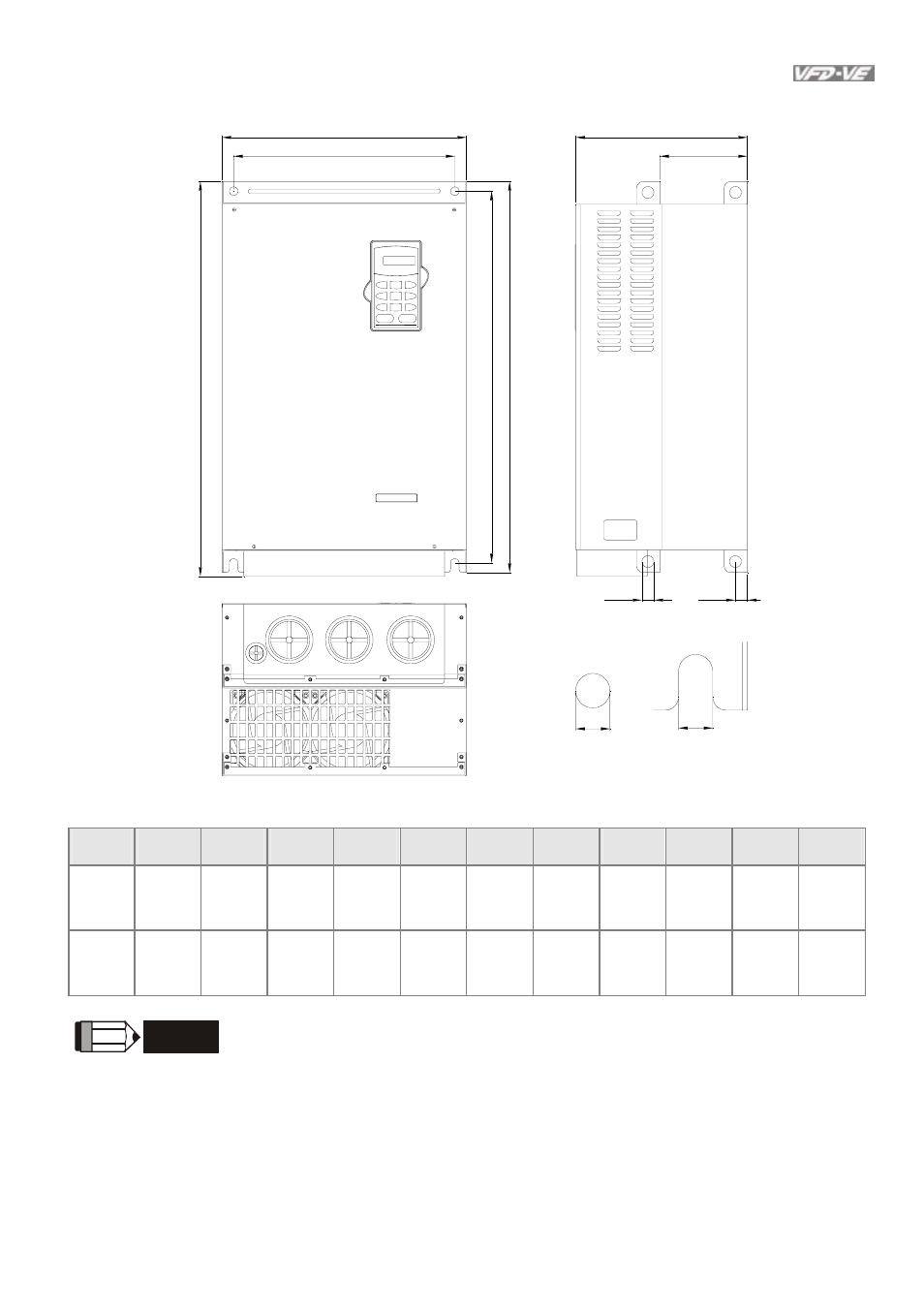

Frame E
W1
W D
H1 H2
S2
H
D1
S1
D2 S3
Unit: mm[inch]
Frame W W1 H H1 H2 D D1 D2 S1 S2 S3
E1
370.0
[14.57]
335.0
[13.19]
-
589.0
[23.19]
560.0
[22.05]
260.0
[10.24]
132.5
[5.22] 18.0
[0.71]
13.0
[0.51]
13.0
[0.51]
18.0
[0.71]
E2
370.0
[14.57]
335.0
[13.19]
595.0
[23.43]
589.0
[23.19]
560.0
[22.05]
260.0
[10.24]
132.5
[5.22] 18.0
[0.71]
13.0
[0.51]
13.0
[0.51]
18.0
[0.71]
NOTE
Frame E1: VFD300V43A-2, VFD370V43A-2, VFD450V43A-2
Frame E2: VFD300V23A-2, VFD370V23A-2, VFD550V43C-2, VFD750V43C-2
