Chapter 4 Parameters|

4-108

Revision August 2008, 03VE, SW V2.04

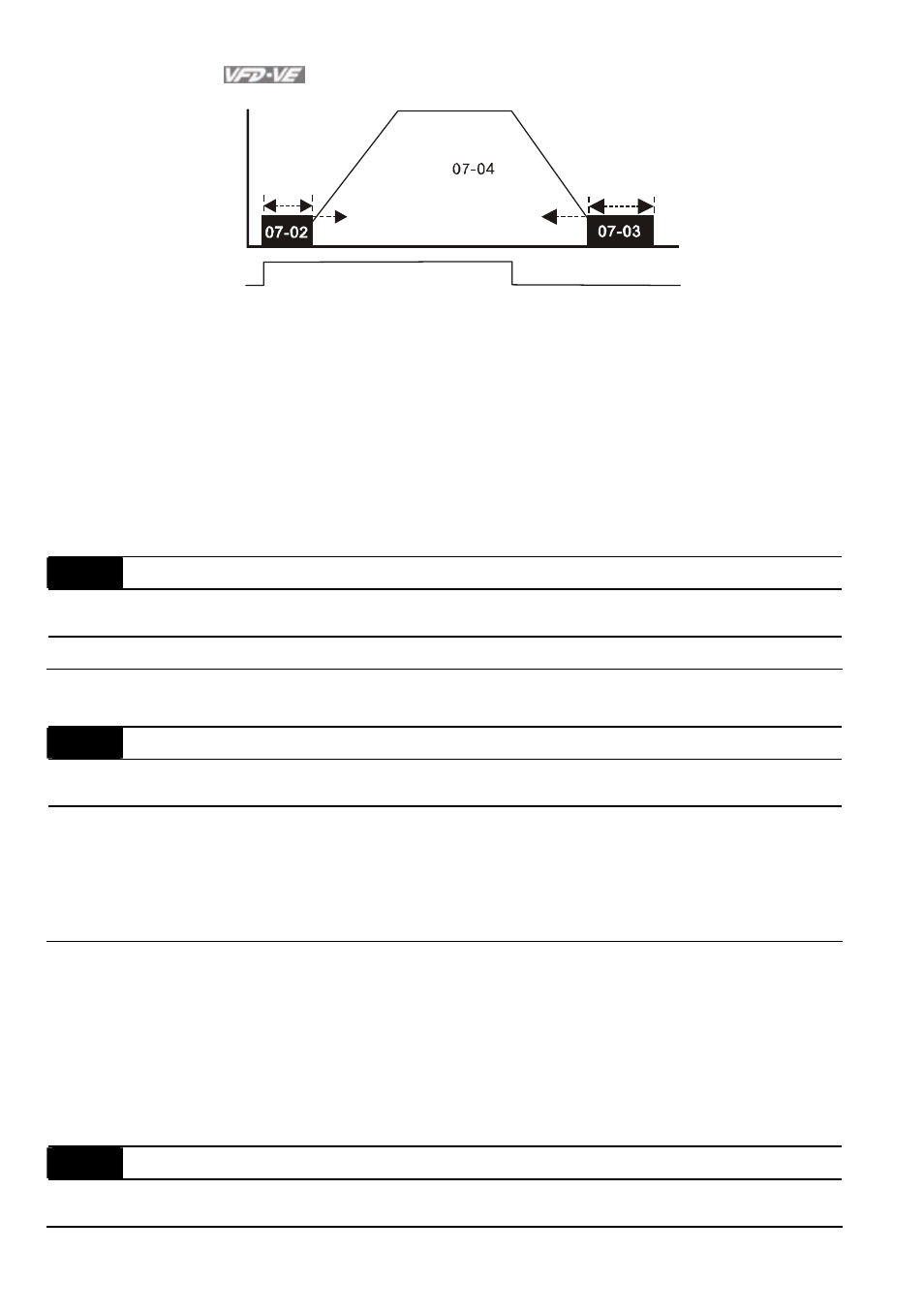

ON

OFF

01-09

Output frequency

Run/Stop

Time

DC Braking Time

DC Braking Time
during Stopping

Minimum
output
frequency

Start-point for
DC braking
time during
stopping

DC Brake during Start-up is used for loads that may move before the AC drive starts, such as

fans and pumps. Under such circumstances, DC Brake can be used to hold the load in

position before setting it in motion.

DC Brake during stopping is used to shorten the stopping time and also to hold a stopped load

in position. For high inertia loads, a dynamic brake resistor may also be needed for fast

decelerations.

07-05

DC Brake Proportional Gain

Unit: 1

Control

mode

VF

VFPG

SVC

Factory Setting: 50

Settings

1 to 500Hz

It is used to set the output voltage gain when DC brake.

07-06

Momentary Power Loss Operation Selection

Control

mode

VF VFPG SVC

FOCPG TQRPG

Factory Setting: 0

Settings

0

Operation

stops

after momentary power loss.

1

Operation continues after momentary power loss, speed search
starts with the Master Frequency reference value.

2

Operation continues after momentary power loss, speed search
starts with the minimum frequency.

This parameter determines the operation mode when the AC motor drive restarts from a

momentary power loss.

In PG control mode, the AC motor drive will execute the speed search function automatically

by the PG speed when this setting isn’t set to 0.



07-07

Maximum Allowable Power Loss Time

Unit: 0.1

Control

mode

VF VFPG SVC

FOCPG TQRPG

Factory Setting: 2.0
