2.7 Clock Generation
All functional modules in the MAXQ610 are synchronized to a single system clock with the exception of the wakeup
timer . The internal clock circuitry generates the system clock from one of two possible sources:
• Internal oscillator, using an external crystal or resonator
• External clock signal
The external clock and crystal are mutually exclusive since they are input through the same clock pin . Each time code
execution must start or restart (as can be the case when exiting stop mode) using the external clock source, the fol-
lowing sequence occurs:
• Reset the crystal warmup counter.
• Allow the required warmup delay: 8192 external clock cycles if exiting from stop mode.
• Code execution starts after the crystal warmup sequence.

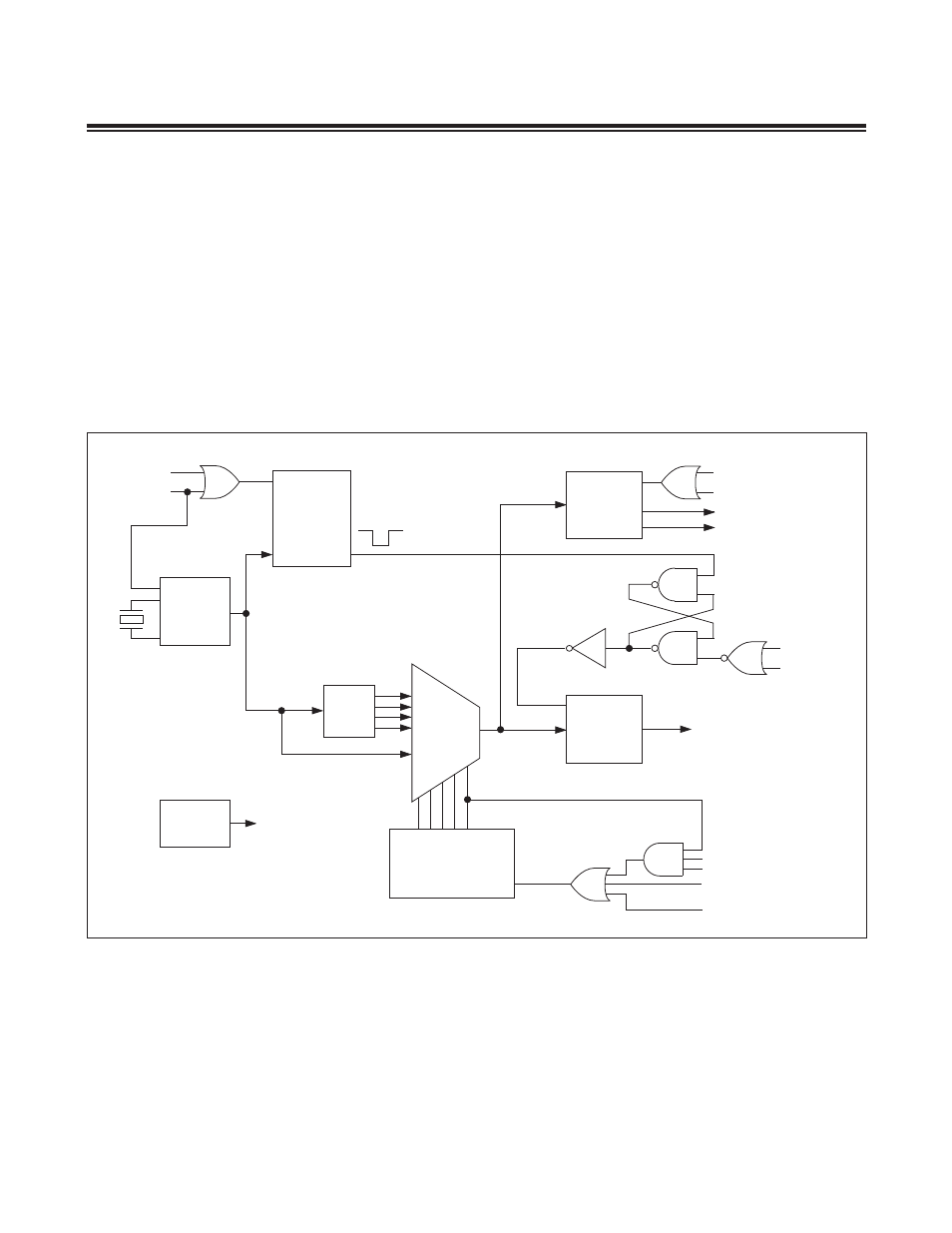

Figure 2-9. MAXQ610 Clock Sources
