About ParamSet
Using ParamSet, you can quickly widen the alarm limits by a configured percentage
(relative to the patient’s alarming reading) for any vital sign.
For information about ParamSet, see “ParamSet Settings” on page 133.
Responding to an alarm
An alarm condition is indicated on the monitor in the following ways:
• The RED indicator (rightmost of three) above the display screen flashes.
• The numerics for the vital sign in alarm are displayed in RED.
• If alarm tones are not suspended, the alarm-tone sequence sounds repeatedly—3
short tones, a short pause, 2 short tones, and a long pause.
Responding to an alert
An alert condition ( “Overview” on page 81) is indicated on the monitor in the following
ways:
• A flashing yellow light above the monitor display.
• A yellow alert message on the monitor display (for example, NO ECG CABLE
DETECTED).
• Repeated sounding of the alert-tone sequence (if tones are not suspended): 3 long
tones and a pause.

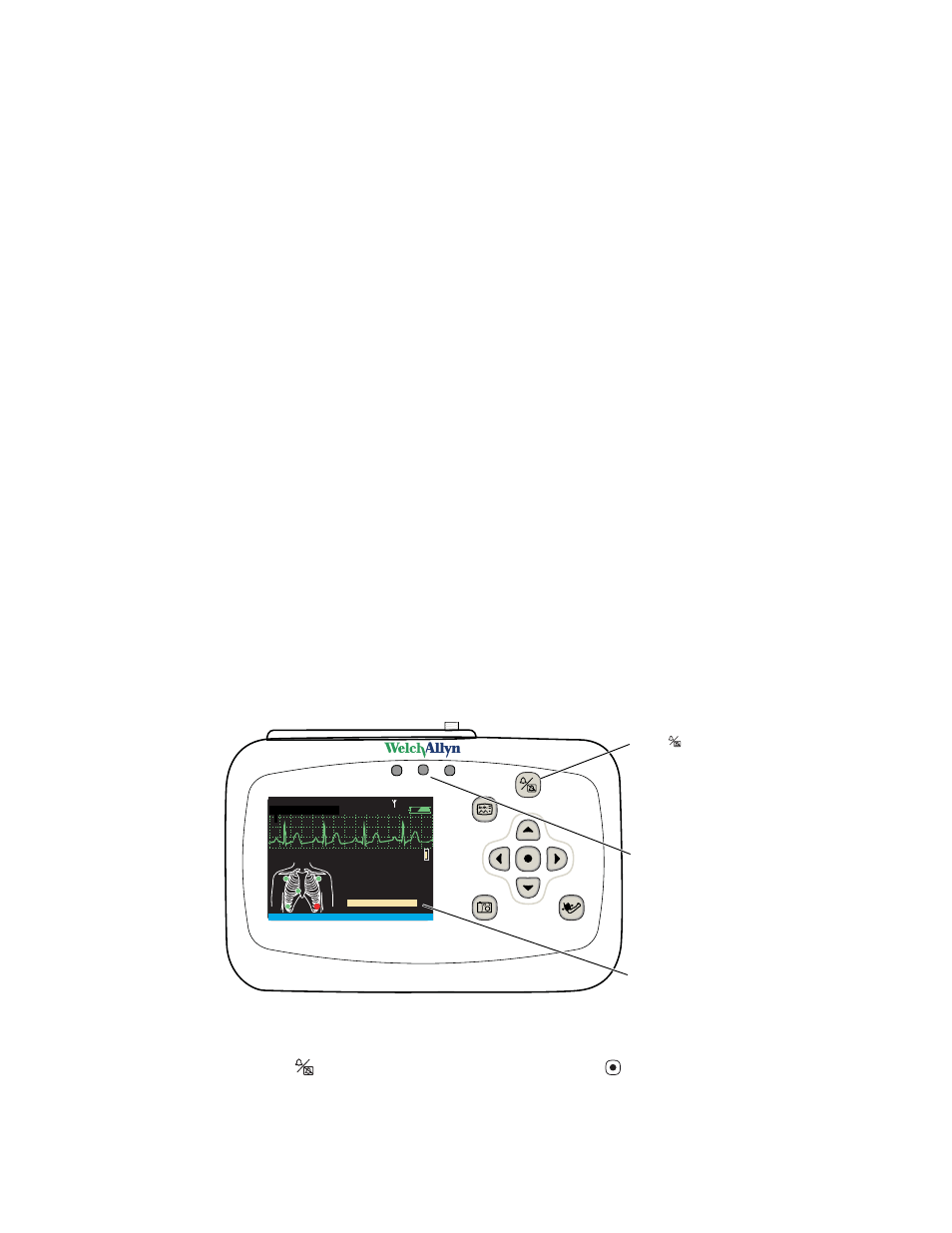

Figure 91. Example alert screen
To respond at the monitor to an alert
1. Press to silence the tone for 90 seconds; press to clear the alert.
2. Troubleshoot and correct the problem. (See “Alert messages and status messages”
on page 87.)
140 40/ 78 78 80 80 12 12 97 97%
HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P
Adult, Adult, Rm 239 Rm 239
HR/min HR/min NIBP mmHg (102) NIBP mmHg (102)
@2:47P Manual @2:47P Manual
Resp/min Resp/min SpO2 SpO2
SpO2 SpO2 2x 2x
II 1mV/cm II 1mV/cm
Propaq LT
The yellow light flashes during an alert
and while the alert is silenced.
Press to silence the alert tone for
90 seconds.
Text on a yellow field identifies the
alert condition.
X
Resp/min Resp/min SpO2 SpO2
II 1mV/cm II 1mV/cm
HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 12:41:32 12:41:32
Adult Adult Rm 239 Rm 239 Audible Alarms Silenced Audible Alarms Silenced
80 80 140/78 140/78 12 12 97 97 %
HR/min HR/min NIBP mmHg (102) NIBP mmHg (102)
@2:47P Manual @2:47P Manual
EQUIPMENT ALERT EQUIPMENT ALERT
ECG Fault ECG Fault
LL Lead Failed LL Lead Failed
ACKNOWLEDGE ACKNOWLEDGE
