Overview of monitor operation
Welch Allyn Propaq LT Vital Signs Monitor
The monitor can be configured to cycle quickly through three of the five available display
formats when you press
. For example, if the configuration specifies three formats—
Large Numerics, Single Waveform, and Tabular Trends—you can press
repeatedly
to cycle through those formats.

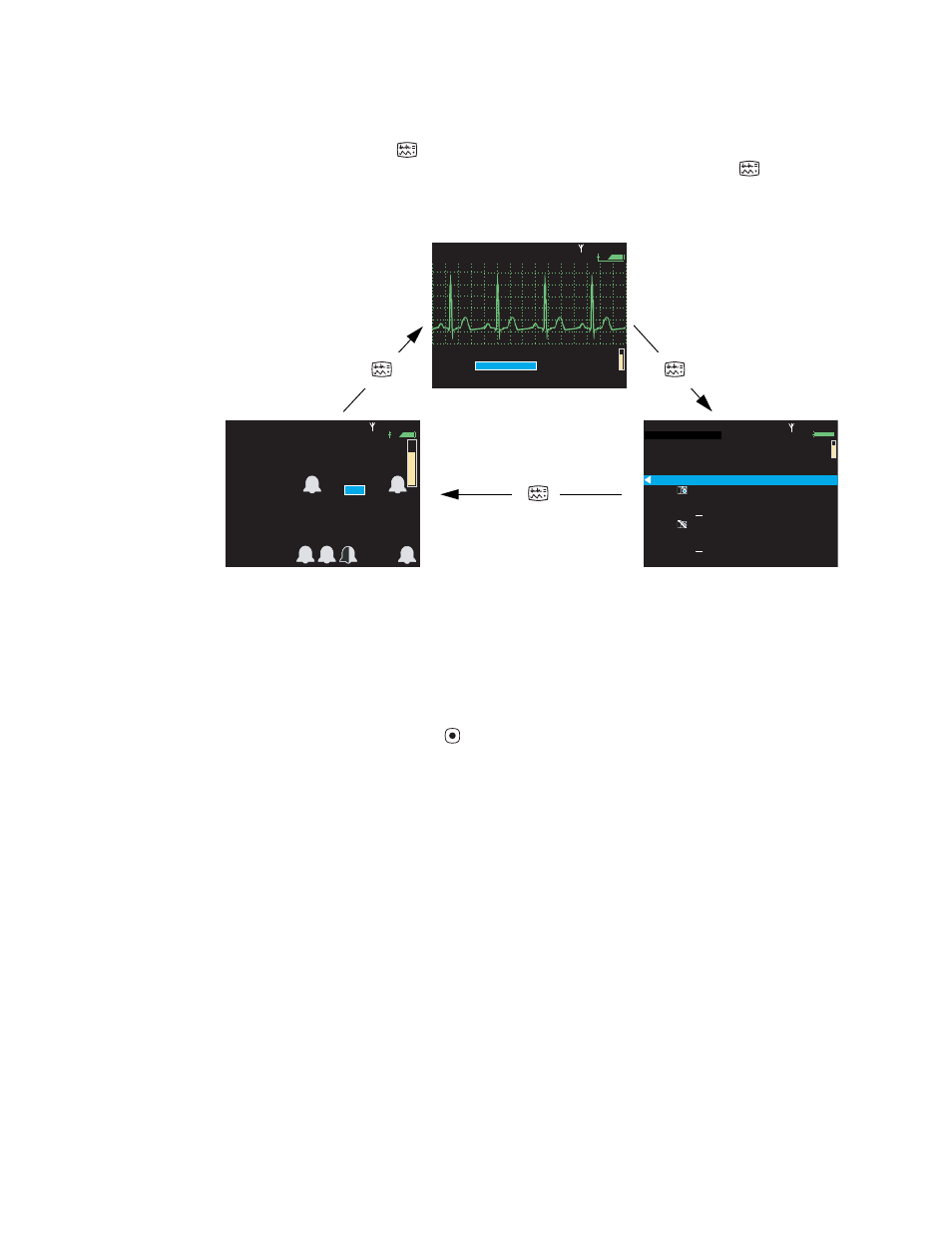

Figure 14. Cycling through the configured display formats
Certain properties of each display type can also be configured. See
To view a tabular display if no tabular trends format is specified
1.
Access the Setup menu. (See
2.
Highlight Trends and press
.
Timing out the display and the back light
To conserve battery run life, the monitor display and the back light can be configured to
turn off if no operator activity (that is, a button press) is detected for a specified number of
minutes.
•
When the display is off, no patient data is visible.
•
When the back light is off, patient data is visible only under direct light.
The monitor configuration determines whether the time-out feature is enabled or
disabled, and defines the default time-out period if it is enabled. If the feature is enabled in
the configuration, you can temporarily change the time-out period or disable the time out
through the Setup -> Timings menu.
Note
All valid display configurations include at least one waveform format.
Large numerics
Single waveform
Tabular trends
