Page 60

Standalone monitoring

Welch Allyn Propaq LT Vital Signs Monitor

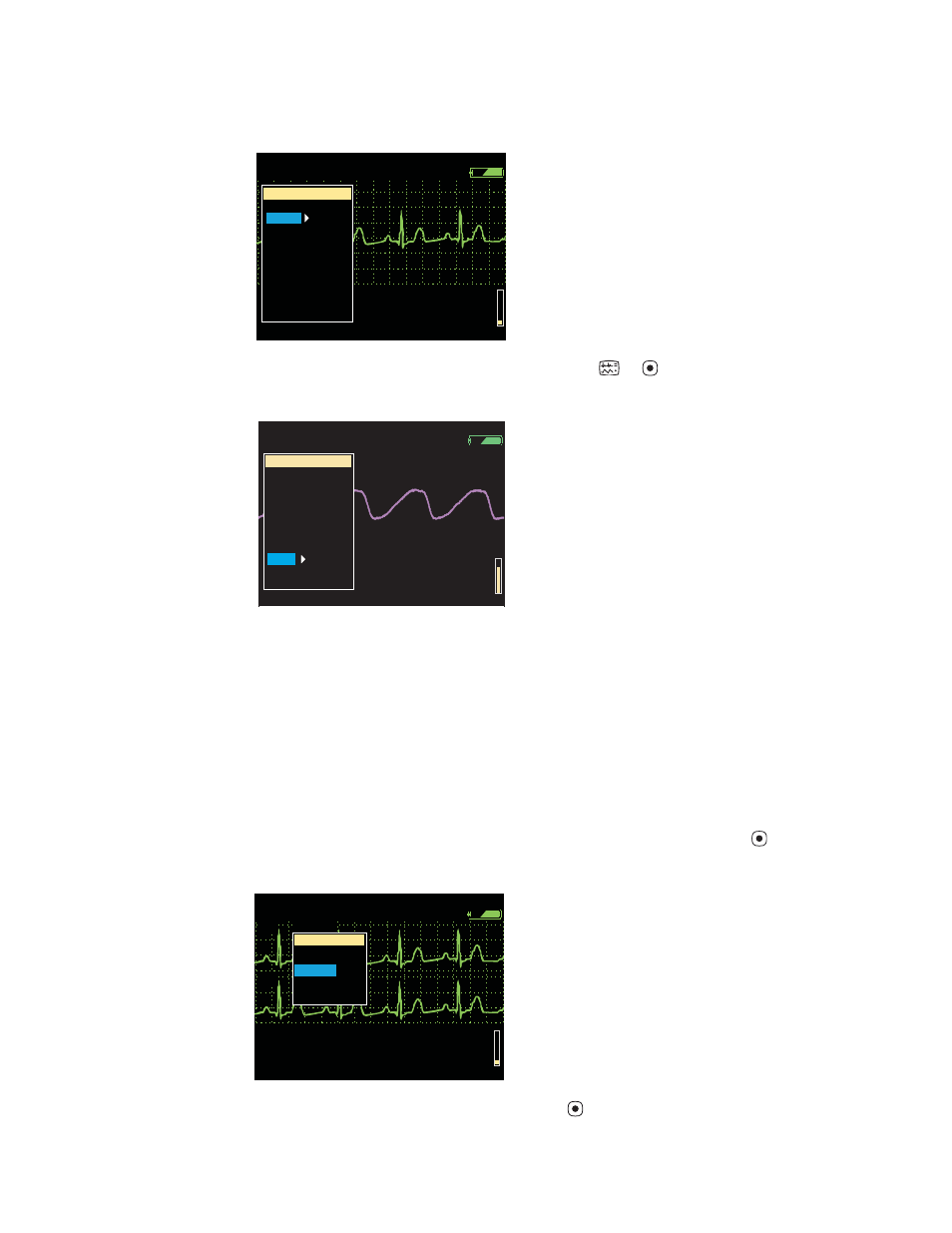

Figure 60. Waveform source: II

Highlight your waveform source choice and press

Figure 61. Waveform source: Resp

To change the waveform size

Highlight the current waveform scale (1mV/cm, for example) and press

Figure 62. Waveform size popup menu

Highlight the desired scaling factor and press

. (Waveform size does not affect

QRS-detector sensitivity.)

Note

If you scroll to the bottom selection of the Waveform Source menu—either Add
2nd Wave or Remove 2nd wave—the selection takes effect immediately and the
monitor returns to the primary data display.

Note

In the Waveform Source menu, either the source Lead or the waveform period
can be highlighted. If the waveform period is highlighted, a second trace of the
same source will be cascaded to double the period obtained from a single trace.

STEWART, ANN

7762940

15:14:28

Adult

Rm 263

HR/min

NIBP mmHg

Resp/min

SpO2

II 1mV/cm

Waveform Source

Lead I

Lead I
Lead II 6 sec

Lead II 6 sec
Lead III

Lead III
aVR

aVR
aVL

aVL
aVF

aVF
V

V
Resp

Resp
SpO2

SpO2
Add 2nd Wave

Add 2nd Wave

STEWART, ANN

7762940

7:05P

Adult

Rm 263

HR/min

Resp/min

SpO2

Resp 4x

130/74

NIBP mmHg (88)

@7:05P Manual

Waveform Source

Lead I

Lead I
Lead II

Lead II
Lead III

Lead III
aVR

aVR
aVL

aVL
aVF

aVF
V

V
Resp 24 sec

Resp 24 sec
SpO2

SpO2
Add 2nd Wave

Add 2nd Wave

HR/min

NIBP mmHg

Resp/min

SpO2

II 1mV/cm

I 4mV/cm

STEWART, ANN

7762940

12:41:32

Adult

Rm 263

Waveform Size

0.2 mV/cm

0.2 mV/cm
0.5 mV/cm

0.5 mV/cm
1 mV/cm

1 mV/cm
2 mV/cm

2 mV/cm
4 mV/cm

4 mV/cm
8 mV/cm

8 mV/cm
