Directions for Use Overview of monitor operation 35
About the NIBP control menu
The NIBP control has submenus Manometer, Systolic, Diastolic, and Mean. Press or
to select one.

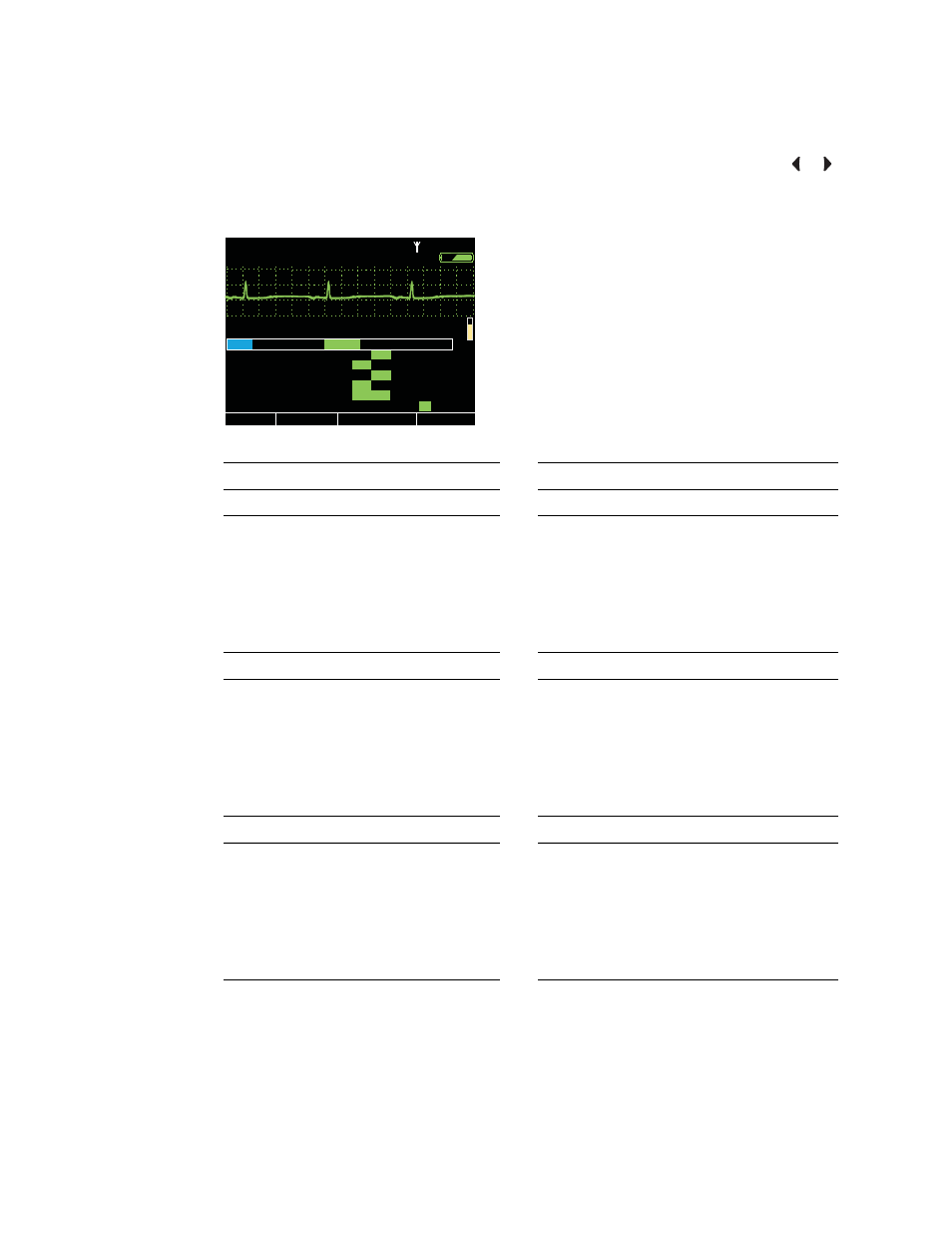

Figure 30. NIBP control menu
Parameter Options Parameter Options
Systolic Systolic
Upper Sys Alarm Off On Lower Sys Alarm Off On
Upper Sys Limit Lower Sys Limit
Adult
Pediatric
Neonate 32 - 260 mmHg
32 - 160 mmHg
27 - 120 mmHg Adult
Pediatric
Neonate 30 - 258 mmHg
30 - 158 mmHg
25 - 118 mmHg
NIBP Mode Auto Manual Turbo Auto Interval (min) 1 2 3 5 10 15 30 60
Diastolic Diastolic
Upper Dia Alarm Off On Lower Dia Alarm Off On
Upper Dia Limit Lower Dia Limit
Adult
Pediatric
Neonate 22 - 235 mmHg
17 - 130 mmHg
12 - 105 mmHg Adult
Pediatric
Neonate 20 - 233 mmHg
15 - 128 mmHg
10 - 103 mmHg
NIBP Mode Auto Manual Turbo Auto Interval (min) 1 2 3 5 10 15 30 60
MAP MAP
Upper MAP Alarm Off On Lower MAP Alarm Off On
Upper MAP Limit Lower MAP Limit
Adult
Pediatric
Neonate 22 - 255 mmHg
17 - 140 mmHg
12 - 110 mmHg Adult
Pediatric
Neonate 20 - 253 mmHg
15 - 138 mmHg
10 - 108 mmHg
NIBP Mode Manual Auto Turbo Auto Interval (min) 1 2 3 5 10 15 30 60
