Directions for Use

Introduction

9

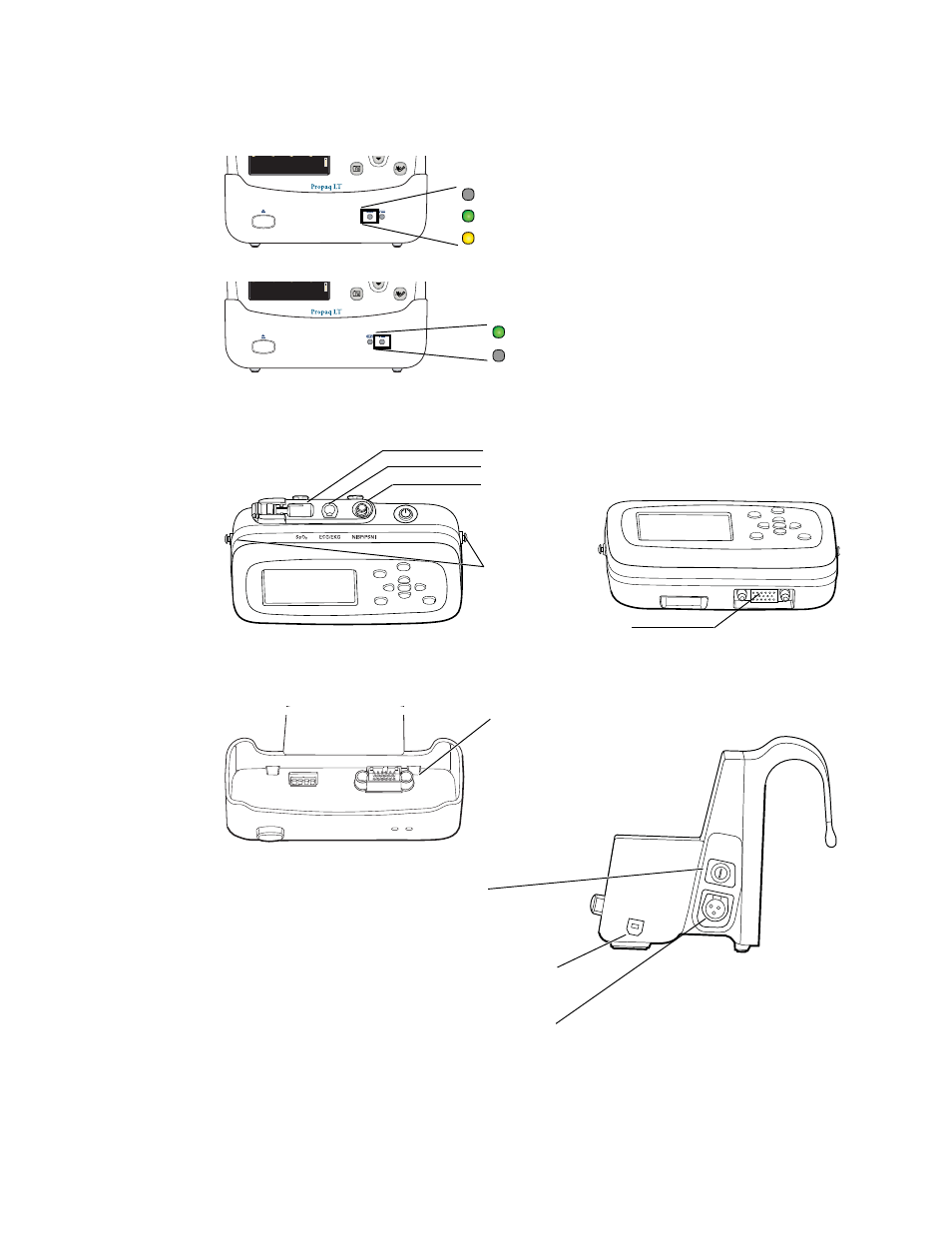

Figure 3. Indicators: cradle

Figure 4. Connectors: monitor

Figure 5. Connectors: cradle

140

40/ 78

78

80

80

12

12

97

97%

HALL, ROBERT E.

HALL, ROBERT E.

3456187

3456187

3:00:06P

3:00:06P

Adult,

Adult,

Rm 239

Rm 239

HR/min

HR/min

NIBP mmHg (102)

NIBP mmHg (102)

@2:47P Manual

@2:47P Manual

Resp/min

Resp/min

SpO2

SpO2

SpO2

SpO2

2x

2x

II 1mV/cm

II 1mV/cm

Green

Battery is charging

Off

Cradle is not connected to power,
or cradle fault

Green

Cradle is connected to power

140

40/ 78

78

80

80

12

12

97

97%

HALL, ROBERT E.

3456187

3:00:06P

Adult,

Rm 239

HR/min

HR/min

NIBP mmHg (102)

NIBP mmHg (102)

@2:47P Manual

@2:47P Manual

Resp/min

Resp/min

SpO2

SpO2

SpO2

2x

II 1mV/cm

Off

Battery is full or monitor is not in the cradle

Yellow

Cradle fault or battery fault

SpO

2

sensor connector

ECG/Resp cable connector
NIBP hose connector

Power and data connector
(from the cradle)

Strap connectors

USB connector for data to
and from the PC (optional)

Fuse holder

Power (DC) input connector

Monitor power and data connector
