Displaying data – Welch Allyn 901061 Propaq LT Vital Signs Monitor - User Manual User Manual
Page 21

Directions for Use
Overview of monitor operation
17
Displaying data
Patient vital signs appear on the 3.5-inch (diagonal measurement) monitor display and
optionally on the Large Color Display screen.

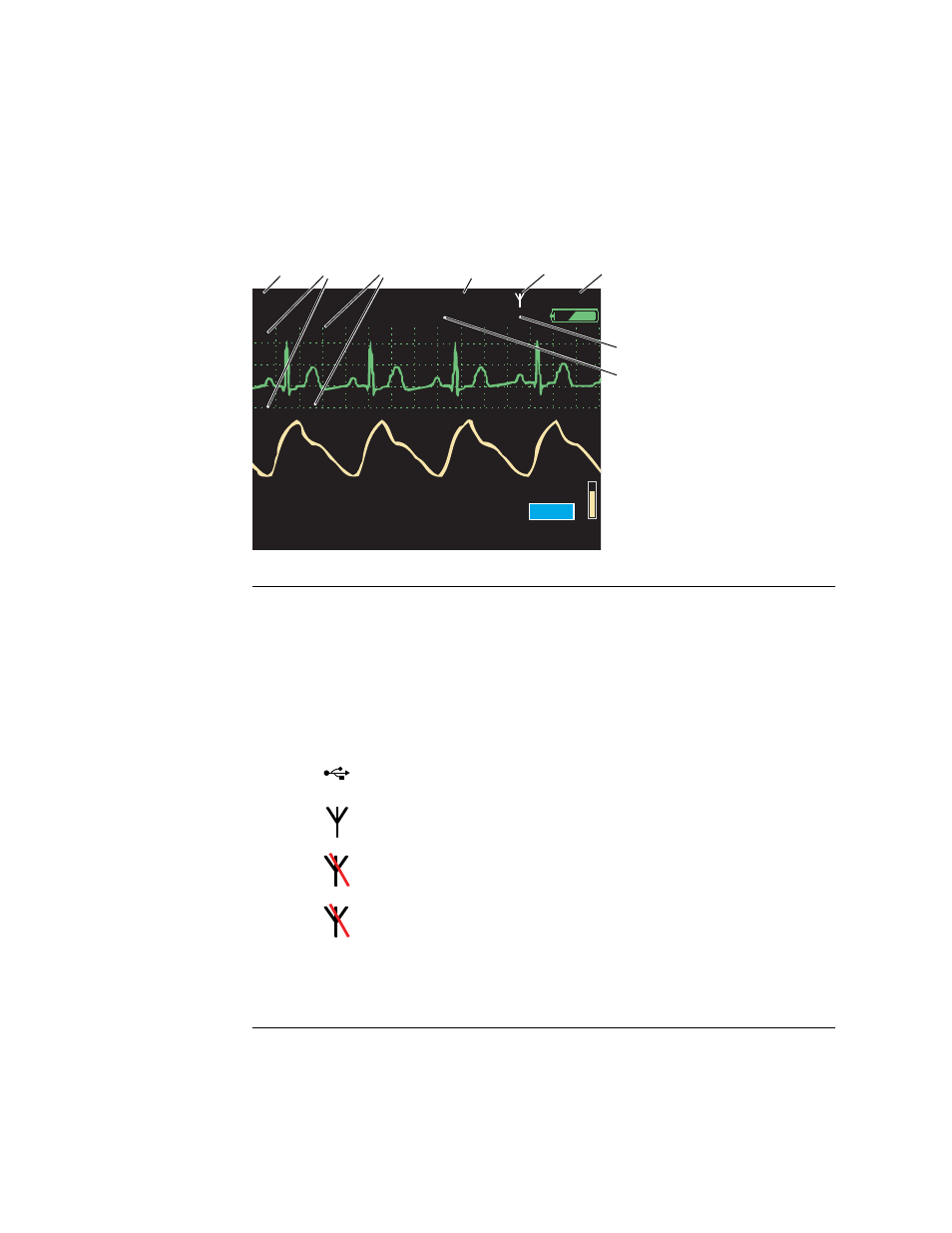

Figure 12. Components of the vital-signs display (A)
0
1
Patient name (if available)
2
Waveform source
3
Waveform display scale
4
Patient ID (if available)
5
Connection status icon
(blank)
Connectivity not enabled.
The monitor is communicating via USB cable with a PC. (Wireless monitor only, Acuity
enabled.)
The monitor is communicating with the network and with Acuity.
(Wireless monitor only, Acuity enabled.)
Flashing — the monitor is communicating with the network but not with Acuity.
(Wireless monitor only, Acuity enabled.)
Steady — the monitor is not communicating with the network.
(Wireless monitor only, Acuity enabled).
6
Time of day
7
Patient room number
8
Patient mode
140/78
140/78
80
80
12
12
97
97 %
HALL, ROBERT E.
HALL, ROBERT E.
3456187
3456187
3:00:06P
3:00:06P
Adult
Adult
Rm 239
Rm 239
HR/min
HR/min
NIBP mmHg (102)
NIBP mmHg (102)
@2:47P Manual
@2:47P Manual
Resp/min
Resp/min
SpO2
SpO2
SpO2
SpO2
2x
2x
II 1mV/cm
II 1mV/cm
