18

Overview of monitor operation

Welch Allyn Propaq LT Vital Signs Monitor

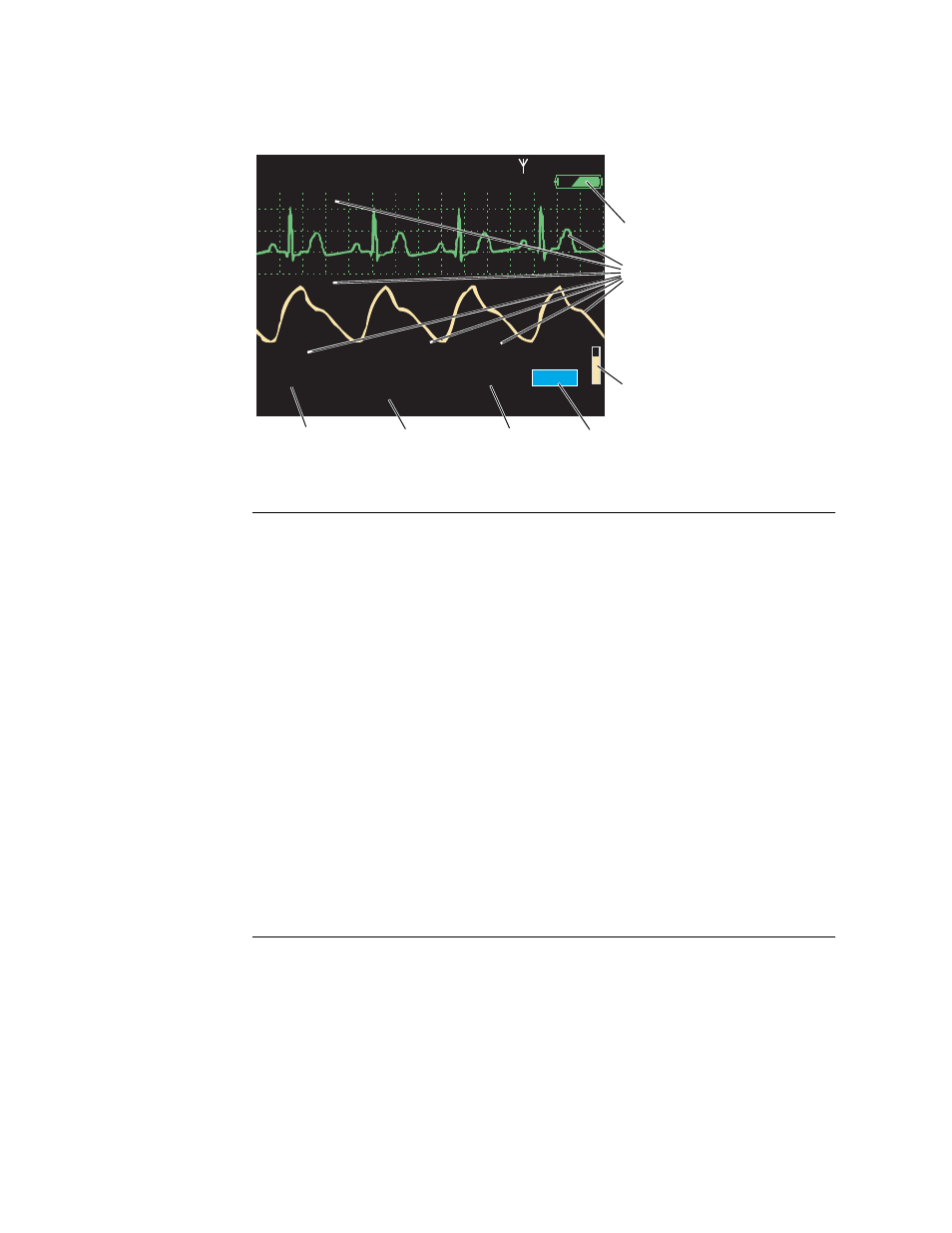

Figure 13. Components of the vital-signs display (B)

9

Battery status (See

Table 3, “Status indicators”

on page 2.)

green

partially to fully charged

yellow

nearly discharged

red

discharged; the monitor will shut down soon

10

Color-coded waveforms, ECG Lead identifiers, and vital-signs numerics

Green
Cyan
Purple
Yellow

ECG and HR/PR
NIBP
Resp
SpO

2

11

SpO

2

pulse amplitude

12

SpO

2

numeric data

13

Respiration rate numeric data

14

NIBP numeric data

15

HR (heart rate) is displayed if ECG is active.
PR (pulse rate) is displayed if ECG is not active and SpO

2

or NIBP is active.

The monitor indicates an HR/PR measurement outside the measurable range as follows:

- - -

out

-

of

-

range low

+ + +

out

-

of

-

range high

? ? ?

undetermined

140/78

140/78

80

80

12

12

97

97 %

HALL, ROBERT E.

HALL, ROBERT E.

3456187

3456187

3:00:06P

3:00:06P

Adult

Adult

Rm 239

Rm 239

HR/min

HR/min

NIBP mmHg (102)

NIBP mmHg (102)

@2:47P Manual

@2:47P Manual

Resp/min

Resp/min

SpO2

SpO2

SpO2

SpO2

2x

2x

II 1mV/cm

II 1mV/cm

15

14

13

12

11

10

9
