Directions for Use

Overview of monitor operation

37

Use the Setup -> Configuration menu to change the monitor configuration without using
the Configuration Utility.

To access the setup menus

From any main display screen (such as Large Numerics, Dual Waveform...):

1.

Highlight

, HR/PR, SpO2, NIBP, Resp, or

.

2.

Press

.

3.

Highlight Setup (at the bottom of the screen) and press

.

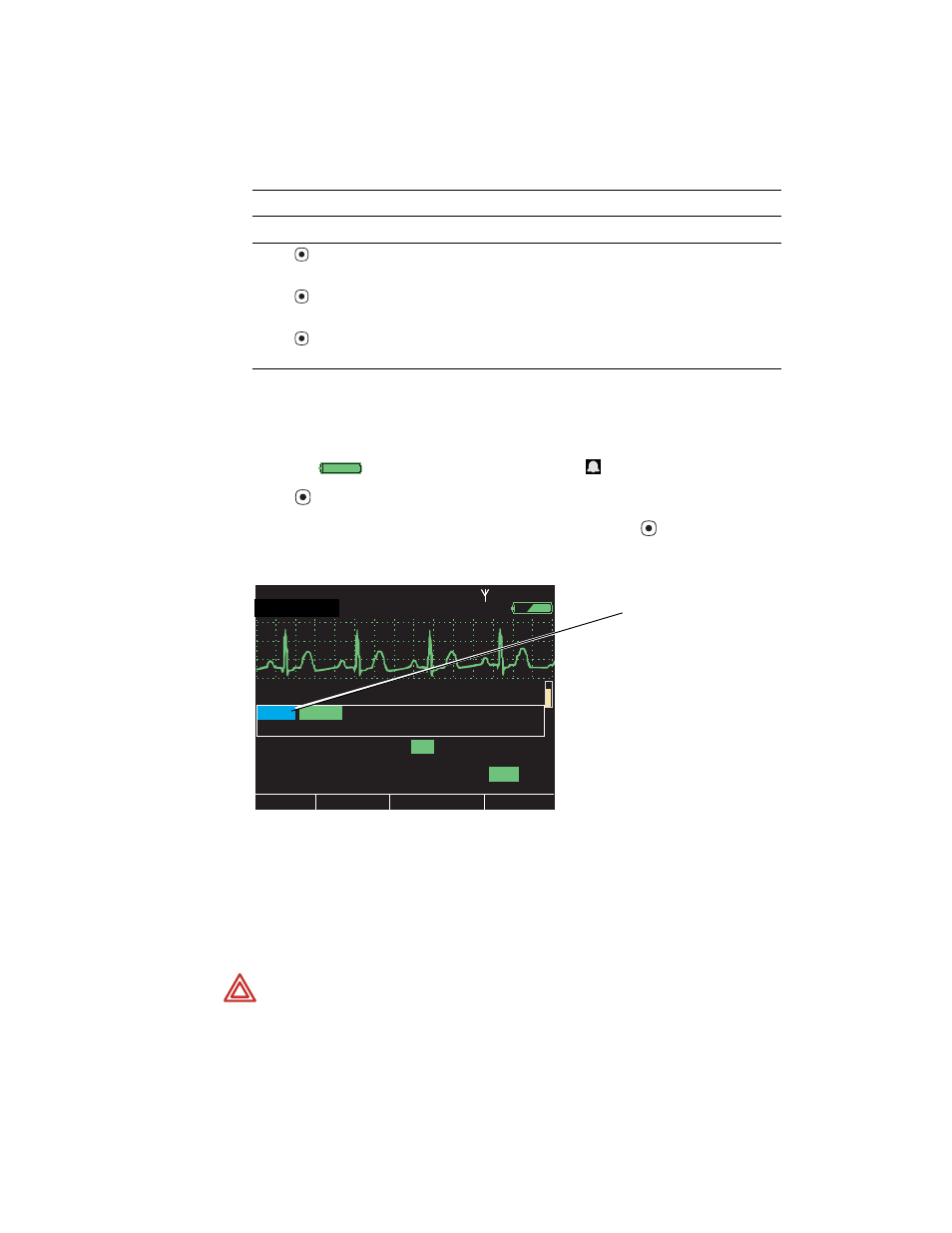

Figure 31. Setup menus

Option

Note

Configuration

Select (

) to save current settings.

Replace the power-up defaults with the current
parameter settings.

Select (

) to use factory settings.

Replace the power-up defaults with the factory
settings.

Select (

) to use file: [file name]

Replace the power-up defaults with the last
downloaded configuration settings.

Note

If you change parameter settings and then change the patient mode (from adult to
pediatric, for example):

All parameters are reset to the configuration default values for the new
patient mode.

All stored patient data is lost.

WARNING The Setup menus are also used to access the Service menu. Do not
enter the Service menu unless you are a qualified service person.
