Directions for Use

Overview of monitor operation

27

Detaching the bed rail hook from the cradle

If you are attaching the interface box to the cradle and if the cradle and the bed rail hook
are attached, you must first detach the bed rail hook from the cradle.

1.

Remove the screws from the back of the bed rail hook.

2.

Lift the bed rail hook off of the shoulder screws on the back of the cradle.

3.

Remove the shoulder screws from the back of the cradle.

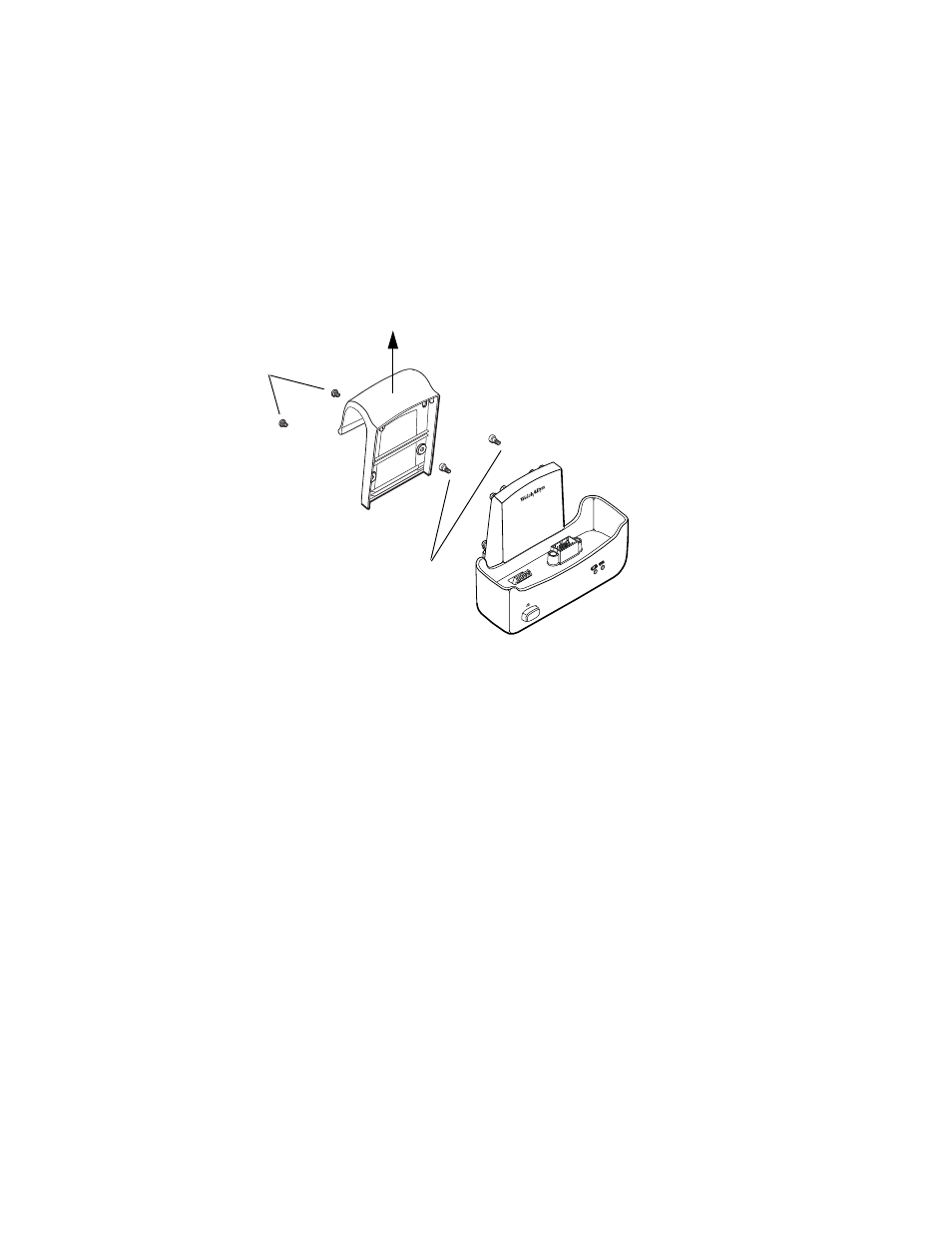

Figure 23. Detaching the bed rail hook from the cradle

1

3

2
