Directions for Use Standalone monitoring 59

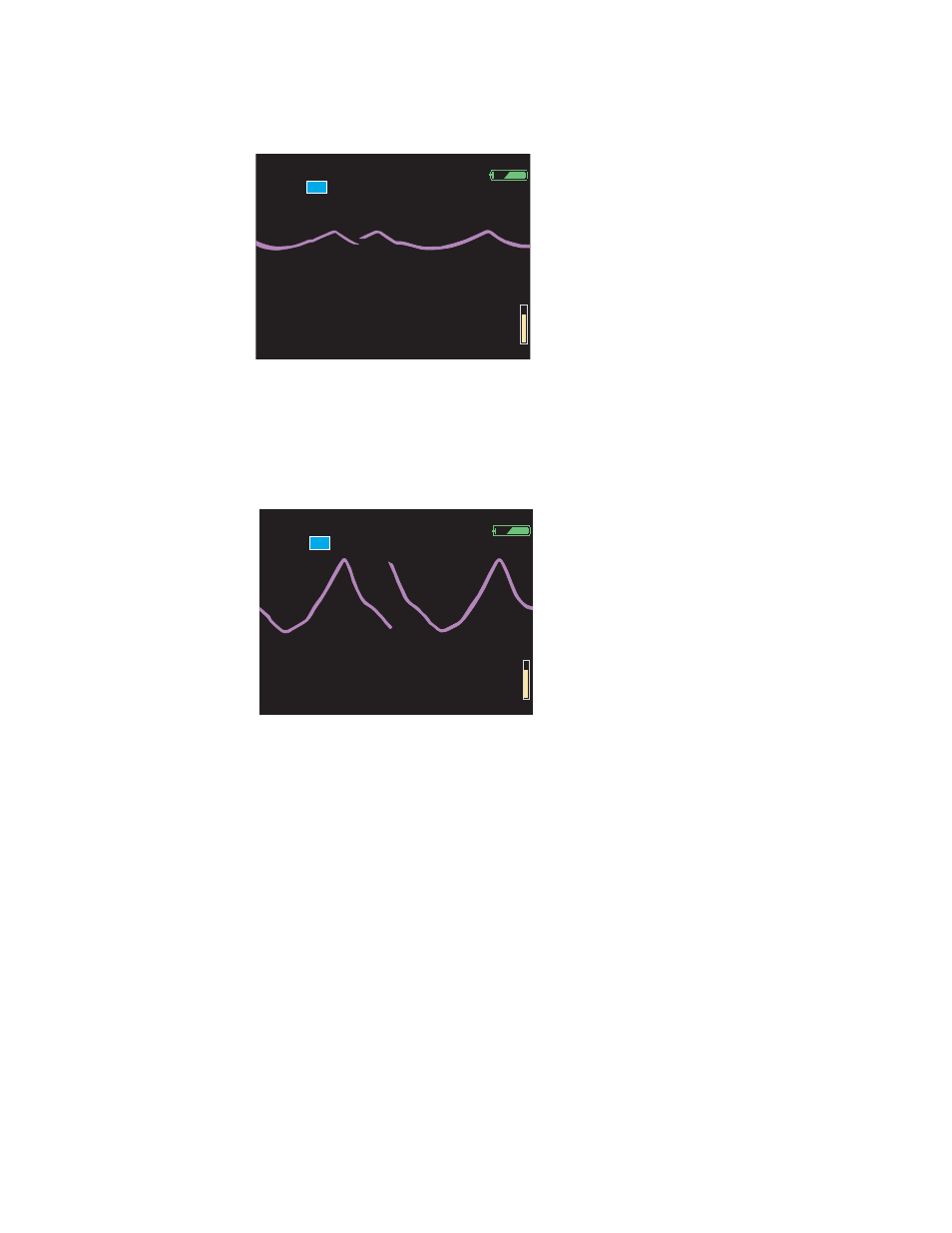

Figure 65. Resp waveform, default size (2x)
For more detail, change the waveform size to 8x. (See “To change the waveform size”
on page 56.)
Figure 66. Resp waveform enlarged for detail (8x)
Note Waveform size does not affect breath-detector sensitivity.
%
