64 Standalone monitoring Welch Allyn Propaq LT Vital Signs Monitor

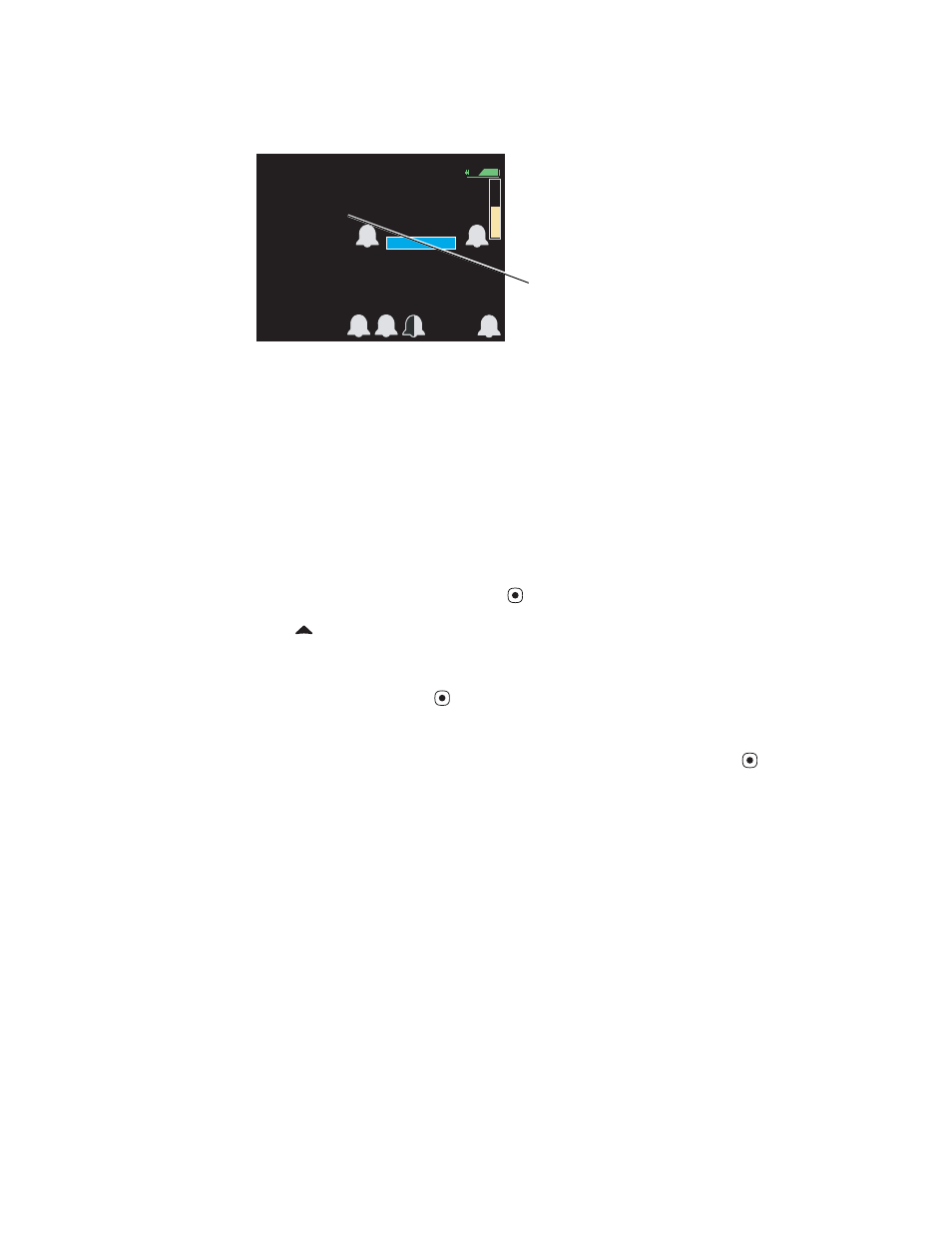

Figure 71. SpO
2
spot check: pulse rate reading
• The spot check ends, and SpO
2
monitoring is again turned off.
• The SpO
2
text on the display screen now includes the time of the most recent
SpO
2
measurement. For example: SpO2 @ 3:05P.
5. Detach the sensor from the patient.
6. To take another spot check later, repeat from step 2 (above).
To return to continuous SpO
2
measurements
1. Highlight SpO2 @ XX:XX and press .
2. Press to turn automatic SpO
2
On. The pop-up menu disappears.
To adjust the SpO
2
and ECG pulse tone volume
1. Highlight SpO2 and press .
2. Highlight HR/PR Tone.
3. Highlight the desired volume level (Off, Low, Med, or High) and press .
About the Masimo SpO
2
display
The Masimo SpO
2
option provides the following additional features and indicators.
Note Spot-check readings are included in trend displays.
78 78 98 98
HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:12:13P 3:12:13P
Adult Adult Rm 239 Rm 239
Resp/min Resp/min
PR/min PR/min SpO2 @ 3:05P SpO2 @ 3:05P
%
NIBP mmHg NIBP mmHg
S D M
Pulse rate
Note The monitor (models 802LTAS, 802LTRS and 802LT0S) must be configured
specifically to display the Masimo parameters.
Signal IQ (SIQ) (Signal Identification and Quality indicator) A horizontal line
below the SpO
2
waveform, with vertical spikes indicating
the relative reliability of the oxygen saturation readings.
(Higher spikes indicate greater reliability.)
Perfusion Index (PI) An assessment, expressed as a percentage between 0.02
and 20, of the relative pulse strength at the monitoring
site.
FastSAT

The tracking of rapid changes in arterial oxygen saturation.
Sensitivity Normal, APOD, and Maximum.
