58

Standalone monitoring

Welch Allyn Propaq LT Vital Signs Monitor

Improving the waveform display

If the power source filter is off, noise from the power source can cause an unclear or
noisy waveform.

To change the power source filter to reduce noise

1.

Access the Setup menu. (See

“To access the setup menus”

on page 37.)

2.

Highlight ECG.

Verify that the setting for Power source filter is correct for the power source in your
facility. If you do not know what this setting should be, consult a qualified service
person.

3.

Highlight Power source filter and press

or

as needed to select 60 Hz, 50 Hz,

or Off.

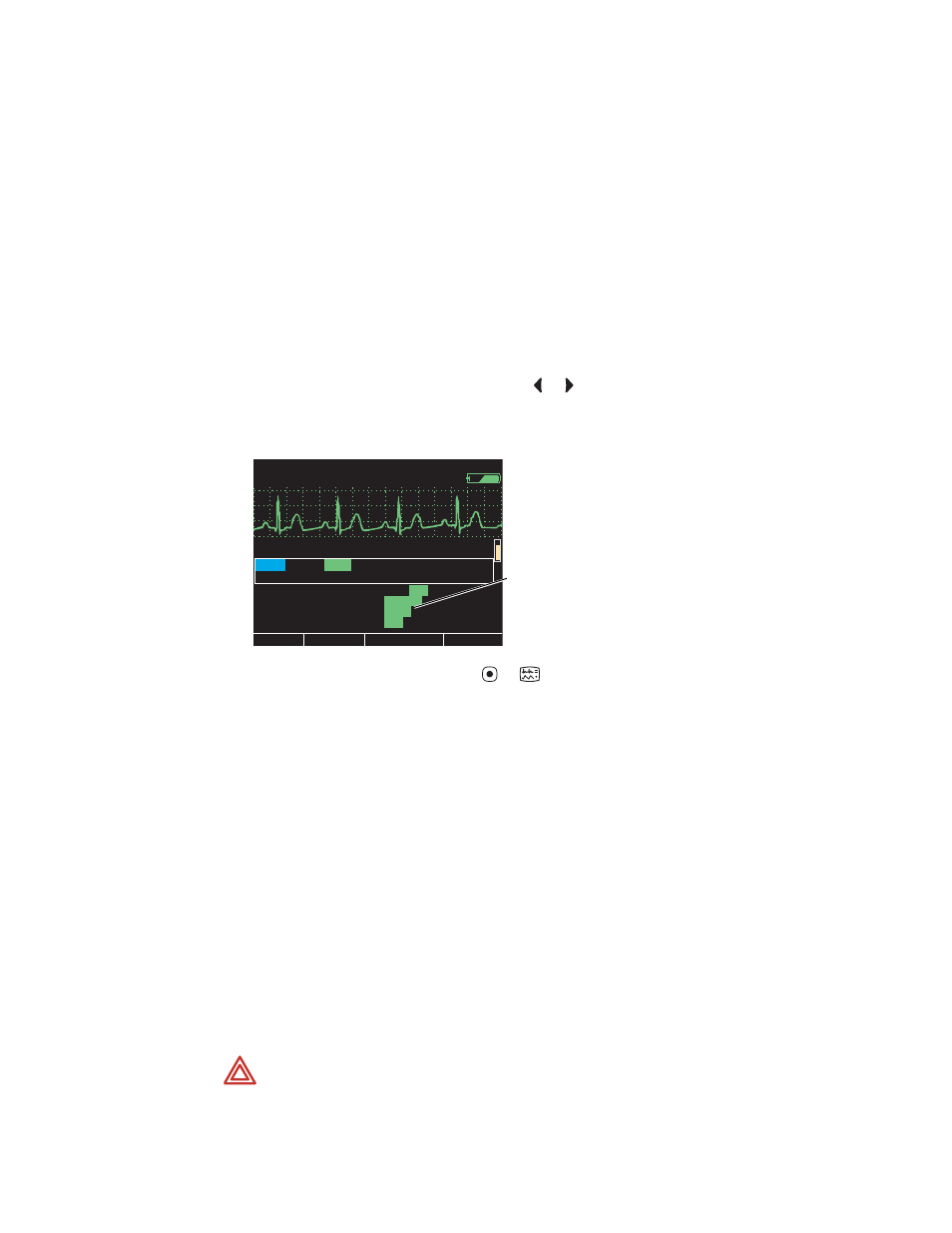

Figure 64. Turning on the 60-Hz power source filter in the ECG setup menu

4.

Exit the Setup menu by pressing

or

.

Monitoring respiration

Resp is based on impedance pneumography, where respirations are sensed from the
ECG electrodes.

Resp is part of ECG monitoring. The Resp numeric is displayed (in purple) in the lower
right corner. To view the Resp waveform:

Change the waveform source to Resp. (See

“To change the waveform selection”

on

page 55.)

II 1mV/cm

II 1mV/cm

Exit

Exit

Trends

Trends

Snapshots

Snapshots

Setup

Setup

60Hz

60Hz

50Hz

50Hz

80

80

HR/min

HR/min

140/78

140/78

NIBP mmHg (102)

NIBP mmHg (102)

Resp/min

Resp/min

SpO2

SpO2

Off

Off

On

On

Power source filter

Power source filter

Resp Monitoring

Resp Monitoring

Setup

Setup

12

12

97

97

%

%

HALL, ROBERT E.

HALL, ROBERT E.

3456187

3456187

3:00:06P

3:00:06P

Adult

Adult

Rm 239

Rm 239

Alarms

Alarms

ECG

ECG

NIBP

NIBP Timings

Timings

Off

Off

Configuration

Configuration

ECG Bandwidth

ECG Bandwidth

Pacer indicator

Pacer indicator

Monitor

Monitor

Off

Off

On

On

Extended

Extended

Service

Service

Power source filter 60 Hz

Note

All ECG cables listed for the Propaq LT monitor in the accessory list or at

www.welchallyn.com

permit respiration monitoring and electrosurgical

interference suppression.

Note

To measure Resp with Lead II selected, the LL lead must be attached to the
patient.

WARNING Use of respiration monitoring by impedance pneumography can
affect the operation of some pacemakers. If pacemaker operation is affected, turn
off respiration pneumography. (See

Figure 63

on page 57.)
