Directions for Use

Overview of monitor operation

43

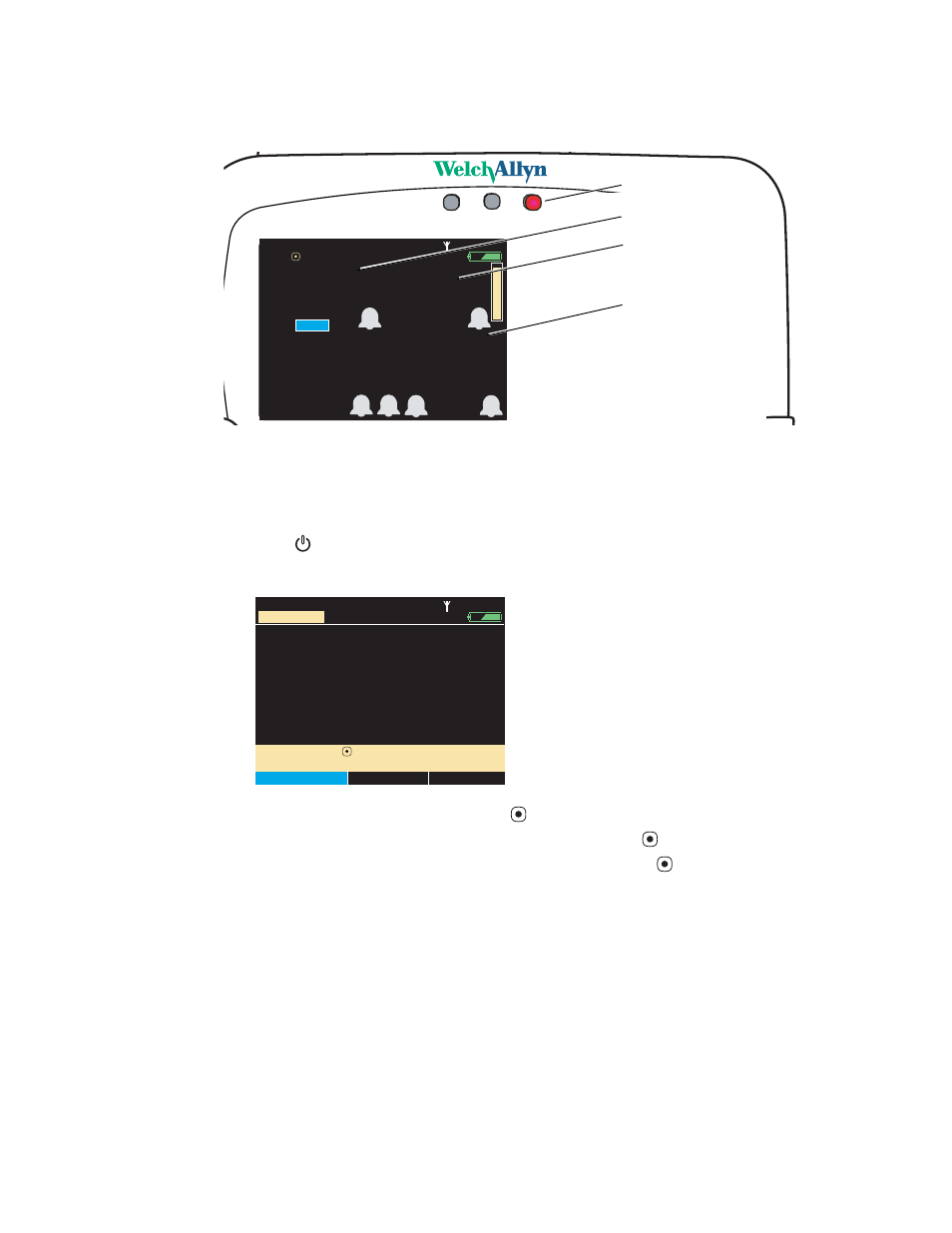

Figure 39. Demo mode high: simulated alarm condition

With the monitor simulating an alarm, you can practice responding to alarms. (See

“Responding to an alarm”

on page 85.)

To exit demo mode

Press

. The Demo Mode Power Off screen appears.

Figure 40. Demo mode power off

To shut down the monitor, press

. (No data can be saved from Demo mode.)

To resume Demo mode, highlight Cancel and press

.

To access the Setup menu, highlight Setup and press

.

140
