8

Introduction

Welch Allyn Propaq LT Vital Signs Monitor

Controls, indicators, and connectors

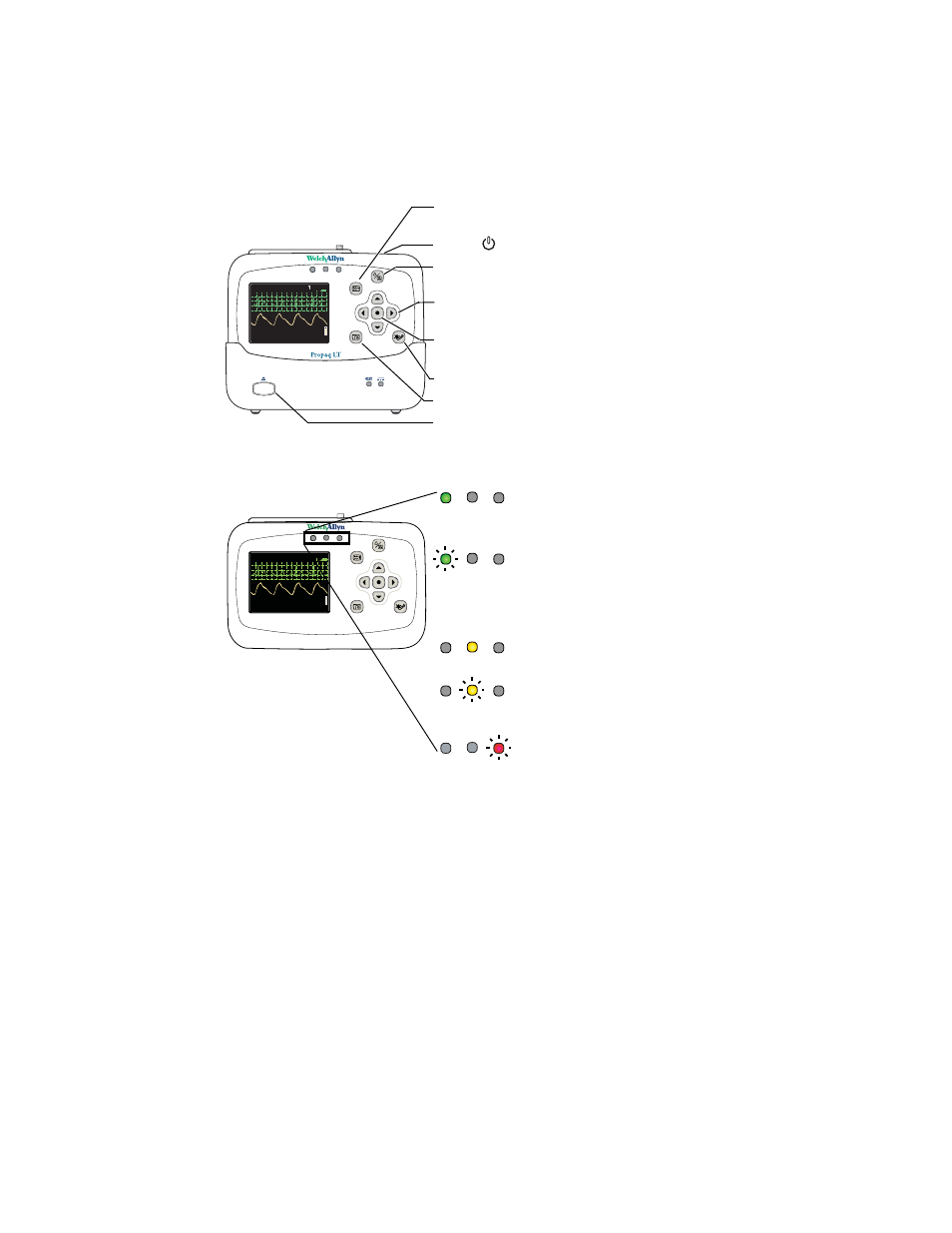

Figure 1. Controls

Figure 2. Indicators: Monitor

140

40/ 78

78

80

80

12

12

97

97%

HALL, ROBERT E.

HALL, ROBERT E.

3456187

3456187

3:00:06P

3:00:06P

Adult,

Adult,

Rm 239

Rm 239

HR/min

HR/min

NIBP mmHg (102)

NIBP mmHg (102)

@2:47P Manual

@2:47P Manual

Resp/min

Resp/min

SpO2

SpO2

SpO2

SpO2

2x

2x

II 1mV/cm

II 1mV/cm

Power

Turn the monitor power on or off.

Silence/Reset

Silence the current alarm tone for 90 seconds or reset a
silenced alarm tone.

NIBP Start/Stop

Start or stop an NIBP measurement.

Snapshot

Record 21 seconds of numeric and waveform data.

Arrows

Move the display cursor up, down, right, or left to
highlight an item; change parameter values.

Action

Act based on what is highlighted.
(See

“Using the action button”

on page 31.)

Display

Cycle to the next configured display format, or cancel
the current control, setup, or pop-up menu.

Monitor release

Release the monitor from the cradle.

140

40/ 78

78

80

80

12

12

97

97%

HALL, ROBERT E.

HALL, ROBERT E.

3456187

3456187

3:00:06P

3:00:06P

Adult,

Adult,

Rm 239

Rm 239

HR/min

HR/min

NIBP mmHg (102)

NIBP mmHg (102)

@2:47P Manual

@2:47P Manual

Resp/min

Resp/min

SpO2

SpO2

SpO2

SpO2

2x

2x

II 1mV/cm

II 1mV/cm

Propaq LT

Yellow

At least one alarm limit is disabled. (Standalone.)
Not monitoring (Wireless only, Acuity enabled).

Green

Connection to Acuity is confirmed and patient
identification is confirmed.
(Wireless only, Acuity enabled.)

Green

Monitoring normally; no active alarms or alerts.

(flashing)

(Standalone.)
Patient was confirmed and the monitor was then
intentionally disconnected.
(Wireless only, Acuity enabled.)

Yellow

Equipment alert. (Standalone.)

(flashing)

Acuity message windows.
(Wireless only, Acuity enabled.)

Red

Patient alarm.

(flashing)
