Welch Allyn 901061 Propaq LT Vital Signs Monitor - User Manual User Manual
Page 6
2
Introduction
Welch Allyn Propaq LT Vital Signs Monitor

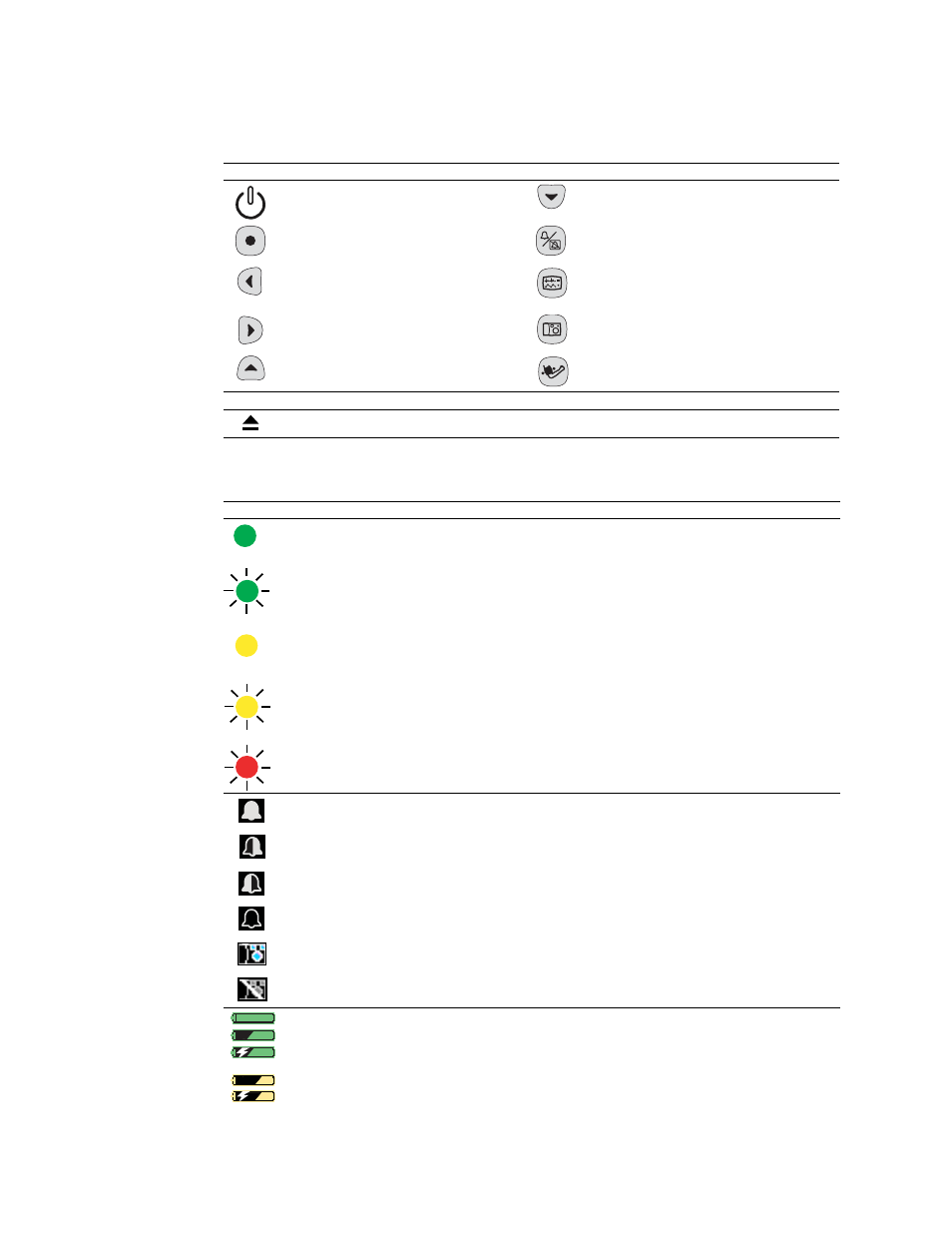

Table 2. Control buttons
Monitor
Power - Turn the monitor power on or off.
Down - Move the cursor down to the next display
item.
Action - Act based on what is highlighted.
(See
Silence/Reset - Silence the current alarm tone
for 90 seconds or reset a silenced alarm tone.
Left - Move the cursor left to the next display
item; decrease the parameter value.
Display - Cycle to the next configured display
format, or cancel the current control, setup, or
pop-up menu.
Right - Move the cursor right to the next
display item; increase the parameter value.
Snapshot - Record a 21
-
second period of numeric
and waveform data.
Up - Move the cursor up to the next display
item.
Start/Stop NIBP - Start or stop an NIBP
measurement.
Cradle
Monitor Release - Press and then hold while removing the monitor from the cradle.
Table 3. Status indicators
Monitor
(green) Monitoring normally (no active alarms or alerts).
Connection to Acuity is confirmed and patient identification is confirmed. (Wireless only, Acuity enabled.)
(green flashing) Monitoring normally (no active alarms or alerts). (Standalone only.)
Patient confirmed, and monitor then intentionally disconnected. (Wireless only, Acuity enabled.)
(yellow) At least one alarm is disabled.
Monitor disconnected, connecting or connected; patient not confirmed. (Wireless only, Acuity enabled.)
(yellow flashing) Equipment alert.
Acuity message windows. (Wireless only, Acuity enabled.)
(red flashing) Patient alarm.
Upper and lower alarm limits for this parameter are on.
The upper alarm limit for this parameter is on and the lower is off.
The upper alarm limit for this parameter is off and the lower is on.
Upper and lower alarm limits for this parameter are off.
A snapshot exists for this period.
The snapshot for this period has been replaced with a more recent snapshot.
(green) The battery is fully charged.
The battery is partially full.
The battery is partially full and is charging.
(yellow) The battery is low.
The battery is low and is charging.
