Overview of monitor operation

Welch Allyn Propaq LT Vital Signs Monitor

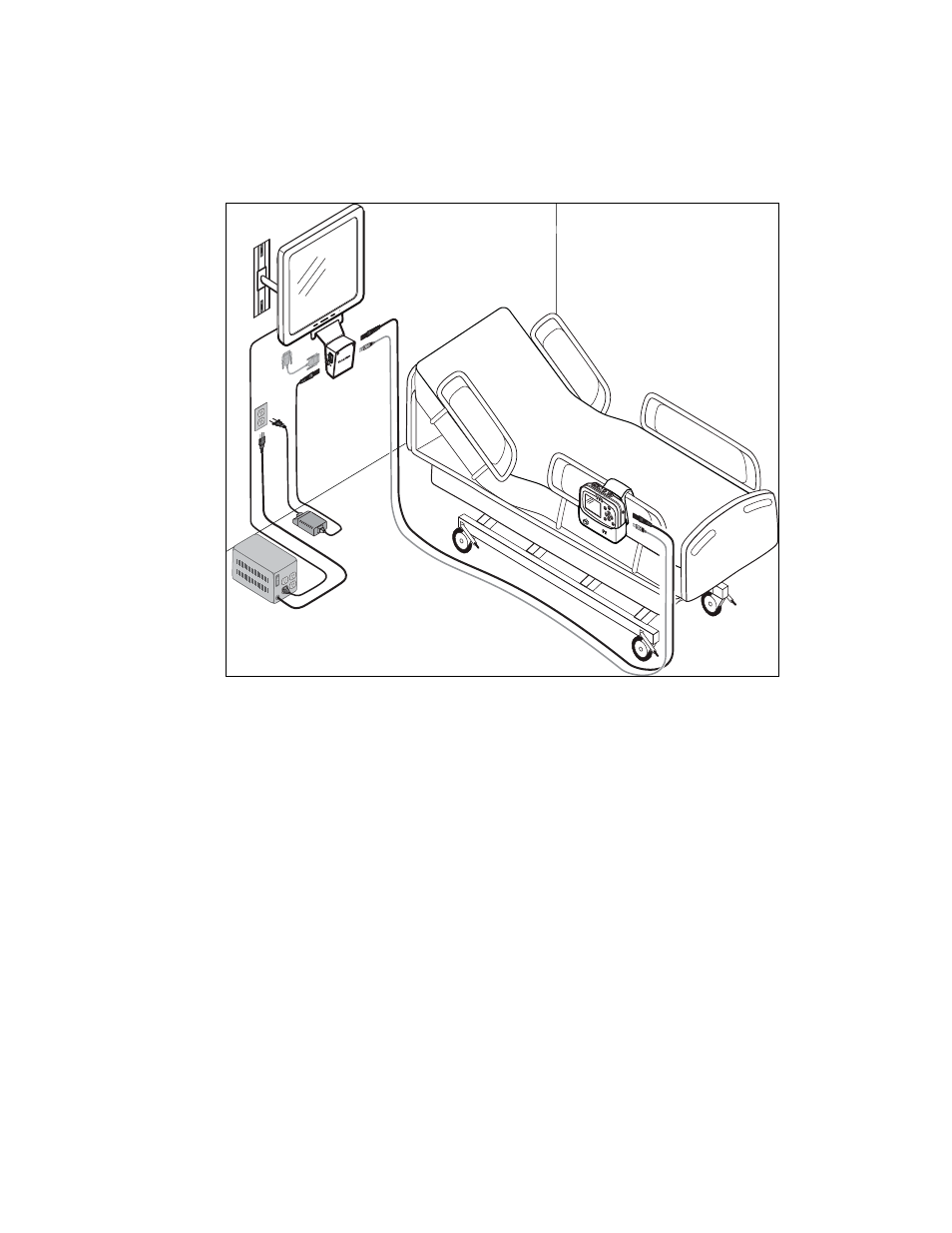

Figure 15. Interface box mounted on the large screen

Note

If the interface box is attached to the cradle, the bed rail hook cannot be used.

Interface box mounted on
the large screen

Power conditioner
