Directions for Use Standalone monitoring 55

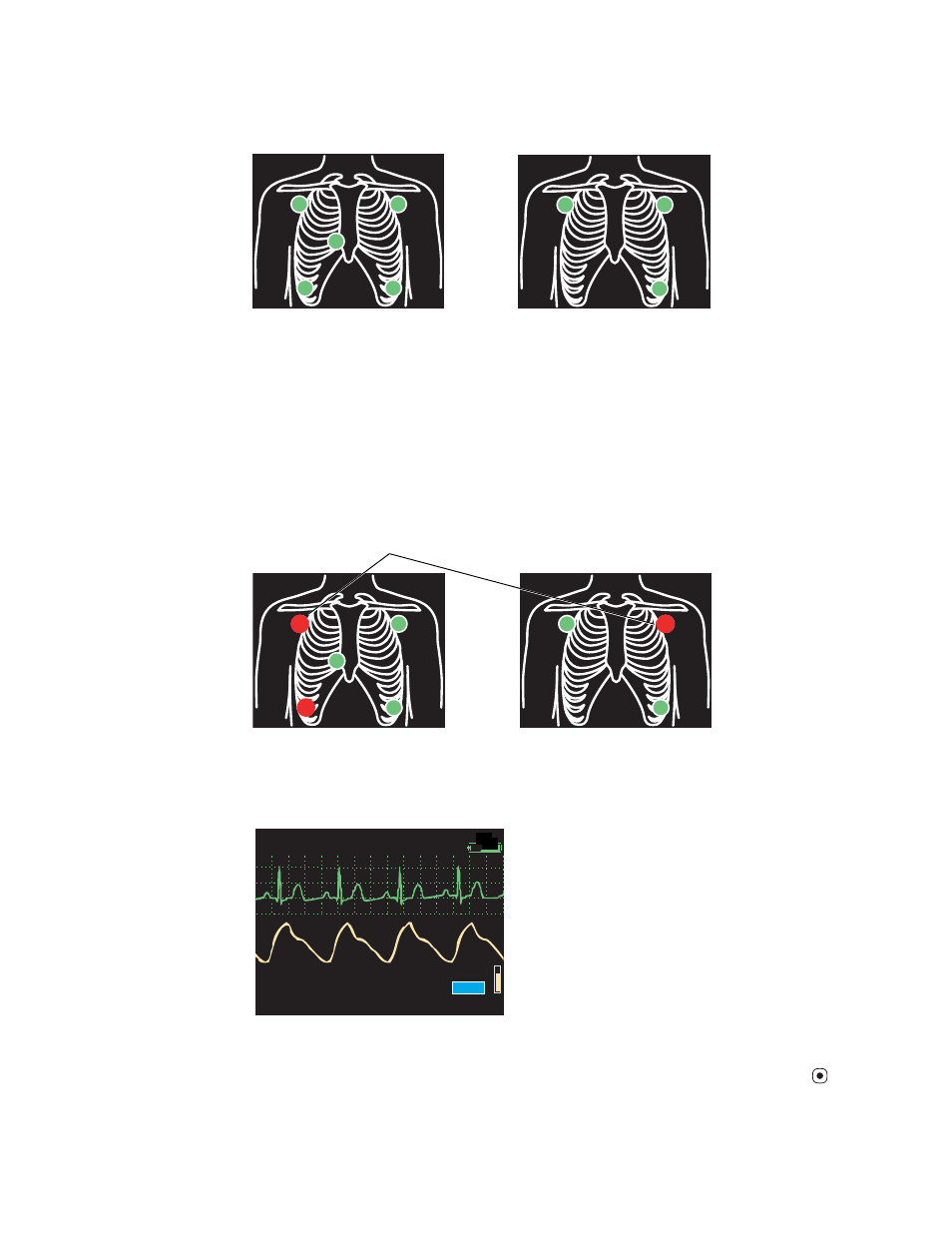

Figure 57. ECG leads - placement displays, 5-lead and 3-lead
The locations of the circles displayed on the monitor ( Figure 57 ) for each lead are
fixed, and do not indicate the exact placement of the electrodes on the patient.
If the monitor detects that some lead wires are not connected, it displays an “ECG
Fault” equipment alert and a chest diagram indicating the location of the
disconnected lead or leads. If the disconnected lead(s) invalidate the Lead used for
HR determination, then the monitor reassigns, if possible, the Lead used for HR. If
the reassignment succeeds, the monitor then displays another equipment alert with
the message “ECG Lead changed”.
Figure 58. ECG leads - disconnected leads
9. When all leads are properly connected, confirm that the monitor displays the ECG
waveform, heart rate, and other patient data.
Figure 59. All vital signs displayed
To change the waveform selection
1. Highlight the current waveform source selection (Lead II, for example) and press .
X
X
X
Disconnected leads
140/78 140/78 80 80 12 12 97 97 %
HALL, ROBERT E. HALL, ROBERT E. 3456187 3456187 3:00:06P 3:00:06P
Adult Adult Rm 239 Rm 239
HR/min HR/min NIBP mmHg (102) NIBP mmHg (102)
@2:47P Manual @2:47P Manual
Resp/min Resp/min SpO2 SpO2
SpO2 SpO2 2x 2x
II 1mV/cm II 1mV/cm
