• Inputs and Outputs
119
Publication 1398-PM601A-EN-P — October 2000
TUTORIAL
Monitor I/O Status
Display the I/O Status Monitor by selecting the Inputs/Outputs menu item from the Monitor menu. Dis-
play the Run Control dialog box and arrange these two dialogs so you can see both of them on your
screen. To move a dialog, click in the title bar, hold down the mouse button and drag the window to
where you want it. To use the keyboard, press ALT+F6 to select which window you wish to move, press
ALT+Space and select Move. Use the arrow keys to move the window. When the window is where you

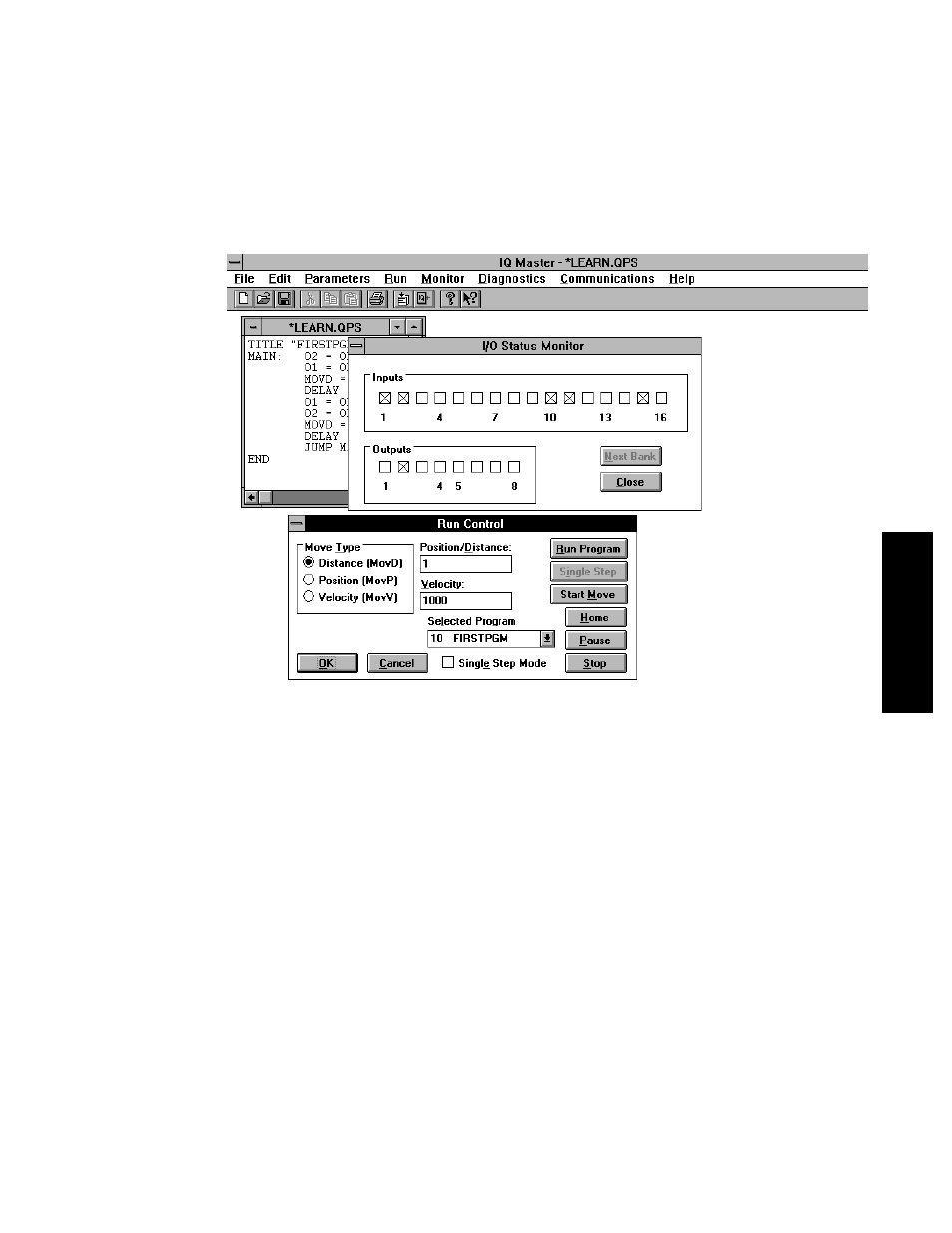

want it, press Enter. Your screen should look something like this:
Select program ten and select the Run Program button from the Run Control dialog box. The program
should turn O2 off and O1 on, move the motor forward ten revolutions, wait for half a second, turn O1
off and O2 on, move backward ten revolutions, wait for half a second and jump back to the beginning
and repeat until the program is stopped. While the program is running, the O1 and O2 check boxes in
the I/O Status Monitor should change state. Select the Stop button to stop the program.
