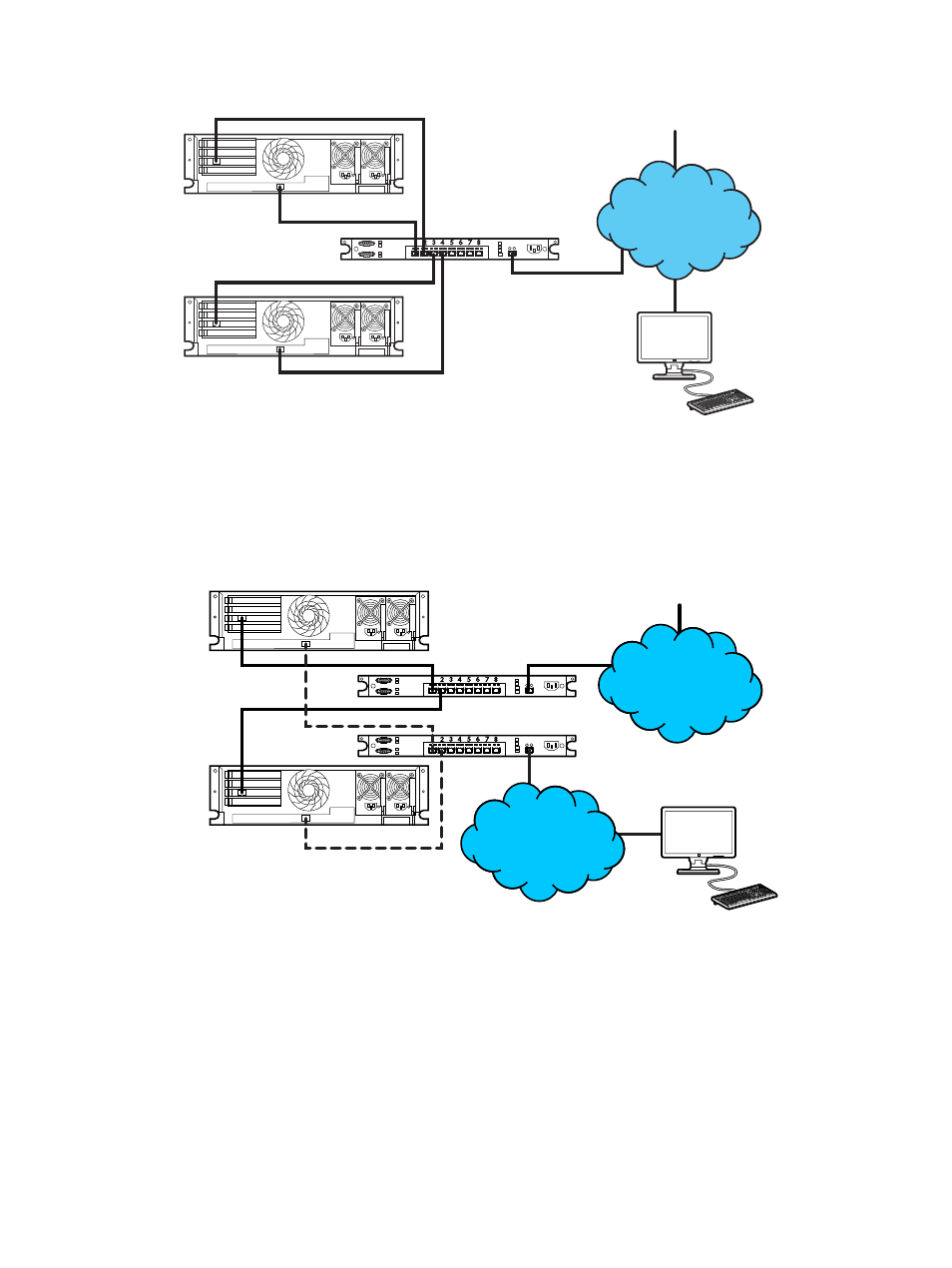

Figure 1 Corporate network diagram
Main NIC
iLO
Main NIC
Hub/Switch
Client PCs
Corporate
Network
Management Client
iLO
•
In a dedicated management network, the iLO port is on a separate network, as shown in
Figure 2 (page 20) .
Figure 2 Dedicated management network diagram
Hub/Switch
Main NIC
iLO
iLO
Main NIC
Hub/Switch
Client PCs
Corporate
Network
Dedicated
iLO Management
Network
Management Client
Setting up iLO by using iLO RBSU or the iLO 4 Configuration Utility
HP recommends using iLO RBSU or the iLO 4 Configuration Utility to set up iLO for the first time
and to configure iLO network parameters for environments that do not use DHCP, DNS, or WINS.
To determine whether your server supports iLO RBSU or the iLO 4 Configuration Utility, see your
server documentation.
Configuring a static IP address by using iLO RBSU
This procedure is required only if you are using a static IP address. When you are using dynamic
IP addressing, your DHCP server automatically assigns an IP address for iLO.
