Sierra M124 SAS/SATA Protocol Analyzer User Manual

SAS/SATA Software Menus and Toolbars

Teledyne LeCroy

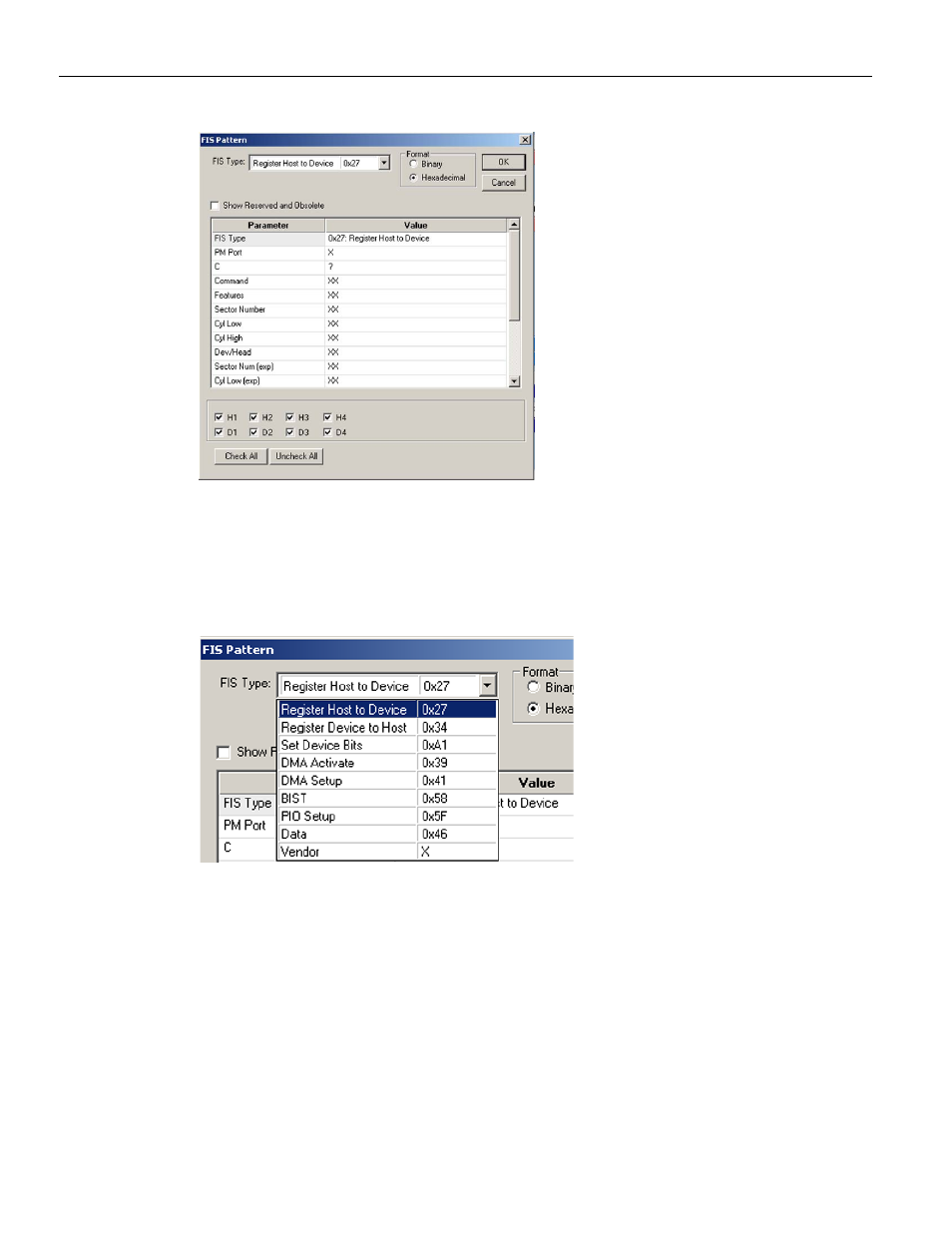

Figure 2.62: SATA: FIS Pattern Dialog

SAS vs. SATA: Not available in SAS.

The FIS Pattern dialog opens with the default FIS Type as Register Host to device. To
choose another available FIS Type, click the down arrow next to the FIS Type list box.

SATA: FIS Pattern Dialog Choices

SAS vs. SATA: Not available in SAS.

Choose a FIS Type and complete the corresponding dialog.
