Sierra M124 SAS/SATA Protocol Analyzer User Manual 369
Display Options Teledyne LeCroy
Hiding Display Options
By default, no data is hidden. You can hide any group of data and any type of data.
To hide one or more fields, select the Group and Data type in the Group and Color
column, then click the Hidden checkbox in the display or the Hidden checkbox in the
Hiding section of the Format section.
Level Hiding Options
By default, nothing is hidden. You can hide:
 Packet Types
 Primitives
 Source Addresses
 Destination Addresses
 Data Length
 SMP Frames
 SSP Frames
 Channels
 FIS Types
 FIS Ports
 Gen Global Settings
Select the Level Hiding tab, then select the data types to hide.

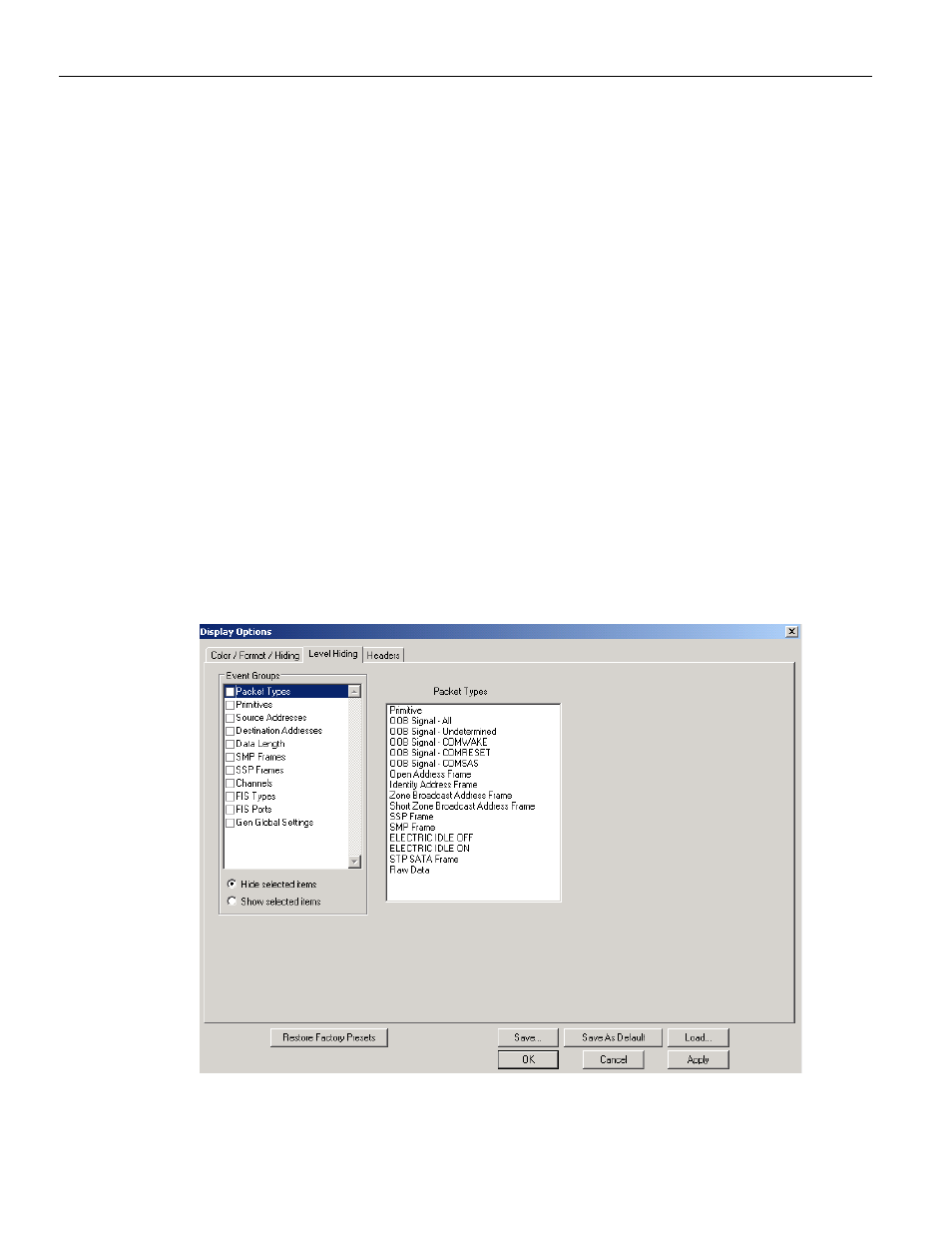

Figure 5.31: Level Hiding Tab
You can select to Hide selected items or Show selected items.
